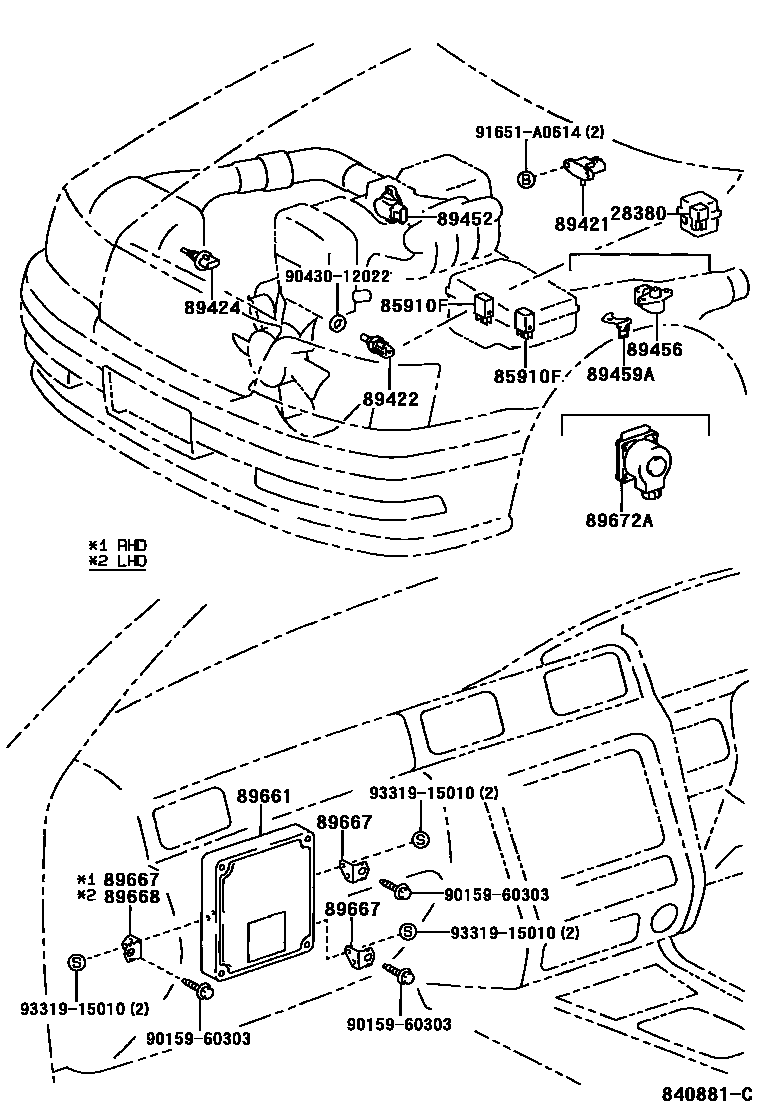

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

28380RELAY ASSY, FUEL PUMP

main90987-03003i2JZGE..JZS155199707

85910FRELAY, COMPUTER (FOR EFI)

main90987-02012iGS151,JZS155199512

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89420-22200iGS151199707-199808

main89421-30100iJZS155199512

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iGS151,JZS155199512

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iGS151,JZS155199512

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-22090iGS151199707-199808

main89452-30150iJZS155..RHD199707-199908

89456RESISTOR, VARIABLE

main89456-30010iJZS155..SED199512-199909

89459ABRACKET, VARIABLE RESISTOR

main89459-30030iJZS155..LHD199512-199909

89661COMPUTER, ENGINE CONTROL

main89661-3A130iJZS155..RHD199512-199707

main89661-3A150iJZS155..LHD..4FC199512-199707

main89661-3A160iJZS155..5F199512

main89661-3A330iJZS155..RHD..SED199707-199710

main89661-3A360iJZS155..4FC..SED199707-199909

LEADED GASOLINE SPEC

main89661-3A480iJZS155..RHD..SED199710

main89661-3A510iGS151199707-199808

main89661-3A530iJZS155..HT199709

main89666-30060iJZS155..LHD..4FC..GEN199908

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-30200iJZS155..RHD199512-199707

main89667-30220iGS151199707-199808

main89667-30260iJZS155..LHD..4FC..GEN199908

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-30170iJZS155..LHD199512-199609

main89668-30170iGS151;JZS155..SED199609-199909

LEADED GASOLINE SPEC

main89668-30180iJZS155..RHD199707-199909

main89668-30220iJZS155199909

89672AMOTOR, THROTTLE CONTROL

main89672-30020iJZS155..RHD199707-199908

9015960303

main90159-60303

9043012022

main90430-12022

91651A0614

main91651-A0614

9331915010

main93319-15010

16 parts on this diagram · 2 diagrams in section
