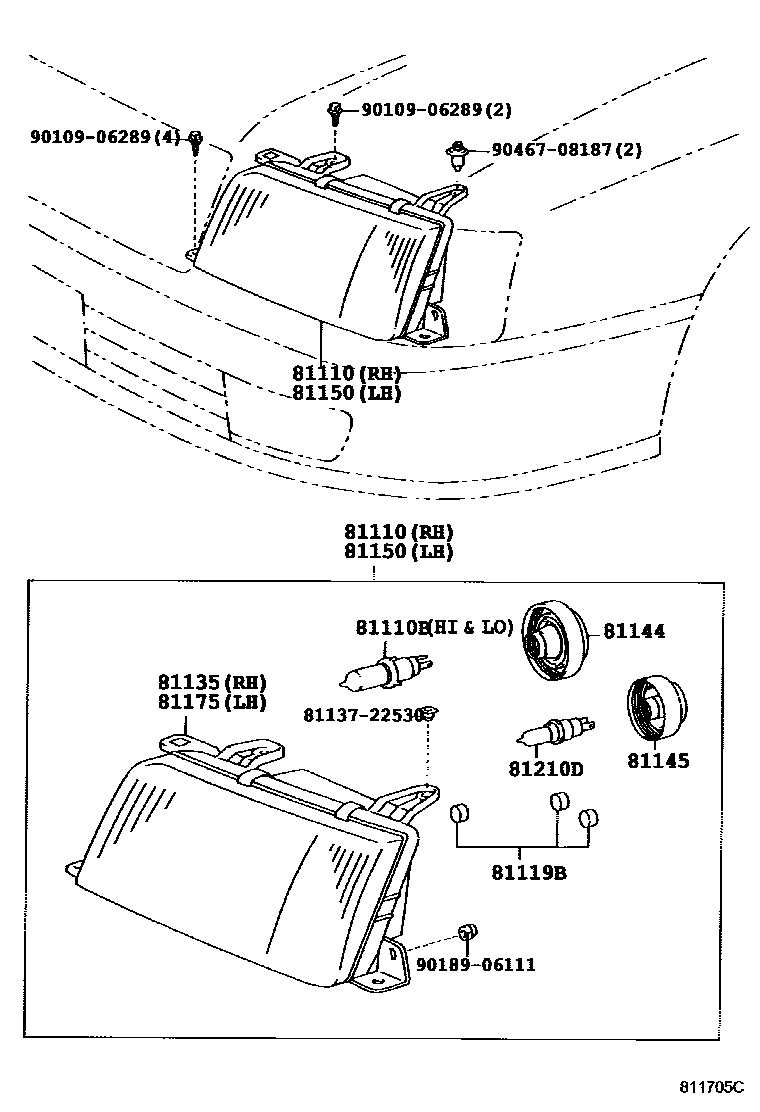

HEADLAMP

0001 1 0002 1

81110HEADLAMP ASSY, RH

main81110-30730iJZS155..RHD199512-199707

WHITE,LH TRAFFIC SPEC

main81110-30740iJZS155..LHD199512

WHITE

main81110-30850iJZS155..LHD..4FC..GEN;JZS155..5F..SPSAL..GEN199512-199712

YELLOW

main81110-3A420iGS151,JZS155..HT199707-199909

main81110-3A470iJZS155..RHD..SED199707

WHITE,LH TRAFFIC SPEC

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81040×2iGS151,JZS155..HT199707-199909

12V 51W

sub90981-13047

main90981-13016×2iJZS155..LHD..4FC..GEN;JZS155..5F..SPSAL..GEN199512-199712

12V 60/55W,*HAL *YE

sub90981-13H01

main90981-22004×2iJZS155..SED199512

12V 60/55W,*HAL *WH

sub90981-13055

81119BFILTER, HEADLAMP

main81119-30730×2iJZS155..4FC..GEN..SED;JZS155..5F..SPSAL..GEN199512

81135UNIT ASSY, HEADLAMP, RH

main81130-30730iJZS155..LHD..4FC..GEN;JZS155..5F..SPSAL..GEN199512-199707

LH TRAFFIC SPEC

main81130-30850iJZS155..LHD199512

main81130-3A420iGS151,JZS155..HT199707-199909

main81130-3A470iJZS155..RHD..SED199707

LH TRAFFIC SPEC

81144COVER, HEADLAMP, NO.1

main90075-65002×2iJZS155..SED199512

81145COVER, HEADLAMP, NO.2

main90075-65003×2iJZS155..4FC..GEN..SED;JZS155..5F..SPSAL..GEN199512

81150HEADLAMP ASSY, LH

main81150-3A380iJZS155..RHD199512-199707

WHITE,LH TRAFFIC SPEC

main81150-3A390iJZS155..LHD199512

WHITE

main81150-3A410iJZS155..LHD..4FC..GEN;JZS155..5F..SPSAL..GEN199512-199712

YELLOW

main81150-3A540iGS151,JZS155..HT199707-199909

main81150-3A590iJZS155..RHD..SED199707

WHITE,LH TRAFFIC SPEC

81175UNIT ASSY, HEADLAMP, LH

main81170-3A380iJZS155..LHD..4FC..GEN;JZS155..5F..SPSAL..GEN199512-199707

LH TRAFFIC SPEC

main81170-3A410iJZS155..LHD199512

main81170-3A540iGS151,JZS155..HT199707-199909

main81170-3A590iJZS155..RHD..SED199707

LH TRAFFIC SPEC

81210DBULB, FOG LAMP

main90981-13018×2iJZS155..LHD199512

12V 55W,HALOGEN

main90981-13027×2iJZS155..GEN..SED199707

12V 55W,HALOGEN,WHITE

main90981-13070×2iJZS155..RHD199512-199707

12V 55W,HALOGEN

sub90981-13039

8113722530PROTECTOR, HEADLAMP, NO.2 RH

main81137-22530

9010906289

main90109-06289

9018906111

main90189-06111

9046708187

main90467-08187

13 parts on this diagram · 2 diagrams in section
