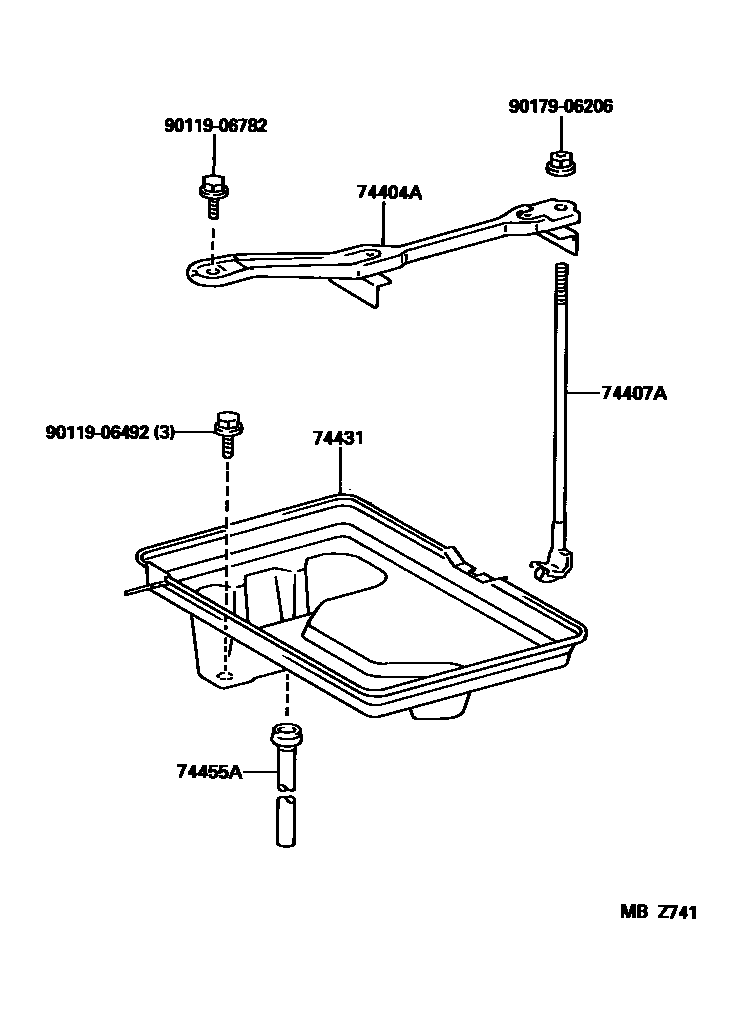

BATTERY CARRIER

74404ACLAMP SUB-ASSY, BATTERY

main74404-30250iGS151,JZS155199512

74407ABOLT SUB-ASSY, BATTERY CLAMP

main74407-22060iGS151,JZS155199512

74431TRAY, BATTERY

main74431-30120iJZS155199512-199705

sub74431-30121

main74431-30121iGS151,JZS155199705

74455AHOSE, BATTERY DRAIN

main74455-30020iGS151,JZS155199512

9011906492

main90119-06492

9011906782

main90119-06782

9017906206

main90179-06206

7 parts on this diagram · 1 diagram in section
