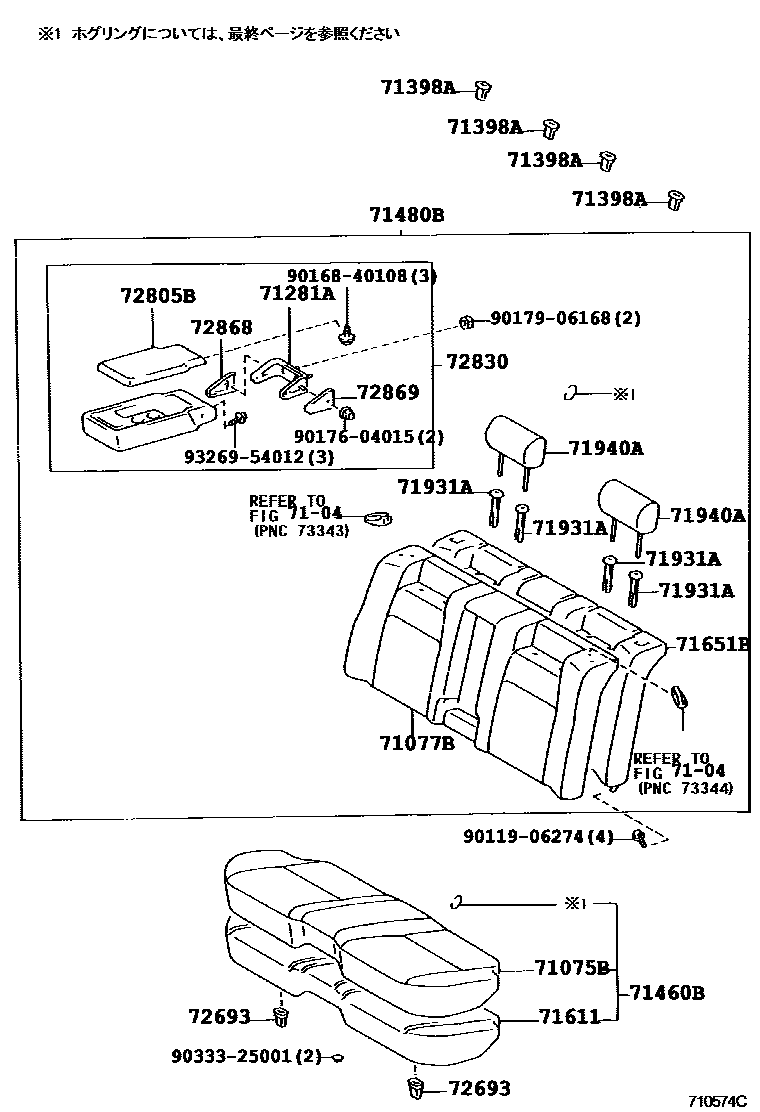

REAR SEAT & SEAT TRACK

0001 1 0002 1REAR POWER SEAT 0003 1CLIP

7104

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-3A070-B1iGS151199707-199808

DK.BLUE GRAY,TRIM1#

sub71075-3A070

main71075-3A070-E1iGS151199707-199808

ANTELOPE,TRIM4#

sub71075-3A070

main71075-3A130-B4iJZS155..LHD..ROY199512-199707

DK.BLUE GRAY,TRIM1#

main71075-3A130-E4iJZS155..LHD..ROY199512-199707

ANTELOPE,TRIM4#

main71075-3A140-B3iJZS155..SPSAL199512-199707

DK.BLUE GRAY,TRIM1#

sub71075-3A140

main71075-3A140-B4iJZS155..SPSAL199707-200108

DK. BLUE GRAY,TRIM1#

sub71075-3A140

main71075-3A140-E3iJZS155..SPSAL199512-199707

ANTELOPE,TRIM4#

sub71075-3A140

main71075-3A140-E4iJZS155..SPSAL199707-200108

ANTELOPE,TRIM4#

sub71075-3A140

main71075-3A230-B0iJZS155..HT199707-199909

DK. BLUE GRAY,TRIM1#

main71075-3A230-E0iJZS155..HT199707-199909

ANTELOPE,TRIM4#

main71075-3A280-B0iJZS155..LHD..ROY199707-199909

DK. BLUE GRAY,TRIM1#

main71075-3A280-E0iJZS155..LHD..ROY199707-199909

ANTELOPE,TRIM4#

71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)

main71077-3F150-B1iGS151199707-199808

DK.BLUE GRAY,TRIM1#

sub71077-3F150

main71077-3F150-E1iGS151199707-199808

ANTELOPE,TRIM4#

sub71077-3F150

main71077-3F200-B4iJZS155..LHD..ROY199512-199707

DK.BLUE GRAY,TRIM1#

main71077-3F200-E4iJZS155..LHD..ROY199512-199707

ANTELOPE,TRIM4#

main71077-3F210-B3iJZS155..SPSAL199512-199707

DK.BLUE GRAY,TRIM1#

sub71077-3F210

main71077-3F210-B4iJZS155..SPSAL199707-200108

DK. BLUE GRAY,TRIM1#

sub71077-3F210

main71077-3F210-E3iJZS155..SPSAL199512-199707

ANTELOPE,TRIM4#

sub71077-3F210

main71077-3F210-E4iJZS155..SPSAL199707-200108

ANTELOPE,TRIM4#

sub71077-3F210

main71077-3F310-B0iJZS155..HT199707-199909

DK. BLUE GRAY,TRIM1#

main71077-3F310-E0iJZS155..HT199707-199909

ANTELOPE,TRIM4#

main71077-3F360-B0iJZS155..LHD..ROY199707-199909

DK.BLUE GRAY,TRIM1#

main71077-3F360-E0iJZS155..LHD..ROY199707-199909

ANTELOPE,TRIM4#

71281AHINGE, REAR SEAT CENTER ARMREST

main71281-30030iGS151,JZS155199512

71398AHOLDER, REAR SEATBACK

main71398-30010iJZS155..LHD;GS151,JZS155..HT199512-199904

71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

main71460-3A320-B1iGS151199707-199808

***,DK.BLUE GRAY,TRIM1#

sub71460-3A320

main71460-3A320-E1iGS151199707-199808

***,ANTELOPE,TRIM4#

sub71460-3A320

main71460-3A380-B3iJZS155..SPSAL199512-199707

***,DK.BLUE GRAY,TRIM1#

sub71460-3A380

main71460-3A380-B4iJZS155..SPSAL199707-200108

***,DK. BLUE GRAY,TRIM1#

sub71460-3A380

main71460-3A380-E3iJZS155..SPSAL199512-199707

***,ANTELOPE,TRIM4#

sub71460-3A380

main71460-3A380-E4iJZS155..SPSAL199707-200108

***,ANTELOPE,TRIM4#

sub71460-3A380

main71460-3A400-B4iJZS155..LHD..ROY199512-199707

***,DK.BLUE GRAY,TRIM1#

main71460-3A400-E4iJZS155..LHD..ROY199512-199707

***,ANTELOPE,TRIM4#

main71460-3A490-B0iJZS155..HT199707-199909

***,DK. BLUE GRAY,TRIM1#

main71460-3A490-E0iJZS155..HT199707-199909

***,ANTELOPE,TRIM4#

main71460-3A530-B0iJZS155..ROY..GCC199707-199909

***,DK. BLUE GRAY,TRIM1#

main71460-3A530-E0iJZS155..ROY..GCC199707-199909

***,ANTELOPE,TRIM4#

71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)

main71480-3F430-B2iJZS155..SPSAL199512-199707

***,DK.BLUE GRAY,TRIM1#

main71480-3F430-E2iJZS155..SPSAL199512-199707

***,ANTELOPE,TRIM4#

main71480-3F450-B4iJZS155..LHD..ROY199512-199707

***,DK.BLUE GRAY,TRIM1#

main71480-3F450-E4iJZS155..LHD..ROY199512-199707

***,ANTELOPE,TRIM4#

main71480-3F540-B0iJZS155..HT199707-199909

***,DK. BLUE GRAY,TRIM1#

main71480-3F540-E0iJZS155..HT199707-199909

***,ANTELOPE,TRIM4#

main71480-3F560-B0iGS151199707-199808

***,DK. BLUE GRAY,TRIM1#

main71480-3F560-E0iGS151199707-199808

***,ANTELOPE,TRIM4#

main71480-3F600-B0iJZS155..SPSAL199707-200108

***,DK. BLUE GRAY,TRIM1#

main71480-3F600-E0iJZS155..SPSAL199707-200108

***,ANTELOPE,TRIM4#

main71480-3F610-B0iJZS155..LHD..ROY199707-199909

***,DK. BLUE GRAY,TRIM1#

main71480-3F610-E0iJZS155..ROY..GCC199707-199909

***,ANTELOPE,TRIM4#

71611PAD, REAR SEAT CUSHION

main71503-30020iGS151,JZS155..HT199707

main71503-30050iJZS155..LHD199512-199904

71651BPAD, REAR SEATBACK(FOR BENCH TYPE)

main71507-30130iGS151,JZS155..HT199707

main71507-30140iJZS155..LHD199512-199904

71931ASUPPORT, REAR SEAT HEADREST

main71930-12070-E0iGS151199512-200108

W(LOCK),QUARTZ,TRIM4#

sub71930-12070

sub71930-10070

main71930-12070-E0iJZS155..HT199707-199909

W(LOCK),QUARTZ,TRIM4#,RH

sub71930-12070

sub71930-10070

main71930-12070-P6iJZS155..ROY199512-200108

W(LOCK),BLUE GRAY,TRIM1#

sub71930-12070

sub71930-10070

main71931-12040-E0iGS151199512-200108

W/O(LOCK),QUARTZ,TRIM4#

sub71931-12040

sub71931-10020

main71931-12040-P6iJZS155199512-200108

W/O(LOCK),BLUE GRAY,TRIM1#

sub71931-12040

sub71931-10020

71940AHEADREST ASSY, REAR SEAT

main71940-30500-B0iJZS155..ROY199512-199707

BLUE GRAY,TRIM1#

main71940-30500-E0iJZS155..ROY199512-199707

QUARTZ,TRIM4#

main71940-30630-B0iJZS155..SPSAL199512-199707

BLUE GRAY,TRIM1#

main71940-30630-E0iJZS155..SPSAL199512-199707

QUARTZ,TRIM4#

main71940-30670-E1iJZS155..LHD..ROY199512-200108

W(LEATHER SEAT)-*104,QUARTZ,TRIM4#

main71940-30720-B0iGS151,JZS155..ROYEX,SPSAL199707-200108

BLUE GRAY,TRIM1#

main71940-30720-E0iGS151,JZS155..ROYEX,SPSAL199707-200108

QUARTZ,TRIM4#

main71940-30730-B0iJZS155..ROY199707-200108

W(REAR POWER SEAT),BLUE GRAY,TRIM1#

main71940-30730-B0iJZS155..HT;JZS155..ROY..GCC199707-199909

BLUE GRAY,TRIM1#

main71940-30730-E0iJZS155..HT;JZS155..ROY..GCC199707-199909

QUARTZ,TRIM4#

main71940-30730-E0iJZS155..ROY199707-200108

W(REAR POWER SEAT),QUARTZ,TRIM4#

72693HOOK, REAR SEAT CUSHION LOCK

main72693-14050iJZS155..RHD199512

W(REAR POWER SEAT)

main72693-30040iJZS155..GCC;JZS155..SPSAL..GEN199512-199904

72805BDOOR SUB-ASSY, REAR SEAT CENTER ARMREST

main72805-30070-B0iJZS155..LHD..ROY199512-199707

W(REAR POWER SEAT),BLUE GRAY,TRIM1#

main72805-30070-B0iJZS155..RHD199512-199707

BLUE GRAY,TRIM1#

main72805-30070-E0iJZS155..LHD..ROY199512-199707

QUARTZ,TRIM4#

main72805-30070-E0iJZS155..RHD199512-199707

W(REAR POWER SEAT),QUARTZ,TRIM4#

main72805-30080-B0iJZS155..LHD..ROY199512-199707

BLUE GRAY,TRIM1#

main72805-30080-E0iJZS155..LHD..ROY199512-199707

QUARTZ,TRIM4#

main72805-30090-B0iJZS155..SPSAL199512

BLUE GRAY,TRIM1#

main72805-30090-E0iJZS155..SPSAL199512

QUARTZ,TRIM4#

main72805-30100-E1iJZS155..LHD..ROY199512

W(REAR POWER SEAT & LEATHER SEAT)-*104,QUARTZ,TRIM4#

main72805-30170-B0iJZS155..ROY199707

W(REAR POWER SEAT),BLUE GRAY,TRIM1#

main72805-30170-E0iJZS155..ROY199707

W(REAR POWER SEAT),QUARTZ,TRIM4#

main72805-30180-B0iJZS155..HT;JZS155..ROY..GCC199707-199909

BLUE GRAY,TRIM1#

main72805-30180-E0iJZS155..HT;JZS155..LHD..ROY199707-199909

QUARTZ,TRIM4#

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-30700-B0iGS151199707-199808

BLUE GRAY,TRIM1#

main72830-30700-E0iGS151199707-199808

QUARTZ,TRIM4#

main72830-30740-B0iJZS155..LHD..ROY199512-199707

BLUE GRAY,TRIM1#

main72830-30740-B0iJZS155..LHD..ROY199512-199707

W(REAR POWER SEAT),BLUE GRAY,TRIM1#

main72830-30740-E0iJZS155..RHD199512-199707

QUARTZ,TRIM4#

main72830-30740-E0iJZS155..RHD199512-199707

W(REAR POWER SEAT),QUARTZ,TRIM4#

main72830-30760-B0iJZS155..LHD..ROY199512-199707

BLUE GRAY,TRIM1#

main72830-30760-E0iJZS155..LHD..ROY199512-199707

QUARTZ,TRIM4#

main72830-30770-B0iJZS155..SPSAL199512-199707

BLUE GRAY,TRIM1#

main72830-30770-E0iJZS155..SPSAL199512-199707

QUARTZ,TRIM4#

main72830-3A160-E1iJZS155..LHD..ROY199512-199707

W(REAR POWER SEAT & LEATHER SEAT)-*104,QUARTZ,TRIM4#

main72830-3A280-B0iJZS155..ROY199707-200108

W(REAR POWER SEAT),BLUE GRAY,TRIM1#

main72830-3A280-E0iJZS155..ROY199707-200108

W(REAR POWER SEAT),QUARTZ,TRIM4#

main72830-3A290-B0iJZS155..HT;JZS155..LHD..ROY199707-199909

BLUE GRAY,TRIM1#

main72830-3A290-E0iJZS155..HT;JZS155..ROY..GCC199707-199909

QUARTZ,TRIM4#

main72830-3A370-B0iJZS155..SPSAL199707-200108

BLUE GRAY,TRIM1#

main72830-3A370-E0iJZS155..SPSAL199707-200108

QUARTZ,TRIM4#

main72830-3A380-E0iJZS155..LHD..ROY199707-200108

W(REAR POWER SEAT & LEATHER SEAT)-*104,QUARTZ,TRIM4#

72868COVER, CENTER ARMREST HINGE, RH

main72868-30040-B1iJZS155..HT;JZS155..GCC;JZS155..SPSAL..GEN199512-200108

BLUE GRAY,TRIM1#

main72868-30040-E0iJZS155..HT;JZS155..GCC;JZS155..SPSAL..GEN199512-200108

QUARTZ,TRIM4#

main72868-30050-B0iJZS155..RHD199512-199707

BLUE GRAY,TRIM1#

main72868-30050-B0iJZS155..RHD199512-199707

W(REAR POWER SEAT),BLUE GRAY,TRIM1#

main72868-30050-E0iJZS155..RHD199512-199707

QUARTZ,TRIM4#

main72868-30050-E0iJZS155..RHD199512-199707

W(REAR POWER SEAT),QUARTZ,TRIM4#

main72868-30060-E0iJZS155..LHD..ROY199512-200108

W(REAR POWER SEAT & LEATHER SEAT)-*104,QUARTZ,TRIM4#

main72868-30100-B0iJZS155..ROY199707-200108

W(REAR POWER SEAT),BLUE GRAY,TRIM1#

main72868-30100-E0iJZS155..ROY199707-200108

W(REAR POWER SEAT),QUARTZ,TRIM4#

72869COVER, CENTER ARMREST HINGE, LH

main72869-30020-B1iJZS155..LHD;GS151,JZS155..HT199512-200108

BLUE GRAY,TRIM1#

main72869-30020-E0iJZS155..HT;JZS155..GCC;JZS155..SPSAL..GEN199512-200108

QUARTZ,TRIM4#

main72869-30030-B0iJZS155..RHD199512-199707

W(REAR POWER SEAT),BLUE GRAY,TRIM1#

main72869-30030-B0iJZS155..LHD..ROY199512-199707

BLUE GRAY,TRIM1#

main72869-30030-E0iJZS155..LHD..ROY199512-199707

W(REAR POWER SEAT),QUARTZ,TRIM4#

main72869-30030-E0iJZS155..LHD..ROY199512-199707

QUARTZ,TRIM4#

main72869-30040-E0iJZS155..LHD..ROY199512-200108

W(REAR POWER SEAT & LEATHER SEAT)-*104,QUARTZ,TRIM4#

main72869-30080-B0iJZS155..ROY199707-200108

W(REAR POWER SEAT),BLUE GRAY,TRIM1#

main72869-30080-E0iJZS155..ROY199707-200108

W(REAR POWER SEAT),QUARTZ,TRIM4#

9011906274

main90119-06274

9016840108

main90168-40108

9017604015

main90176-04015

9017906168

main90179-06168

9033325001

main90333-25001

9326954012

main93269-54012

22 parts on this diagram · 3 diagrams in section
