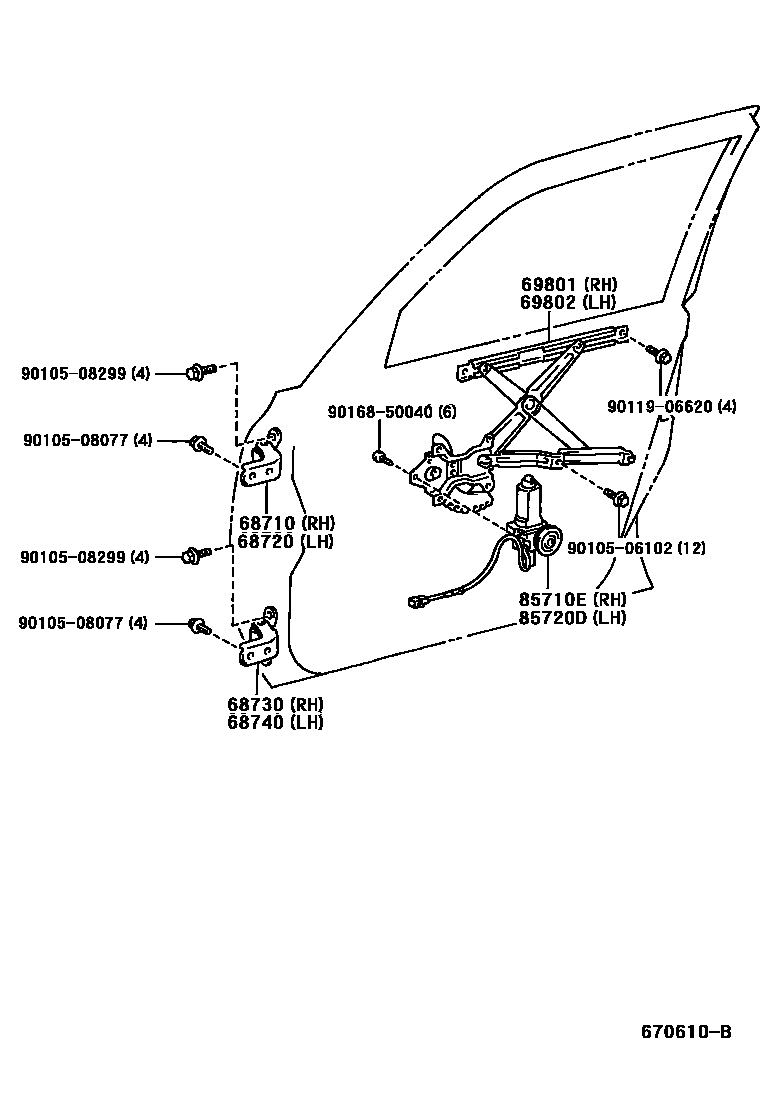

FRONT DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-30160iJZS155..SED199512

main68710-50030iGS151,JZS155..HT199707

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-30080iJZS155..SED199512

main68720-50030iGS151,JZS155..HT199707

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68720-30080iJZS155..SED199512

main68730-30130iGS151,JZS155..HT199707

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-30160iJZS155..SED199512

main68730-30130iGS151,JZS155..HT199707

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-30220iGS151,JZS155..HT199707

main69801-30230iJZS155..SED199512

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-30220iGS151,JZS155..HT199707

main69802-30230iJZS155..SED199512

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-30310iJZS155199512-199707

main85710-30330iJZS155..RHD..SED199707

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-30260iJZS155..SED199512

9010506102

main90105-06102

9010508077

main90105-08077

9010508299

main90105-08299

9011906620

main90119-06620

9016850040

main90168-50040

13 parts on this diagram · 2 diagrams in section
