SIDE MEMBER
53877CBRACKET, FRONT FENDER LINER, RH
53878FBRACKET, FRONT FENDER LINER, LH
58377CRETAINER, LOWER BACK TRIM, RH
58378FRETAINER, LOWER BACK TRIM, LH
6104
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61145BGUSSET, FRONT BODY PILLAR, LOWER RH
61146BGUSSET, FRONT BODY PILLAR, LOWER LH
61161PILLAR, FRONT BODY, UPPER INNER RH
61162PILLAR, FRONT BODY, UPPER INNER LH
61175REINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 RH
61176AREINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 LH
61181ABRACKET, INSTRUMENT SIDE, RH
61182BBRACKET, INSTRUMENT PANEL SIDE, NO.1 LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61311BPILLAR, CENTER BODY, OUTER RH
61312BPILLAR, CENTER BODY, OUTER LH
61395SEAL, CENTER BODY PILLAR, RH
61396BSEAL, CENTER BODY PILLAR, LH
61413CREINFORCEMENT, ROCKER PANEL, NO.2 RH
61414CREINFORCEMENT, ROCKER PANEL, NO.2 LH
61415BEXTENSION, ROCKER, OUTER RH
61416BEXTENSION, ROCKER, OUTER LH
61418AREINFORCEMENT, ROCKER PANEL, RH
61419AREINFORCEMENT, ROCKER PANEL, LH
61427REINFORCEMENT, ROCKER PANEL, NO.5 RH
61428CREINFORCEMENT, ROCKER PANEL, NO.5 LH
61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH
61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH
61625EEXTENSION, QUARTER PANEL, INNER REAR RH
61626EEXTENSION, QUARTER PANEL, INNER REAR LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
W(REAR POWER SEAT)
W(ABS)
W(REAR POWER SEAT)
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
W(REAR POWER SEAT)
W(ABS)
W(REAR POWER SEAT)
61637BRACE, QUARTER WHEEL HOUSE, RH
61638BRACE, QUARTER WHEEL HOUSE, LH
61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH
61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH
61675BREINFORCEMENT, REAR SUSPENSION SPRING SUPPORT
61676EREINFORCEMENT, REAR SUSPENSION SPRING SUPPORT
61711PANEL, ROOF SIDE, OUTER RH
61712PANEL, ROOF SIDE, OUTER LH
61731BPANEL, ROOF SIDE, INNER RH
61732BPANEL, ROOF SIDE, INNER LH
61735APANEL, ROOF SIDE, INNER REAR RH
61736APANEL, ROOF SIDE, INNER REAR LH
61824PLATE, NOISE CONTROL, NO.1
61824CPAD, NOISE SHUTTER, NO.1
sub62554-47010
62151BPAD, COWL SIDE SILENCER
62554BPAD, PILLAR, NO.4
63347DPAD, ROOF SIDE RAIL SILENCER, RH
63348EPAD, ROOF SIDE RAIL SILENCER, LH
64163CCOVER, BACK CORNER, RH
64164CCOVER, BACK CORNER, LH
64165ECOVER, UPPER BACK PANEL HOLE, NO.1
64166DCOVER, UPPER BACK PANEL HOLE, NO.2
66243CPROTECTOR, REAR BODY, NO.1
9011906274
main90119-06274
9017908255
main90179-08255
9033301007
main90333-01007
9033320001
main90333-20001
9095001392
main90950-01392
9095001419
main90950-01419
9095001580
main90950-01580
9095001672
main90950-01672
9095001759
main90950-01759
9095006107
main90950-06107
9163560614
main91635-60614

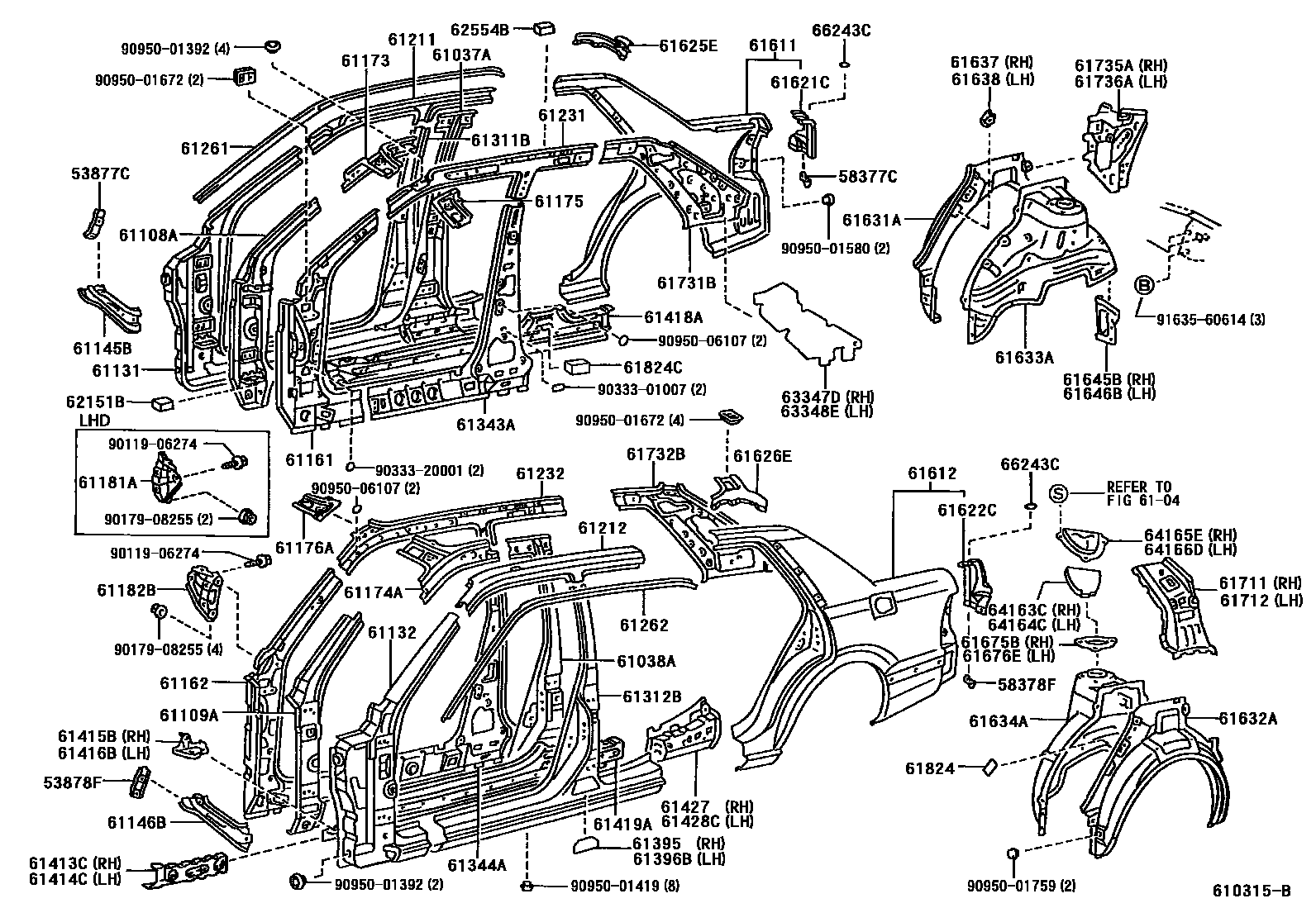

85 parts on this diagram · 2 diagrams in section
