MAT & CARPET

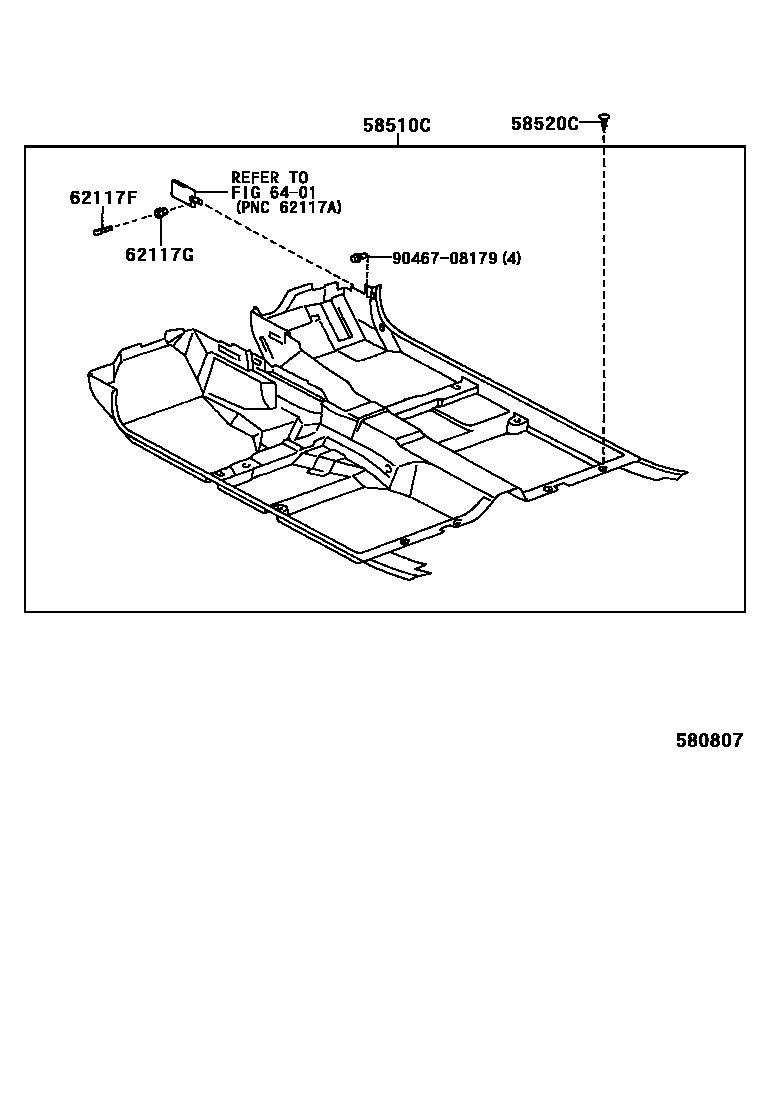

Parts diagram
58510CCARPET ASSY, FRONT FLOOR, FRONT
main58510-3F221-B0i199609-199909
BLUE GRAY,TRIM1#
main58510-3F221-E0i199609-199909
QUARTZ,TRIM4#
main58510-3F240-B0i199512-199609
BLUE GRAY,TRIM1#
main58510-3F240-E0i199512-199609
QUARTZ,TRIM4#
main58510-3F490-B0i199512-199609
BLUE GRAY,TRIM1#
main58510-3F490-E0i199512-199609
QUARTZ,TRIM4#
main58510-3K081-B0i199707-199909
W(REAR POWER SEAT),BLUE GRAY,TRIM1#
main58510-3K081-E0i199707-199909
W(REAR POWER SEAT),QUARTZ,TRIM4#
main58510-3K101-B0i199707-199909
BLUE GRAY,TRIM1#
main58510-3K101-E0i199707-199909
QUARTZ,TRIM4#
main58510-3K121-B0i199707-199808
BLUE GRAY,TRIM1#
main58510-3K121-E0i199707-199808
QUARTZ,TRIM4#
main58510-3K181-B0i199609-199909
W(REAR POWER SEAT),BLUE GRAY,TRIM1#
main58510-3K181-E0i199609-199909
W(REAR POWER SEAT),QUARTZ,TRIM4#
main58510-3K182-B0i199909-200108
W(REAR POWER SEAT),BLUE GRAY,TRIM1#
main58510-3K182-E0i199909-200108
W(REAR POWER SEAT),QUARTZ,TRIM4#
main58510-3K191-B0i199609-199707
W(REAR POWER SEAT),BLUE GRAY,TRIM1#
main58510-3K191-E0i199609-199707
W(REAR POWER SEAT),QUARTZ,TRIM4#
main58510-3K201-B0i199609-199909
BLUE GRAY,TRIM1#
main58510-3K201-E0i199609-199909
QUARTZ,TRIM4#
main58510-3K211-B0i199609-199707
BLUE GRAY,TRIM1#
main58510-3K211-E0i199609-199707
QUARTZ,TRIM4#
main58510-3K220-B0i199512-199609
BLUE GRAY,TRIM1#
main58510-3K220-E0i199512-199609
QUARTZ,TRIM4#
main58510-3K221-B0i199609-199909
BLUE GRAY,TRIM1#
main58510-3K221-E0i199609-199909
QUARTZ,TRIM4#
main58510-3K222-B0i199909-200108
BLUE GRAY,TRIM1#
main58510-3K222-E0i199909-200108
QUARTZ,TRIM4#
main58510-3K230-B0i199512-199609
BLUE GRAY,TRIM1#
main58510-3K230-E0i199512-199609
QUARTZ,TRIM4#
main58510-3K231-B0i199609-199707
BLUE GRAY,TRIM1#
main58510-3K231-E0i199609-199707
QUARTZ,TRIM4#
main58510-3K240-B0i199512-199609
W(REAR POWER SEAT),BLUE GRAY,TRIM1#
main58510-3K240-E0i199512-199609
W(REAR POWER SEAT),QUARTZ,TRIM4#
main58510-3K242-B0i199909-200108
BLUE GRAY,TRIM1#
main58510-3K242-E0i199909-200108
QUARTZ,TRIM4#
main58510-3K250-B0i199512-199609
W(REAR POWER SEAT),BLUE GRAY,TRIM1#
main58510-3K250-E0i199512-199609
W(REAR POWER SEAT),QUARTZ,TRIM4#
main58510-3K260-B0i199512-199609
BLUE GRAY,TRIM1#
main58510-3K260-E0i199512-199609
QUARTZ,TRIM4#
main58510-3K720-B0i199707-199909
W(REAR POWER SEAT),BLUE GRAY,TRIM1#
main58510-3K720-E0i199707-199909
W(REAR POWER SEAT),QUARTZ,TRIM4#
main58510-3K730-B0i199707-199909
BLUE GRAY,TRIM1#
main58510-3K730-E0i199707-199909
QUARTZ,TRIM4#
main58510-3K740-B0i199707-199909
BLUE GRAY,TRIM1#
main58510-3K740-E0i199707-199909
QUARTZ,TRIM4#
58520CCLIP(FOR FRONT FLOOR CARPET)
main90467-06016-01i199707-200108
BLACK,TRIM1#,4#
sub90467-06016
sub90467-07049
main90467-06016-C0i199512-199707
BLACK,TRIM1#,4#
sub90467-06016
sub90467-07049
62117FCLIP, NO.1(FOR COWL SIDE TRIM)
main90467-05015-11i199512-200108
BLACK,TRIM1#,4#
sub90467-05015
62117GCLIP, NO.2(FOR COWL SIDE TRIM)
main90467-08031-01i199707-200108
BLACK,TRIM1#,4#
sub90467-08031
main90467-08031-11i199512-199707
BLACK,TRIM1#,4#
sub90467-08031
6401
9046708179
main90467-08179

6 parts on this diagram · 3 diagrams in section
