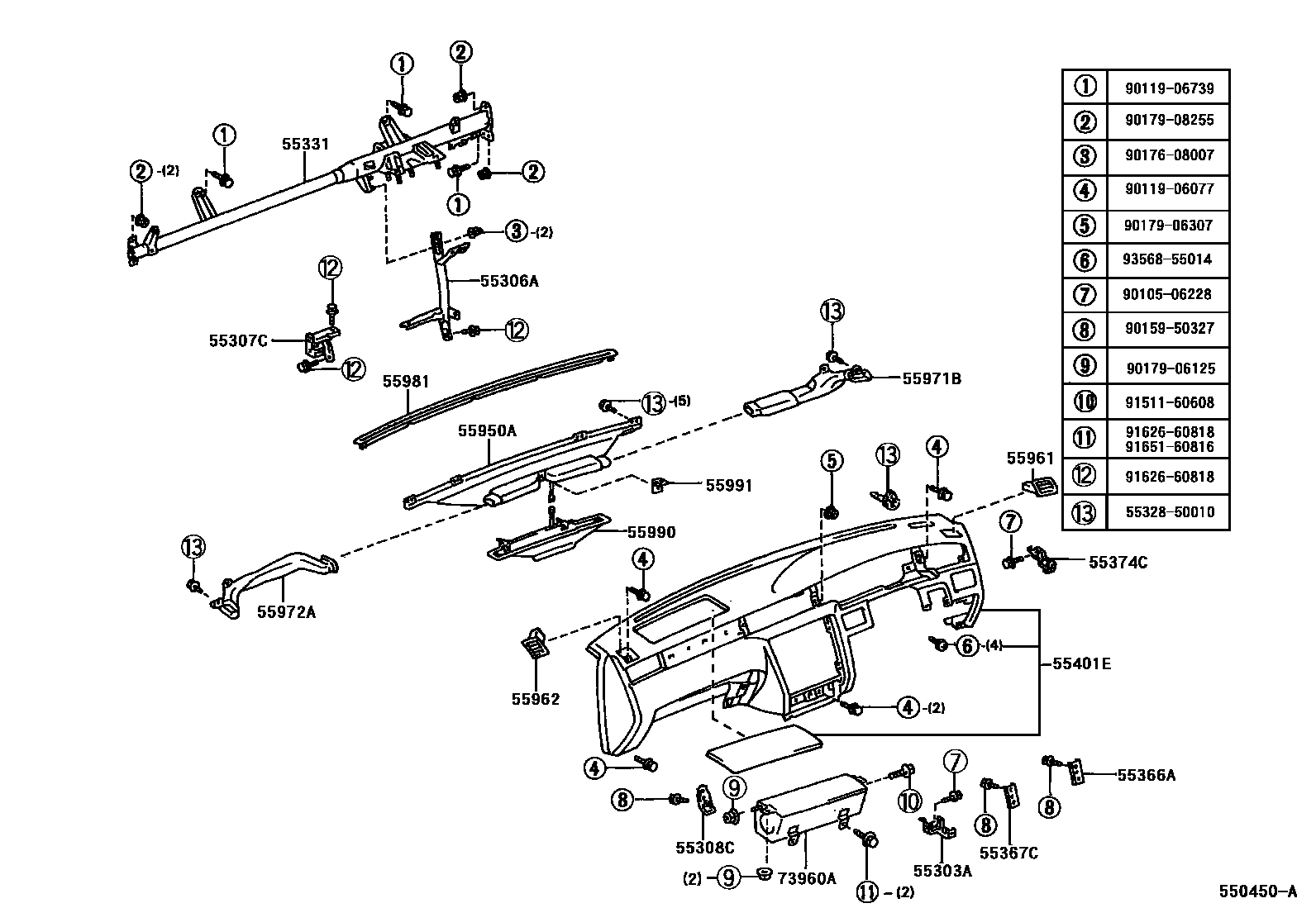

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1

55303ASTAY SUB-ASSY, INSTRUMENT PANEL

main55303-30170iGS151,JZS155..RHD199512

main55303-30190iJZS155..LHD199512

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-30240iJZS155..RHD199512-199707

main55306-30260iJZS155..LHD199512-199707

main55306-30290iGS151,JZS155..RHD199707

main55306-30300iJZS155..LHD199707

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-30190iJZS155..RHD199512-199707

main55307-30230iJZS155..LHD199512-199707

main55307-30290iGS151,JZS155..RHD199707

main55307-30310iJZS155..LHD199707

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-30230iGS151,JZS155199512

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-30120iGS151,JZS155..RHD199512

main55330-30160iJZS155..LHD..GEN;JZS155..SPSAL..GCC199512-199707

main55330-30200iJZS155..LHD..GEN;JZS155..SPSAL..GCC199512

W(*80,PASSENGER SIDE)

55366ABRACKET, RADIO MOUNTING, NO.1

main55366-30190iGS151,JZS155199512

55367CBRACKET, RADIO TUNER MOUNTING, NO.3

main55367-30040iGS151,JZS155199512

55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1

main55374-30180iGS151,JZS155..HT199707

main55374-30200iJZS155199512-199707

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-30440-B0iJZS155..RHD199512-199707

DK.BLUE GRAY,TRIM1#

main55401-30440-E0iJZS155..RHD199512-199707

ANTELOPE,TRIM4#

main55401-30480-B0iJZS155..LHD..GEN;JZS155..SPSAL..GCC199512-199707

DK.BLUE GRAY,TRIM1#

main55401-30480-E0iJZS155..LHD..GEN;JZS155..SPSAL..GCC199512-199707

ANTELOPE,TRIM4#

main55401-30490-B0iJZS155..LHD..GEN;JZS155..SPSAL..GCC199512-200108

W(*80,PASSENGER SIDE),DK.BLUE GRAY,TRIM1#

main55401-30490-E0iJZS155..LHD..GEN;JZS155..SPSAL..GCC199512-200108

W(*80,PASSENGER SIDE),ANTELOPE,TRIM4#

main55401-30570-B0iGS151,JZS155..RHD199707-199909

DK.BLUE GRAY,TRIM1#

main55401-30570-E0iGS151,JZS155..RHD199707-199909

ANTELOPE,TRIM4#

55950ANOZZLE ASSY, DEFROSTER

main55950-30120iGS151,JZS155..RHD199512

main55950-30130iJZS155..LHD199512

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-30100-B0iGS151,JZS155..RHD199512-199909

DK.BLUE GRAY,TRIM1#

main55961-30100-E0iGS151,JZS155..RHD199512-199909

ANTELOPE,TRIM4#

main55961-30110-B0iJZS155..LHD199512-200108

DK.BLUE GRAY,TRIM1#

main55961-30110-E0iJZS155..LHD199512-200108

ANTELOPE,TRIM4#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-30080-B0iGS151,JZS155..RHD199512-199909

DK.BLUE GRAY,TRIM1#

main55962-30080-E0iGS151,JZS155..RHD199512-199909

ANTELOPE,TRIM4#

main55962-30090-B0iJZS155..LHD199512-200108

DK.BLUE GRAY,TRIM1#

main55962-30090-E0iJZS155..LHD199512-200108

ANTELOPE,TRIM4#

55971BDUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-30110iGS151,JZS155..RHD199512

main55971-30120iJZS155..LHD199512

55972ADUCT, SIDE DEFROSTER NOZZLE, NO.2

main55972-30110iGS151,JZS155..RHD199512

main55972-30120iJZS155..LHD199512

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-30080iGS151,JZS155..RHD199512

main55981-30090iJZS155..LHD199512

55990NOZZLE ASSY, CENTER DEFROSTER

main55990-30010iGS151,JZS155..RHD199512

main55990-30020iJZS155..LHD199512

55991BRACKET, DEFROSTER DUCT, NO.1

main55991-30050iGS151,JZS155..RHD199512

main55991-30060iJZS155..LHD199512

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-0W110iJZS155199512-199707

main73960-0W170iGS151,JZS155199707-199709

main73960-0W240iGS151,JZS155199709-199909

main73960-30020iJZS155199909

5532850010PIN, INSTRUMENT PANEL, NO.1

main55328-50010

9010506228

main90105-06228

9011906077

main90119-06077

9011906739

main90119-06739

9015950327

main90159-50327

9017608007

main90176-08007

9017906125

main90179-06125

9017906307

main90179-06307

9017908255

main90179-08255

9151160608

main91511-60608

9162660818

main91626-60818

9165160816

main91651-60816

9356855014

main93568-55014

31 parts on this diagram · 4 diagrams in section
