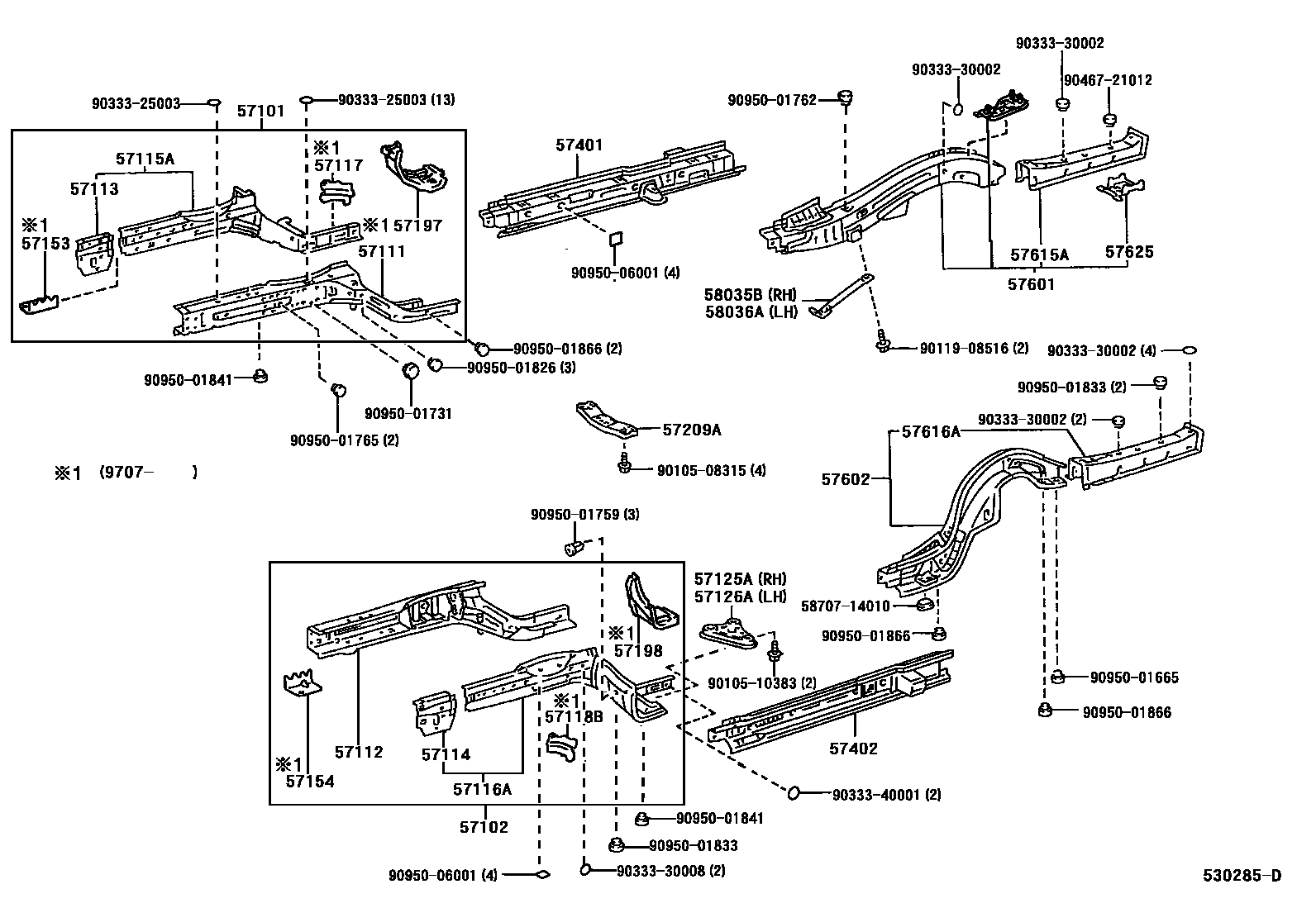

FLOOR SIDE MEMBER

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-30030iJZS155199512-199707

main57101-30031iGS151,JZS155199707

sub57101-30071

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-30030iJZS155199512-199707

main57102-30031iGS151,JZS155199707-200108

57111MEMBER, FRONT SIDE, RH

main57111-30900iJZS155199512-199704

sub57111-30902

main57111-30904iGS151,JZS155199704

57112MEMBER, FRONT SIDE, LH

main57112-30900iJZS155199512-199704

sub57112-30902

main57112-30904iGS151,JZS155199704-200108

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-22080iGS151,JZS155199512

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-22080iGS151,JZS155199512-200108

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-30900iGS151,JZS155199512

sub57115-30903

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-22140iGS151,JZS155199707-200108

main57116-30900iJZS155199512-199707

57117PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH

main57117-22070iGS151,JZS155199707

57118BPLATE, FRONT SIDE MEMBER, NO.2 LH

main57118-22050iGS151,JZS155199707-200108

57125APLATE, STRUT BAR BRACKET, RH

main57125-22070iGS151,JZS155199512

57126APLATE, STRUT BAR BRACKET, LH

main57126-22050iGS151,JZS155199512

57153REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH

main57153-30020iGS151,JZS155199707

57154REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH

main57154-30020iGS151,JZS155199707-200108

57197BOX, TORQUE, FRONT RH

main57197-30021iGS151,JZS155199707

57198BOX, TORQUE, FRONT LH

main57198-30021iGS151,JZS155199707-200108

57209AMEMBER SUB-ASSY, ENGINE REAR MOUNTING

main57255-22300iGS151,JZS155199512

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-30040iJZS155199512-199707

main57401-30060iGS151,JZS155199707-199909

main57401-30061iJZS155199909

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-30030iJZS155199512-199707

main57402-30050iGS151,JZS155199707-199909

main57402-30051iJZS155199909

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-30900iGS151,JZS155199512

sub57601-30914

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-30901iGS151,JZS155199512

sub57602-30925

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-22130iGS151,JZS155199512

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-30020iGS151,JZS155199704

main57616-30900iJZS155199512-199704

57625REINFORCEMENT, REAR FLOOR SIDE MEMBER, RH

main57625-22070iGS151,JZS155199512

58035BBRACE SUB-ASSY, REAR FLOOR PANEL, RH

main58035-30030iGS151,JZS155199512

58036ABRACE SUB-ASSY, REAR FLOOR PANEL, LH

main58036-30030iGS151,JZS155199512

5870714010PLUG SET, HOLE

main58707-14010

9010508315

main90105-08315

9010510383

main90105-10383

9011908516

main90119-08516

9033325003

main90333-25003

9033330002

main90333-30002

9033330008

main90333-30008

9033340001

main90333-40001

9046721012

main90467-21012

9095001665

main90950-01665

9095001731

main90950-01731

9095001759

main90950-01759

9095001762

main90950-01762

9095001765

main90950-01765

9095001826

main90950-01826

9095001833

main90950-01833

9095001841

main90950-01841

9095001866

main90950-01866

9095006001

main90950-06001

45 parts on this diagram · 1 diagram in section
