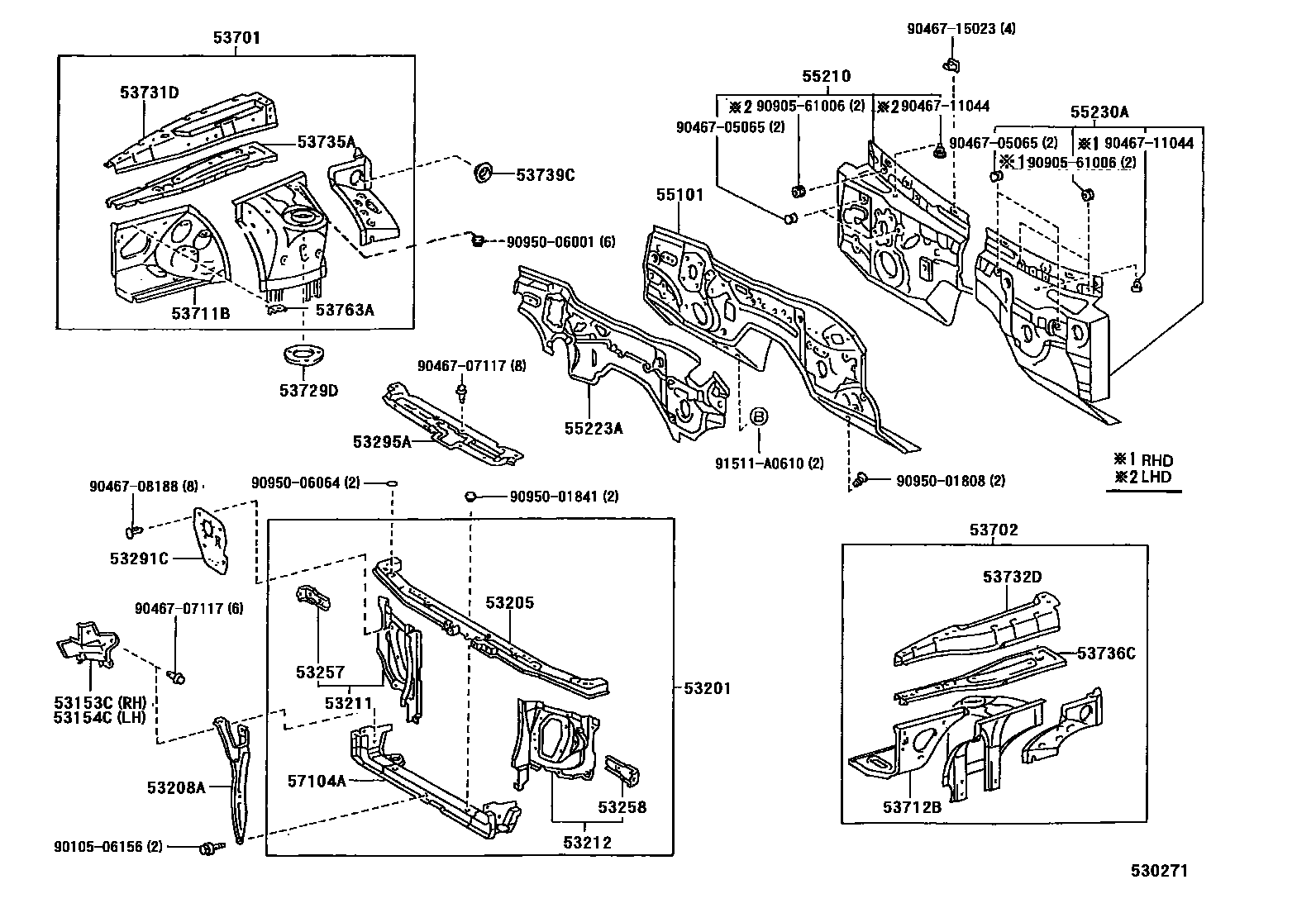

FRONT FENDER APRON & DASH PANEL

53153CGUIDE, RADIATOR GRILLE SIDE AIR, RH

main53153-30080iGS151,JZS155¥790199512

53154CGUIDE, RADIATOR GRILLE SIDE AIR, LH

main53154-30070iGS151,JZS155¥790199512

53201SUPPORT SUB-ASSY, RADIATOR

main53201-30440iJZS155..SED¥31,300199512

main53201-30470iGS151,JZS155..HT¥31,200199707

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53216-30908iGS151,JZS155¥10,600199512

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53209-30200iGS151,JZS155¥2,580199512

53211SUPPORT, RADIATOR, RH

main53211-30904iGS151,JZS155..HT¥5,600199707

main53211-30905iJZS155..SED¥5,600199707

main53211-30906iJZS155¥5,600199512-199707

53212SUPPORT, RADIATOR, LH

main53212-30901iJZS155¥5,400199512-199704

sub53212-30904¥5,600

main53212-30902iGS151,JZS155..HT¥5,600199707

main53212-30903iJZS155..SED¥5,600199707

main53212-30904iJZS155¥5,600199704-199707

53257BRACKET, FRONT END PANEL MOUNTING, RH

main53257-30020iGS151,JZS155¥540199512

53258BRACKET, FRONT END PANEL MOUNTING, LH

main53257-30020iGS151,JZS155¥540199512

53291CSEAL, RADIATOR SUPPORT TO FRAME

main53291-30070iJZS155..SED¥1,270199512

main53291-30090iGS151,JZS155..HT¥1,260199707

53295ADEFLECTOR, RADIATOR UPPER AIR

main53293-30090iGS151,JZS155¥4,630199512

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-30880iJZS155¥42,900199512-199707

sub53701-30881¥42,900

main53701-30881iGS151,JZS155¥42,900199707

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-30650iJZS155¥42,900199512-199707

sub53702-30651¥42,900

main53702-30651iGS151,JZS155¥42,900199707-200108

53711BAPRON, FRONT FENDER, FRONT RH

main53711-30800iGS151,JZS155¥6,100199512

53712BAPRON, FRONT FENDER, FRONT LH

main53712-30912iGS151,JZS155¥6,300199512-200108

53729DREINFORCEMENT, FRONT SPRING SUPPORT, NO.3

main53729-22050iJZS155¥1,630199512-199707

main53729-30040iGS151,JZS155¥1,440199707

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-30903iJZS155¥6,600199512-199707

sub53731-30904¥6,600

main53731-30904iGS151,JZS155¥6,600199707

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-30903iGS151,JZS155¥6,600199512-200108

53735AMEMBER, FRONT APRON TO COWL SIDE, LOWER RH

main53735-30060iGS151,JZS155¥4,460199512

53736CMEMBER, FRONT APRON TO COWL SIDE, LOWER LH

main53736-30060iGS151,JZS155¥4,490199512-200108

53739CSEAL, FRONT FENDER APRON TO FRAME, REAR

main53739-30060iGS151,JZS155¥350199512

53763ABRACKET, AIR CLEANER INLET MOUNTING

main53763-22020iGS151,JZS155¥350199512

55101PANEL SUB-ASSY, DASH

main55101-3A210iGS151,JZS155..RHD¥39,500199512

sub55101-3A230¥39,600

main55101-3A310iJZS155..LHD..4FC¥39,500199512

main55101-3A320iJZS155..5F¥39,600199512

55210INSULATOR ASSY, DASH PANEL

main55210-30230iGS151,JZS155..RHD¥20,600199512-199808

sub55210-30330¥20,600

main55210-30280iJZS155..LHD¥20,600199512

main55210-30330iJZS155..RHD¥20,600199808

55223AINSULATOR, DASH PANEL, OUTER

main55223-30110iGS151,JZS155..RHD¥7,100199512

main55223-30140iJZS155..LHD¥7,800199512

55230AINSULATOR ASSY, DASH PANEL, NO.4

main55230-30010iGS151,JZS155..RHD¥20,600199512-199808

sub55230-30100¥20,600

main55230-30040iJZS155..LHD¥20,600199512

main55230-30100iJZS155..RHD¥20,600199808

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-30030iGS151,JZS155¥11,900199512

9010506156

main90105-06156¥120

9046705065

main90467-05065¥200

9046707117

main90467-07117¥90

9046708188

main90467-08188¥80

9046711044

main90467-11044¥240

9046715023

main90467-15023¥200

9090561006

main90905-61006¥260

9095001808

main90950-01808¥110

9095001841

main90950-01841¥110

9095006001

main90950-06001¥170

9095006064

main90950-06064¥110

91511A0610

main91511-A0610¥120

39 parts on this diagram · 1 diagram in section
