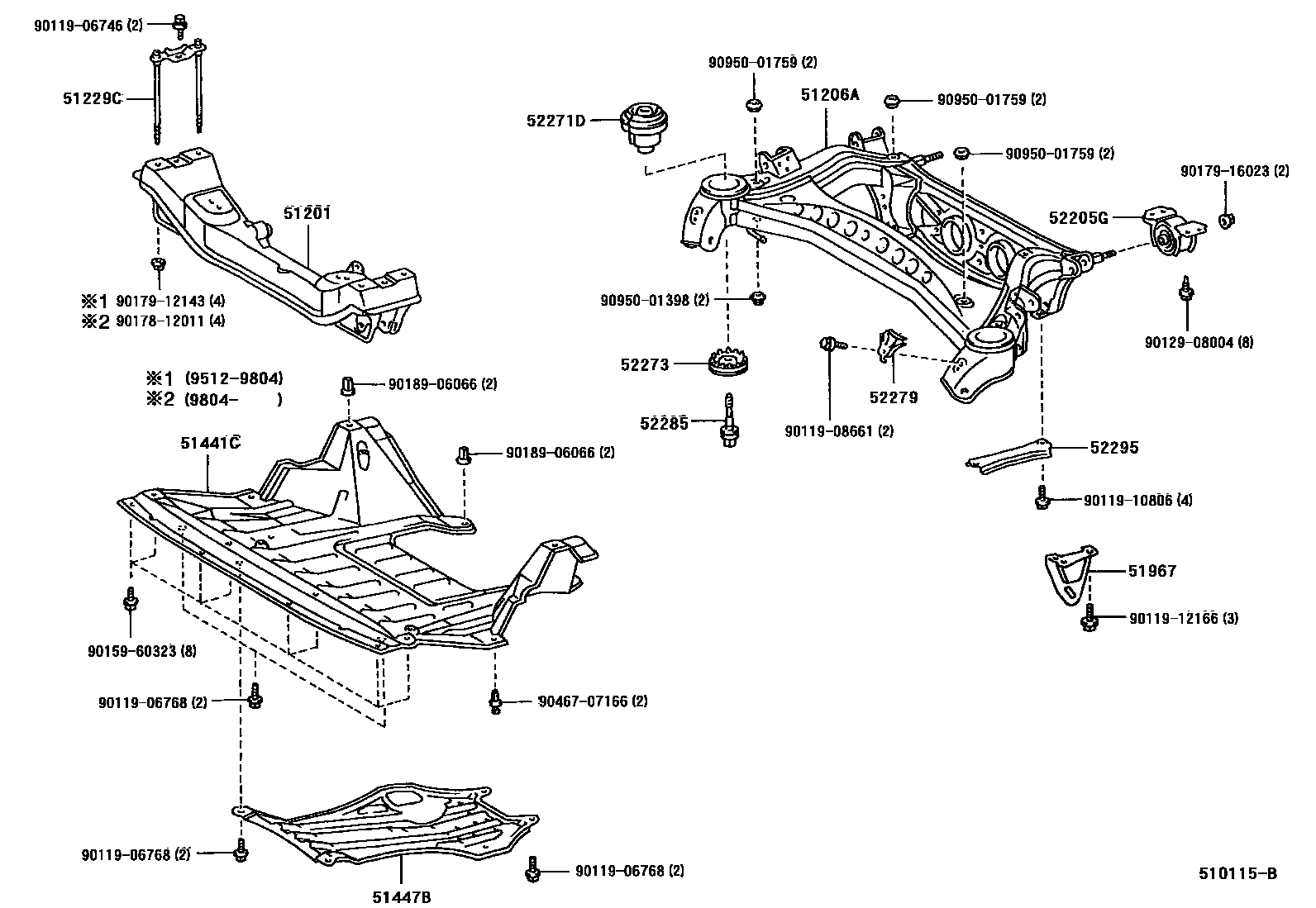

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-22907iGS151,JZS155..RHD199512-199804

sub51201-22909

main51201-22909iGS151,JZS155..RHD199804

main51201-30900iJZS155..LHD199512-199804

sub51201-30901

main51201-30901iJZS155..LHD199804

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-30020iJZS155199512-199609

main51206-30050iGS151,JZS155199609

51229CPLATE, SUSPENSION MEMBER SET

main51229-22060iGS151,JZS155199512

51441CCOVER, ENGINE UNDER, RH

main51441-30150iGS151,JZS155..HT199707

main51441-30200iJZS155..SED199512

sub51441-30150

51447BPROTECTOR, OIL PAN

main51447-22080iJZS155..LHD..GEN199512

51967HOOK, TRANSPORT, REAR

main51968-30040iGS151,JZS155199512

52205GCUSHION SUB-ASSY, BODY MOUNTING, LOWER

main52205-22030iGS151,JZS155199512

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-30060iGS151,JZS155199512

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-30050iGS151,JZS155199512

52279RETAINER, REAR SUSPENSION MEMBER CUSHION

main52279-22030iGS151,JZS155199512

52285BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1

main52285-30030iGS151,JZS155199512

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-30010iGS151,JZS155199512

9011906746

main90119-06746

9011906768

main90119-06768

9011908661

main90119-08661

9011910806

main90119-10806

9011912166

main90119-12166

9012908004

main90129-08004

9015960323

main90159-60323

9017812011

main90178-12011

9017912143

main90179-12143

9017916023

main90179-16023

9018906066

main90189-06066

9046707166

main90467-07166

9095001398

main90950-01398

9095001759

main90950-01759

26 parts on this diagram · 1 diagram in section
