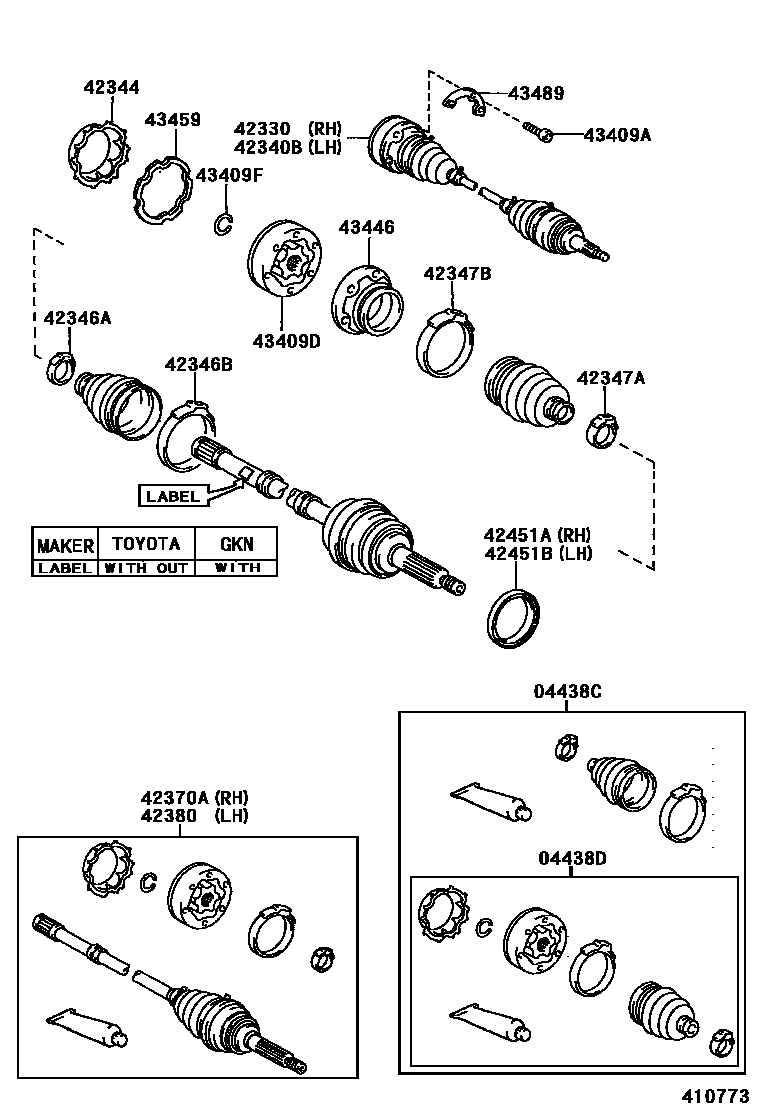

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1

04438CBOOT KIT, REAR DRIVE SHAFT

main04437-0W020iJZS155¥12,400199707

GKN

main04437-24040iJZS155¥10,800199512-199707

sub04437-24041¥10,800

main04437-28030iGS151¥10,800199707-199808

sub04437-28011¥10,800

main04437-30060iJZS155¥12,400199707

TOYOTA

sub04429-30040¥12,400

04438DBOOT KIT, REAR DRIVE SHAFT INBOARD JOINT

main04437-0W010iJZS155¥8,400199802

GKN

main04437-24030iJZS155¥6,700199512-199707

sub04437-24031¥6,700

main04437-28020iGS151¥6,700199707-199808

sub04437-28021¥6,700

main04437-30050iJZS155¥8,400199707-199802

sub04439-30030¥8,400

main04437-30050iJZS155¥8,400199802

TOYOTA

sub04439-30030¥8,400

42330SHAFT ASSY, REAR DRIVE, RH

main42330-0W010iJZS155¥61,800199802

W(ABS),GKN

main42330-0W020iJZS155..LHD..GEN;JZS155..SPSAL..GCC¥61,700199802-199909

GKN

main42330-22050iGS151¥62,000199707-199808

main42330-30090iJZS155..LHD..GEN;JZS155..SPSAL..GCC¥57,400199512-199707

W(ABS)

sub42330-30091¥57,400

main42330-30100iJZS155..LHD..GEN;JZS155..SPSAL..GCC¥59,100199512-199707

sub42330-30091¥57,400

main42330-30120iJZS155¥59,200199707-199802

W(ABS)

main42330-30120iJZS155¥59,200199802

W(ABS),TOYOTA

main42330-30130iJZS155..LHD..GEN;JZS155..SPSAL..GCC¥59,200199802-199909

TOYOTA

main42330-30130iJZS155..LHD..GEN;JZS155..SPSAL..GCC¥59,200199707-199802

42340BSHAFT ASSY, REAR DRIVE, LH

main42340-0W010iJZS155¥59,200199802

W(ABS),GKN

main42340-0W020iJZS155..LHD..GEN;JZS155..SPSAL..GCC¥59,100199802-199909

GKN

main42340-22130iGS151¥59,200199707-199808

main42340-30090iJZS155..LHD..GEN;JZS155..SPSAL..GCC¥57,400199512-199707

W(ABS)

sub42340-30091¥57,400

main42340-30100iJZS155..LHD..GEN;JZS155..SPSAL..GCC¥57,400199512-199707

sub42340-30091¥57,400

main42340-30120iJZS155¥59,200199802

W(ABS),TOYOTA

main42340-30120iJZS155¥59,200199707-199802

W(ABS)

main42340-30130iJZS155..LHD..GEN;JZS155..SPSAL..GCC¥59,200199802-199909

TOYOTA

main42340-30130iJZS155..LHD..GEN;JZS155..SPSAL..GCC¥59,200199707-199802

42344COVER, REAR AXLE INBOARD JOINT END

main42344-09005iJZS155¥1,950199707

GKN

main42344-30030iJZS155¥840199707

TOYOTA

main42344-50011iJZS155¥750199512-199707

42346ACLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)

main42345-0W010iJZS155¥540199802-200108

GKN

main42345-14010iGS151¥700199707-199808

ID=35.75

main42345-30080iJZS155¥370199707-200108

ID=36.1

main90949-01837iJZS155¥450199512-199707

42346BCLAMP, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT)

main42345-0W020iJZS155¥370199802-200108

GKN

main42345-30070iJZS155¥460199707-200108

main90949-01473iGS151¥260199707-199808

main90949-01838iJZS155¥530199512-199707

42347ACLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

main42345-0W010iJZS155¥540199802-200108

GKN

main42345-14010iGS151¥700199707-199808

ID=35.75

main42345-30080iJZS155¥370199707-200108

ID=36.1

main90949-01837iJZS155¥450199512-199707

42347BCLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

main42345-0W020iJZS155¥370199802-200108

GKN

main42345-30010iGS151¥970199707-199808

main42345-30070iJZS155¥460199707-200108

main90949-01838iJZS155¥530199512-199707

42370ASHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH

main42370-09005iJZS155¥48,500199707

W(ABS),GKN

main42370-09015iJZS155..LHD..GEN;JZS155..SPSAL..GCC¥48,500199707-199909

GKN

main42370-29175iGS151¥46,000199707-199808

sub42370-29176¥46,000

main42370-39055iJZS155..RHD;JZS155..ROY..GCC¥47,700199512-199707

W(ABS)

sub42370-39056¥47,700

main42370-39065iJZS155..LHD..GEN;JZS155..SPSAL..GCC¥46,700199512-199707

main42370-39135iJZS155¥48,900199802

W(ABS),TOYOTA

sub42370-39235¥48,900

main42370-39145iJZS155..LHD..GEN;JZS155..SPSAL..GCC¥48,900199802-199909

TOYOTA

sub42370-39225¥48,900

42380SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH

main42380-09005iJZS155¥46,700199707-199802

W(ABS),GKN

main42380-09005iJZS155¥46,700199802

W(ABS)

main42380-09015iJZS155..LHD..GEN;JZS155..SPSAL..GCC¥46,700199707-199909

GKN

main42380-29075iGS151¥44,400199707-199808

sub42380-29076¥44,400

main42380-39015iJZS155..LHD..GEN;JZS155..SPSAL..GCC¥46,200199512-199707

W(ABS)

sub42380-39016¥46,200

main42380-39025iJZS155..LHD..GEN;JZS155..SPSAL..GCC¥45,100199512-199707

sub42380-39016¥46,200

main42380-39055iJZS155¥47,200199802

W(ABS),TOYOTA

sub42380-39145¥47,200

main42380-39065iJZS155..LHD..GEN;JZS155..SPSAL..GCC¥47,200199802-199909

TOYOTA

sub42380-39135¥47,200

42451ADEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH

main42452-22030iJZS155..LHD..GEN;JZS155..SPSAL..GCC¥750199512-199909

main42453-50010iGS151,JZS155¥690199512

W(ABS)

42451BDEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH

main42452-22030iJZS155..LHD..GEN;JZS155..SPSAL..GCC¥750199512-199909

main42453-50010iGS151,JZS155¥690199512

W(ABS)

43409ABOLT (FOR REAR DRIVE SHAFT CROSS GROOVE JOINT)

main90110-10016iJZS155¥260199707

main90110-12003iJZS155¥300199512-199707

43409DJOINT SUB-ASSY, REAR DRIVE SHAFT CROSS GROOVE

main43409-0W010iJZS155¥29,600199802

GKN

main43409-24010iJZS155¥29,700199512-199707

main43409-30030iJZS155¥29,600199707-199802

W(ABS)

main43409-30030iJZS155¥29,600199802

W(ABS),TOYOTA

43409FRING, SNAP (FOR REAR DRIVE SHAFT CROSS GROOVE JOINT)

main43425-0W020iJZS155¥90199802

GKN

main90520-26028iJZS155¥110199707-199802

W(ABS)

main90520-26028iJZS155¥110199512-199707

main90520-26028iJZS155¥110199802

W(ABS),TOYOTA

43446COVER, REAR AXLE INBOARD JOINT

main43446-09005iJZS155¥2,380199707

GKN

main43446-24020iJZS155¥1,240199512-199707

main43446-30010iJZS155¥1,210199707

TOYOTA

43459GASKET, REAR AXLE INBOARD JOINT END COVER

main43459-50011iJZS155¥340199512-199707

43489WASHER, REAR DRIVE SHAFT CROSS GROOVE JOINT

main43489-30020iJZS155¥450199707

main43489-50010iJZS155¥650199512-199707

19 parts on this diagram · 3 diagrams in section
