VALVE BODY & OIL STRAINER (ATM)

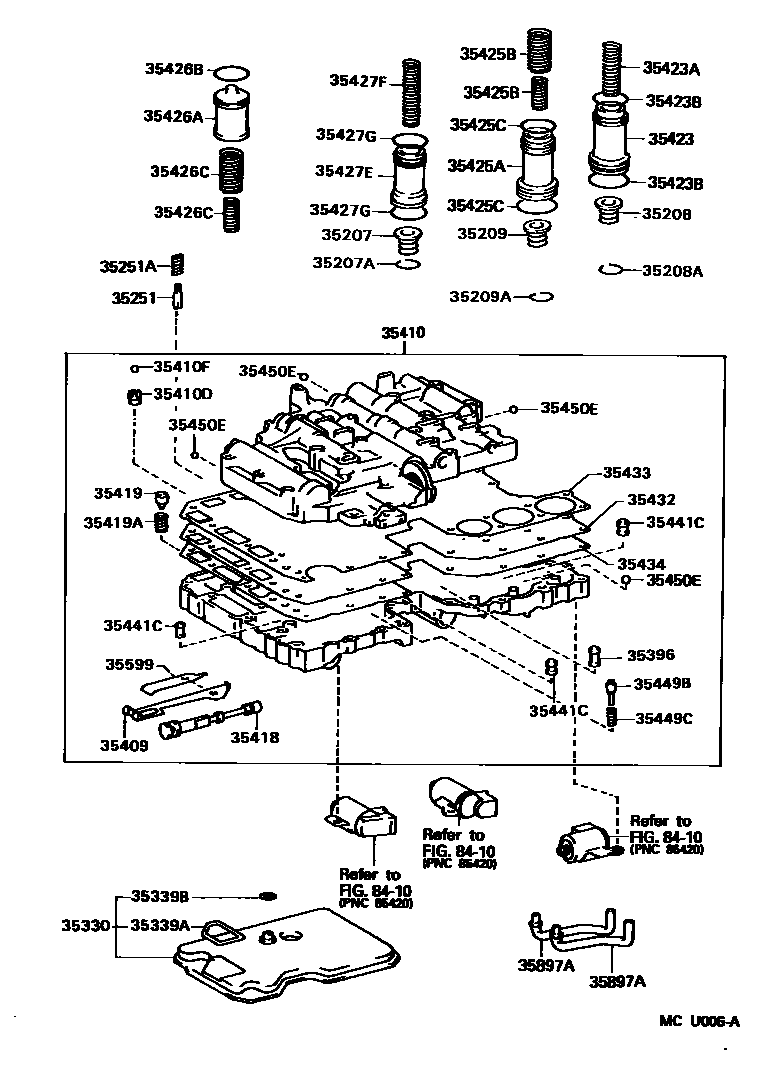

Parts diagram
35207SPRING SUB-ASSY, B-0 ACCUMULATOR
main35207-22010i199512
main35207-22010i199608-199909
AXLE CODE=A02A
main35207-50010i199707-199909
main35207-50010i199512-199909
AXLE CODE=A01A
35207ARING, HOLE SNAP (FOR B-0 ACCUMULATOR SPRING)
main90521-22004i199512
35208SPRING SUB-ASSY, B-2 ACCUMULATOR
main35208-22010i199512
main35208-22010i199608-199909
AXLE CODE=A02A
main35208-28010i199707-199808
main35208-30010i199512-199909
AXLE CODE=A01A
main35208-30010i199707-199909
35208ARING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING)
main90521-22004i199512
35209SPRING SUB-ASSY, C-2 ACCUMULATOR
main35209-30010i199512
main35209-30010i199608-199909
AXLE CODE=A02A
main35209-50010i199707-199909
main35209-50010i199512-199909
AXLE CODE=A01A
35209ARING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING)
main90521-22004i199512
35251BODY, CHECK BALL
main35251-30020i199512
35251ASPRING, COMPRESSION (FOR CHECK BALL BODY)
main90501-03005i199512
35330STRAINER ASSY, VALVE BODY OIL
main35330-30011i199512
main35330-30011i199608-199909
AXLE CODE=A02A
main35330-50010i199707-199909
main35330-50010i199512-199909
AXLE CODE=A01A
35339GASKET, OIL STRAINER
main35339-28030i199707-199808
35339AGASKET, OIL STRAINER, NO.1
main35339-30070i199512-199608
35339BGASKET, OIL STRAINER, NO.2
main90430-10010i199512-199608
35396STRAINER, THROTTLE OIL
main35396-30010i199512-199608
35409SPRING SUB-ASSY, MANUAL DETENT
main35409-22020i199512-199909
AXLE CODE=A01A
main35409-22020i199707-199909
main35409-30010i199707-199808
main35409-30020i199608-199909
AXLE CODE=A02A
main35409-30020i199512
35410BODY ASSY, TRANSMISSION VALVE
main35410-30740i199512-199707
AXLE CODE=A01A
main35410-30790i199608-199909
AXLE CODE=A02A
main35410-30790i199512
main35410-30820i199707-199909
AXLE CODE=A01A
35410DVALVE, CHECK
main90917-10073i199512-199608
35410FBALL (FOR CHECK VALVE)
main90360-06004i199512-199608
35418VALVE, MANUAL
main35418-30060i199707-199808
main35418-30070i199512
main35418-30070i199608-199909
AXLE CODE=A02A
main35418-50010i199512-199909
AXLE CODE=A01A
main35418-50010i199707-199909
35419VALVE, CHECK, NO.1
main35419-12030i199512-199608
main35419-22010i199707-199808
35419ASPRING, COMPRESSION (FOR CHECK VALVE)
main90501-09093i199512-199909
AXLE CODE=A01A
main90501-09093i199707-199909
main90501-11039i199512
main90501-11039i199608-199909
AXLE CODE=A02A
main90501-13003i199707-199808
35423PISTON, B-2 ACCUMULATOR
main35423-30030i199512
35423ASPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)
main90501-22033i199707-199808
main90501-24014i199707-199909
main90501-24014i199512-199909
AXLE CODE=A01A
main90501-25028i199512
main90501-25028i199608-199909
AXLE CODE=A02A
35423BRING, O (FOR B-2 ACCUMULATOR PISTON)
main90301-23010i199707
UPPER
main90301-23194i199512-199707
UPPER
main90301-31002i199512-199707
LOWER
sub90301-31010
main90301-31010i199707
LOWER
35425SEAT, PRESSURE REGULATOR VALVE SLEEVE
main35425-14010i199707-199808
35425APISTON, C-2 ACCUMULATOR
main35425-30020i199512
35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)
main90501-22015i199608-199909
AXLE CODE=A02A,OUTER
main90501-22015i199512
OUTER
main90501-22016i199512-199909
AXLE CODE=A01A,OUTER
main90501-22016i199707-199909
OUTER
main90501-25027i199512
INNER
main90501-25027i199608-199909
AXLE CODE=A02A,INNER
main90501-27016i199707-199808
main90501-28013i199512-199909
AXLE CODE=A01A,INNER
main90501-28013i199707-199909
INNER
35425CRING, O (FOR C-2 ACCUMULATOR PISTON)
main90301-25003i199512-199707
UPPER
sub90301-25010
main90301-25010i199707
UPPER
main90301-31002i199512-199707
LOWER
sub90301-31010
main90301-31010i199707
LOWER
35426APISTON, C-0 ACCUMULATOR
main35426-40010i199512
main35426-40010i199608-199909
AXLE CODE=A02A
main35426-50010i199512-199909
AXLE CODE=A01A
main35426-50010i199707-199909
35426BRING, O (FOR C-0 ACCUMULATOR PISTON)
main90301-24001i199512-199707
AXLE CODE=A01A
sub90301-24010
main90301-24001i199608-199707
AXLE CODE=A02A
sub90301-24010
main90301-24010i199707
35426CSPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON)
main90501-21021i199512-199909
AXLE CODE=A01A
main90501-22008i199608-199909
AXLE CODE=A02A,INNER
main90501-22008i199512
INNER
main90501-23073i199608-199909
AXLE CODE=A02A,OUTER
main90501-23073i199512
OUTER
35427EPISTON, B-0 ACCUMULATOR
main35427-30040i199512
35427FSPRING, COMPRESSION (FOR B-0 ACCUMULATOR PISTON)
main90501-21006i199512
main90501-21006i199608-199909
AXLE CODE=A02A
main90905-01025i199707-199909
main90905-01025i199512-199909
AXLE CODE=A01A
35427GRING, O (FOR B-0 ACCUMULATOR PISTON)
main90301-20002i199512-199707
UPPER
main90301-20008i199707
UPPER
main90301-26002i199512-199707
LOWER
sub90301-26011
main90301-26011i199707
LOWER
35432PLATE, VALVE BODY, NO.1
main35432-22291i199707-199808
main35432-30480i199512-199608
35433GASKET, VALVE BODY, NO.1
main35433-22041i199707-199808
main35433-30064i199512-199608
35434GASKET, VALVE BODY, NO.2
main35434-22041i199707-199808
main35434-30076i199512-199608
35441CSTRAINER, SOLENOID OIL
main35441-30020i199512
LWR VALVE BODY
main35441-30020i199608-199909
AXLE CODE=A02A,LWR VALVE BODY
main35441-30031i199608-199909
AXLE CODE=A02A,UPR VALVE BODY
main35441-30031i199512
UPR VALVE BODY
main35441-50030i199512-199909
35449BVALVE, PRESSURE RELIEF
main35449-32010i199512-199608
35449CSPRING, COMPRESSION (FOR VALVE PRESSURE RELIEF)
main90501-09032i199512-199608
35450EBALL (FOR UPPER VALVE BODY)
main35495-22020i199512-199808
OD=5.535,RUBBER,AXLE CODE=A01A
main35495-22020i199808-199909
OD=5.535,RUBBER
main35495-22020i199707
OD=5.535,RUBBER,AXLE CODE=A02A
main35496-22030i199512-199909
OD=6.35,RUBBER,AXLE CODE=A01A
main35496-22030i199512-199909
OD=6.35,RUBBER
main35496-22030i199608-199909
OD=6.35,RUBBER,AXLE CODE=A02A
35599COVER, MANUAL DETENT SPRING
main35599-22020i199707-199909
main35599-22020i199512-199909
AXLE CODE=A01A
main35599-30010i199707-199808
main35599-30020i199512
main35599-30020i199608-199909
AXLE CODE=A02A
35897ATUBE, 1ST & REVERSE BRAKE, NO.1
main35897-30010i199707-199808
main35897-30020i199512-199608
8410

43 parts on this diagram · 11 diagrams in section
