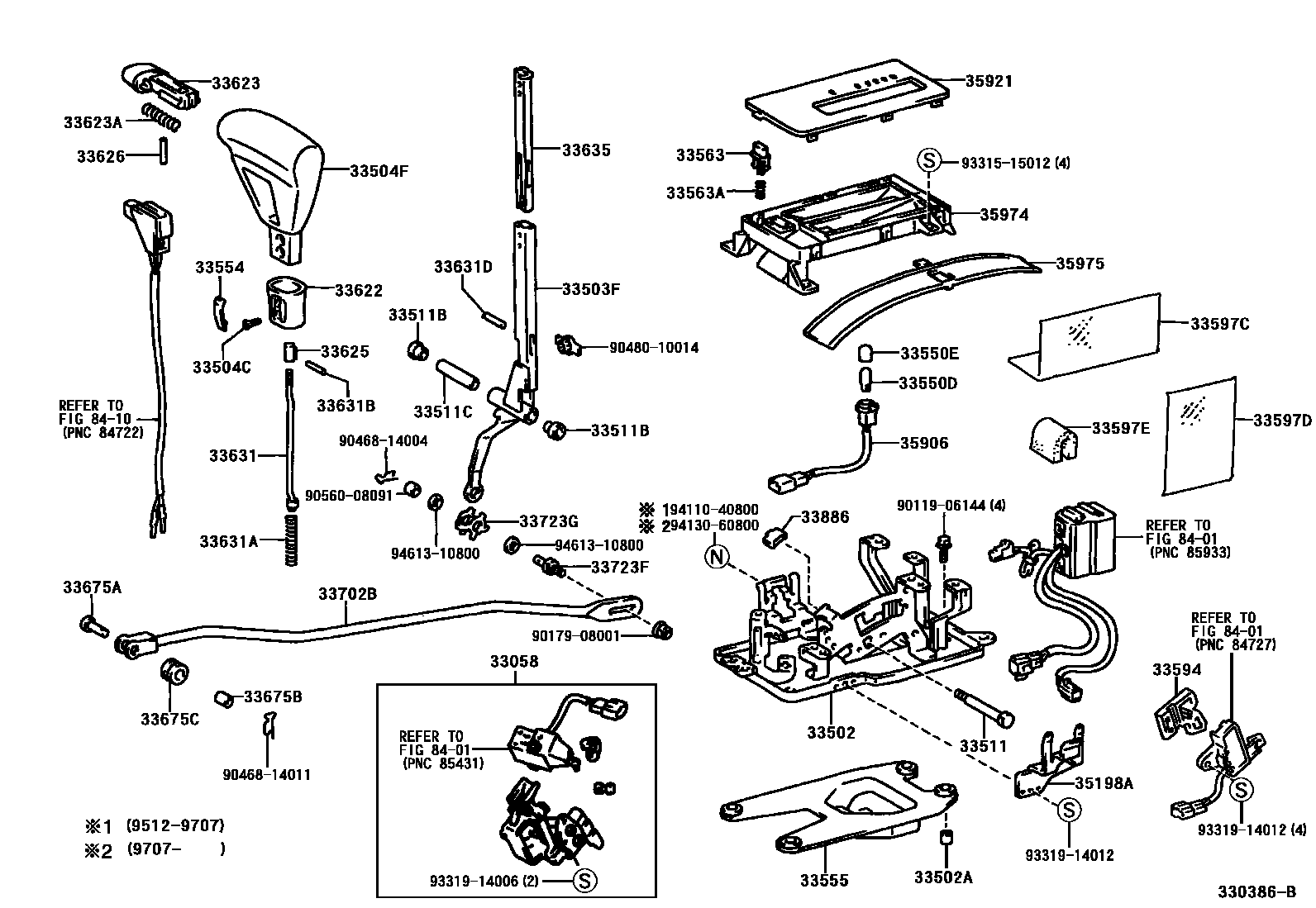

SHIFT LEVER & RETAINER
33058BRACKET SUB-ASSY, SHIFT LOCK SOLENOID
33502PLATE SUB-ASSY, SHIFT LEVER
33502ACOLLAR (FOR FLOOR SHIFT SETTING)
OD=10.8,ID=6.8
33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33504CSCREW (FOR SHIFT LEVER KNOB SETTING)
33504FKNOB SUB-ASSY, SHIFT LEVER
LEATHER,ANTELOPE,TRIM4#
LEATHER,DK. BLUE GRAY,TRIM1#
33511SHAFT, CONTROL (FOR FLOOR SHIFT)
33511BBUSH (FOR CONTROL SHAFT)
33511CCOLLAR (FOR CONTROL SHAFT)
33550DBULB, POSITION INDICATOR LAMP
12V 1.7W
33550ECAP, POSITION INDICATOR LAMP
33554CAP, SHIFT LEVER
33555BOOT, SHIFT LEVER
33563BUTTON, SHIFT LOCK RELEASE
33563ASPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON)
33594PLATE, SHIFT LOCK (FOR FLOOR SHIFT)
33597CSEAT, SHIFT LEVER NO.2 (FOR FLOOR SHIFT)
33597DSEAT, SHIFT LEVER, NO.3 (FOR FLOOR SHIFT)
33597ESEAT, SHIFT LEVER, NO.4 (FOR FLOOR SHIFT)
33622COVER, SHIFT LEVER KNOB, NO.1
33623BUTTON, SHIFT LEVER KNOB
33623ASPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
33625SLEEVE, SHIFT LEVER KNOB
33626STOPPER, SHIFT LEVER BUTTON
33631ROD, DETENT
33631ASPRING, COMPRESSION (FOR DETENT ROD)
33631BPIN, SLOTTED SPRING (FOR DETENT ROD)
33631DPIN, GROOVED (FOR DETENT ROD)
33635GUIDE, WIRE (FOR SHIFT LEVER)
33675APIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)
33675BBUSH (FOR TRANSMISSION CONTROL ROD)
33675CGROMMET (FOR TRANSMISSION CONTROL ROD)
33702BROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)
33723FSWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)
33723GBUSH (FOR FLOOR SHIFT CONTROL SHAFT)
33886STOPPER, SHIFT LEVER
35198ABRACKET, WIRE HARNESS CLAMP, NO.4
35906WIRE SUB-ASSY, INDICATOR LAMP
35921PLATE, CONTROL POSITION INDICATOR
35974HOUSING, POSITION INDICATOR, LOWER
35975COVER, SLIDE (FOR POSITION INDICATOR)
8401
8410
9011906144
9017908001
9046814004
9046814011
9048010014
9056008091
9331515012
9331914006
9331914012
9411040800
9413060800
9461310800
55 parts on this diagram · 3 diagrams in section
