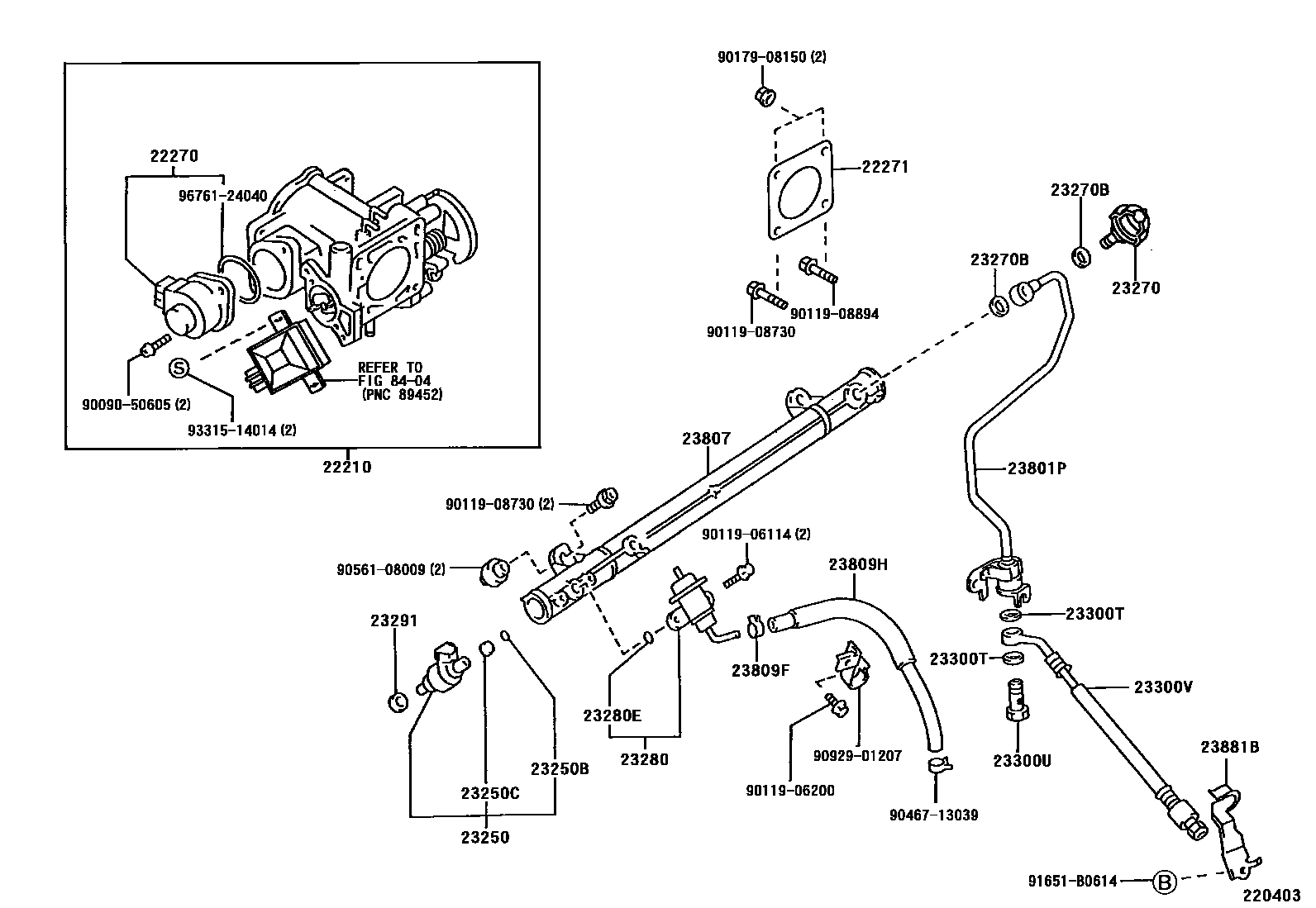

FUEL INJECTION SYSTEM
22210BODY ASSY, THROTTLE
W(VVT)
LEADED GASOLINE SPEC
W(VVT)
22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
W(VVT)
22271GASKET, THROTTLE BODY
LEADED GASOLINE SPEC
W(VVT)
W(VVT)
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
23250CGROMMET(FOR FUEL INJECTOR)
23270BGASKET(FOR PULSATION DAMPER HOSE)
23280REGULATOR ASSY, FUEL PRESSURE
23280ERING, O(FOR FUEL PRESSURE REGULATOR)
23291INSULATOR, INJECTOR VIBRATION
23300TGASKET(FOR FUEL FILTER)
23300UBOLT, UNION(FOR FUEL FILTER)
23300VHOSE, FUEL(FOR FUEL INLET)
23801PPIPE SUB-ASSY, FUEL, NO.1
W(VVT)
W(VVT)
23807PIPE SUB-ASSY, FUEL DELIVERY
23809FCLIP(FOR FUEL PIPE SUPPORT)
sub96135-51300
23809HHOSE, FUEL PIPE SUPPORT TO REGULATOR
23881BBRACKET, FUEL HOSE
8404
9009050605
main90090-50605
9011906114
main90119-06114
9011906200
main90119-06200
9011908730
main90119-08730
9011908894
main90119-08894
9017908150
main90179-08150
9046713039
main90467-13039
9056108009
main90561-08009
9092901207
main90929-01207
91651B0614
main91651-B0614
9331514014
main93315-14014
9676124040
main96761-24040
32 parts on this diagram · 6 diagrams in section
