IGNITION COIL & SPARK PLUG / GLOW PLUG

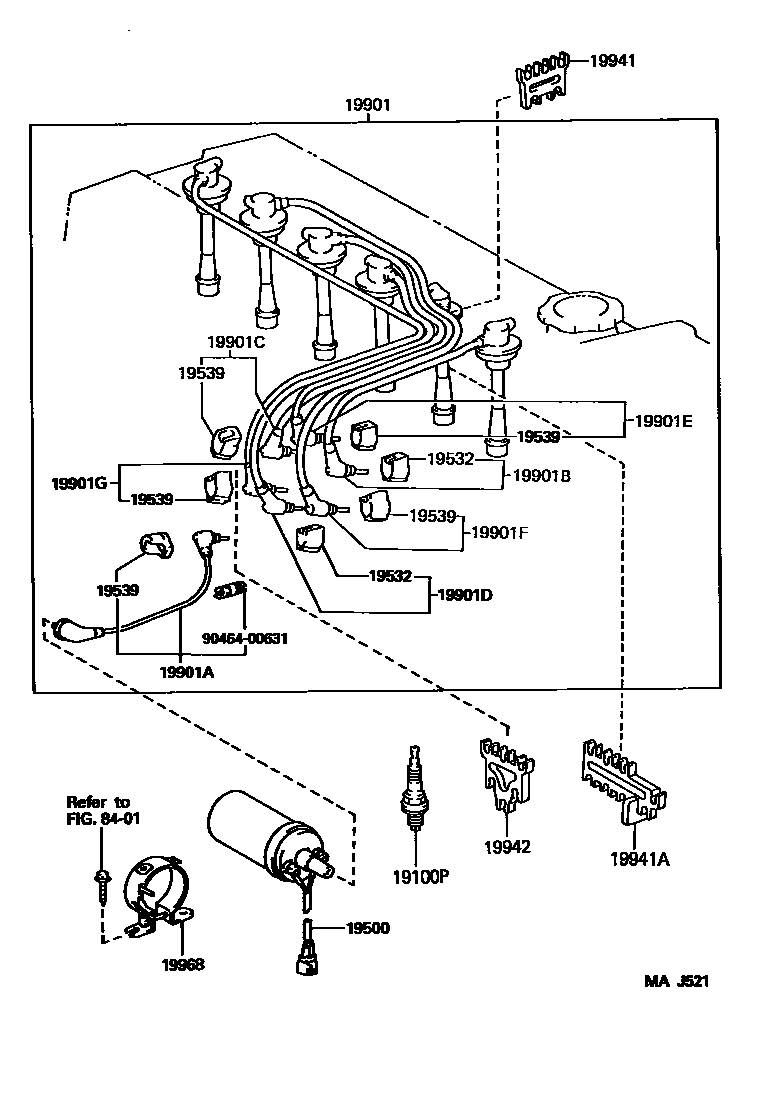

Parts diagram
19100PPLUG, SPARK
main90919-01164i199707-199808
K16R-U11
main90919-01166i199512-199909
K20R-U
main90919-01166i199609-199909
K20R-U,LEADED GASOLINE SPEC
main90919-01196i199512-199909
PK16TR11
main90919-01197i199909
BKR5EKPB11
main90919-01197i199512-199909
BKR5EKPB11,W(VVT)
19500COIL ASSY, IGNITION
main19500-70010i199707-199808
main90919-02197i199609
LEADED GASOLINE SPEC
main90919-02197i199512-199909
main90919-02216i199909
main90919-02216i199512-199909
W(VVT)
19532HOLDER, RESISTIVE CODE, NO.2
main19532-46010i199512-199909
main19532-46010i199707-199808
MARK E
main19532-50010i199707-199808
MARK B
19539HOLDER, RESISTIVE CODE, NO.4
main19539-11010i199512-199909
CORD NO.1
main19539-11010i199609-199909
LEADED SPEC,CORD NO.1
main19539-16010i199707-199808
MARK K
main19539-46010i199512-199909
CORD NO.5
main19539-46010i199609-199909
LEADED SPEC,CORD NO.5
main19539-46010i199707-199808
MARK A
main19539-50010i199609-199909
LEADED SPEC,CORD NO.3
main19539-50010i199512-199909
CORD NO.3
main19539-62010i199609-199909
LEADED SPEC,CORD NO.2,4
main19539-62010i199512-199909
CORD NO.2,4
main19539-62020i199707-199808
MARK L
19901CORD SET, COIL & SPARK, W/RESISTIVE
main90919-21594i199512-199909
main90919-21594i199609-199909
LEADED GASOLINE SPEC
main90919-21595i199707-199808
19901ACORD, COIL RESISTIVE
main90919-13465i199707-199808
main90919-13467i199512-199910
sub90919-13481
main90919-13467i199609
LEADED GASOLINE SPEC
sub90919-13481
19901BCORD, SPARK PLUG RESISTIVE, NO.1
main90919-15282i199707-199808
main90919-15325i199512-199909
main90919-15325i199609-199909
LEADED GASOLINE SPEC
main90919-15456i199512-199909
W(VVT)
sub90919-15568
main90919-15456i199909
sub90919-15568
19901CCORD, SPARK PLUG RESISTIVE, NO.2
main90919-15283i199707-199808
main90919-15326i199512-199909
main90919-15326i199609-199909
LEADED GASOLINE SPEC
19901DCORD, SPARK PLUG RESISTIVE, NO.3
main90919-15284i199707-199808
main90919-15317i199512-199909
W(VVT)
sub90919-15570
main90919-15317i199909
sub90919-15570
main90919-15327i199609-199909
LEADED GASOLINE SPEC
main90919-15327i199512-199909
19901ECORD, SPARK PLUG RESISTIVE, NO.4
main90919-15285i199707-199808
main90919-15328i199512-199909
main90919-15328i199609-199909
LEADED GASOLINE SPEC
19901FCORD, SPARK PLUG RESISTIVE, NO.5
main90919-12946i199609-199909
LEADED GASOLINE SPEC
main90919-12946i199512-199909
main90919-15286i199707-199808
main90919-15457i199909
sub90919-15569
main90919-15457i199512-199909
W(VVT)
sub90919-15569
19901GCORD, SPARK PLUG RESISTIVE, NO.6
main90919-15287i199707-199808
main90919-15329i199512-199909
main90919-15329i199609-199909
LEADED GASOLINE SPEC
19941CLAMP, RESISTIVE CORD, NO.1
main90929-01277i199512-199909
main90929-01277i199609-199909
LEADED GASOLINE SPEC
main90929-01298i199707-199808
main90929-01361i199909
main90929-01361i199512-199909
W(VVT)
19941ACLAMP(FOR RESISTIVE CORD)
main90929-01301i199707-199808
19942CLAMP, RESISTIVE CORD, NO.2
main90929-01278i199512-199909
main90929-01278i199609-199909
LEADED GASOLINE SPEC
main90929-01300i199707-199808
main90929-01360i199512-199909
W(VVT)
main90929-01360i199909
19968BRACKET, IGNITION COIL
main19968-46020i199512-199909
main19968-46020i199610
LEADED GASOLINE SPEC
main19968-70030i199707-199808
8401
9046400631
main90464-00631

18 parts on this diagram · 3 diagrams in section
