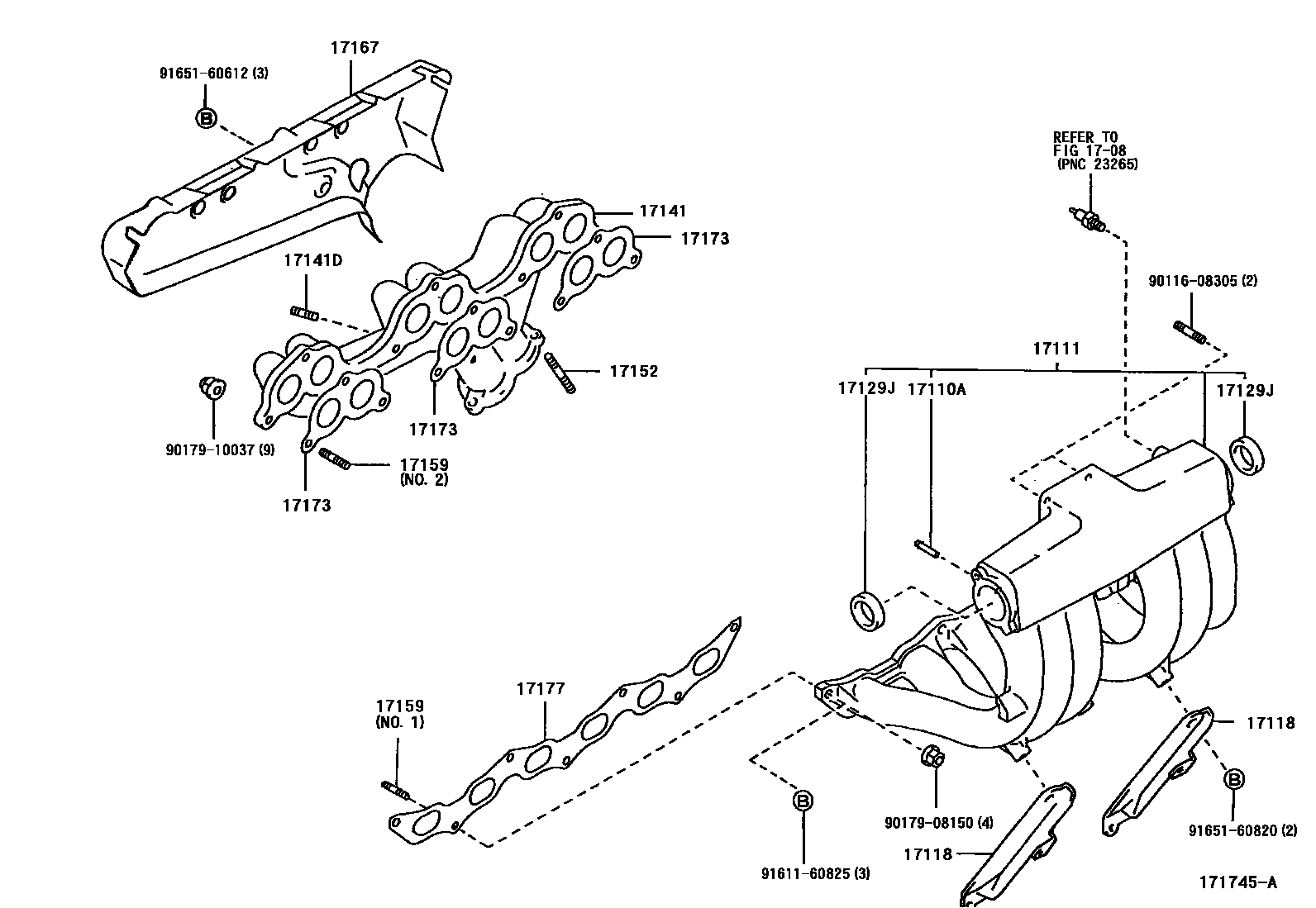

MANIFOLD
1708
17110AUNION, VACUUM HOSE
17111MANIFOLD, INTAKE
LEADED GASOLINE SPEC
W(VVT)
W(VVT)
17118STAY, MANIFOLD
17129JPLUG, TIGHT(FOR INTAKE AIR SURGE TANK)
OD=40
17141MANIFOLD, EXHAUST
LEADED GASOLINE SPEC
W(VVT)
17141DBOLT, STUD(FOR OXYGEN SENSOR)
LEADED GASOLINE SPEC
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
NO.1
NO.2
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
LEADED GASOLINE SPEC
W(VVT)
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
LEADED GASOLINE SPEC
W(VVT)
9011608305
main90116-08305
9017908150
main90179-08150
9017910037
main90179-10037
9161160825
main91611-60825
9165160612
main91651-60612
9165160820
main91651-60820
19 parts on this diagram · 3 diagrams in section
