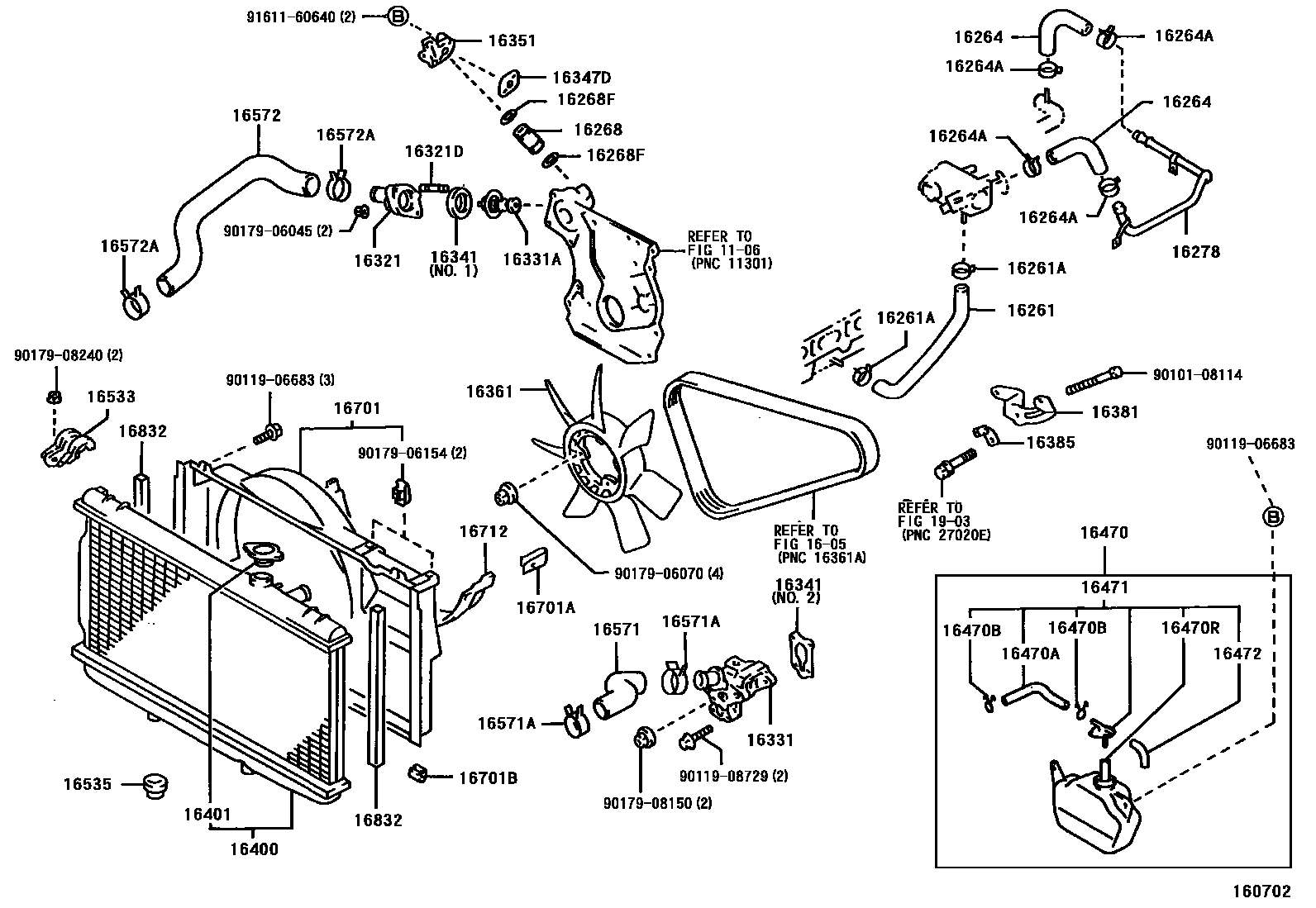

RADIATOR & WATER OUTLET
1106
1605
16261HOSE, WATER BY-PASS
16268PIPE, WATER BY-PASS, NO.1
16268FRING, O(FOR WATER BY-PASS PIPE)
16278PIPE, WATER BY-PASS, NO.2
W(VVT)
LEADED GASOLINE SPEC
W(VVT)
16321DBOLT, STUD(FOR WATER INLET)
16331OUTLET, WATER
16331ATHERMOSTAT
*WAX 82-95
*WAX 82-95
16341GASKET, WATER OUTLET
NO.1
16347DGASKET, WATER BY-PASS
16381BAR, FAN BELT ADJUSTING
16385SLIDER, FAN BELT ADJUSTING
16401CAP SUB-ASSY, RADIATOR
sub16401-20353
16470TANK ASSY, RADIATOR RESERVE
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)
L=600(*H,L=150)
16471CAP SUB-ASSY, RESERVE TANK
16472HOSE, BREATHER
16533SUPPORT, RADIATOR, UPPER
16535SUPPORT, RADIATOR, LOWER
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
sub90467-37005
16572HOSE, RADIATOR, OUTLET
16701SHROUD SUB-ASSY, FAN
16701ACLIP(FOR FAN SHROUD)
16701BCUSHION, FAN SHROUD
16832SEAL, FAN SHROUD
1903
9010108114
main90101-08114
9011906683
main90119-06683
9011908729
main90119-08729
9017906045
main90179-06045
9017906070
main90179-06070
9017906154
main90179-06154
9017908150
main90179-08150
9017908240
main90179-08240
9161160640
main91611-60640
48 parts on this diagram · 4 diagrams in section
