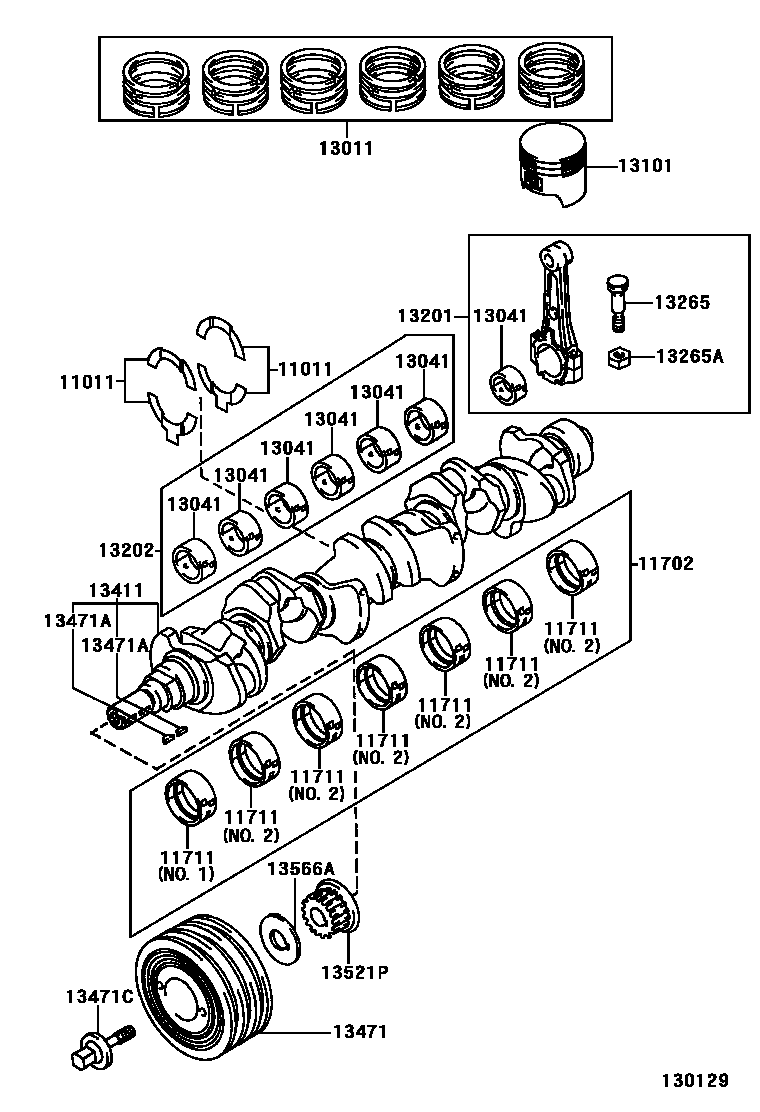

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
STD
11702BEARING SET, CRANKSHAFT
U/S 0.25
U/S 0.25
U/S 0.25
11711BEARING, CRANKSHAFT
MARK 1,NO.1
MARK 1,MARK 1,NO.1
MARK 2,MARK 2,NO.1
MARK 2,NO.1
MARK 3,NO.1
MARK 3,MARK 3,NO.1
MARK 4,NO.1
MARK 4,MARK 4,NO.1
MARK 5,MARK 5,NO.1
MARK 5,NO.1
MARK 6,MARK 6,NO.1
MARK 1,MARK 1,NO.1
MARK 2,MARK 2,NO.1
MARK 3,MARK 3,NO.1
MARK 4,MARK 4,NO.1
MARK 5,MARK 5,NO.1
MARK 1,NO.1
MARK 2,NO.1
MARK 3,NO.1
MARK 4,NO.1
MARK 5,NO.1
MARK 1,NO.1
MARK 2,NO.1
MARK 3,NO.1
MARK 4,NO.1
MARK 5,NO.1
MARK 1,NO.2
MARK 1,MARK 1,NO.2
MARK 2,NO.2
MARK 2,MARK 2,NO.2
MARK 3,MARK 3,NO.2
MARK 3,NO.2
MARK 4,MARK 4,NO.2
MARK 4,NO.2
MARK 5,MARK 5,NO.2
MARK 5,NO.2
MARK 6,MARK 6,NO.2
MARK 1,NO.2
MARK 2,NO.2
MARK 3,NO.2
MARK 4,NO.2
MARK 5,NO.2
MARK 1,NO.2
MARK 2,NO.2
MARK 3,NO.2
MARK 4,NO.2
MARK 5,NO.2
13011RING SET, PISTON
STD
STD,W(VVT)
STD,LEADED GASOLINE SPEC
STD
O/S 0.50
13041BEARING, CONNECTING ROD
MARK 1,MARK 1
MARK 2,MARK 2
MARK 3,MARK 3
MARK 4,MARK 4
MARK 5,MARK 5
MARK 1,MARK 1
MARK 2,MARK 2
MARK 3,MARK 3
MARK 4,MARK 4
MARK 5,MARK 5
MARK 3
MARK 4
MARK 5
13101PISTON SUB-ASSY, W/PIN
STD
STD
STD,W(VVT)
STD,MARK 1
STD,MARK 2
STD,MARK 3
O/S 0.50
13202BEARING SET, CONNECTING ROD
U/S 0.25
U/S 0.25
U/S 0.25
13265BOLT, CONNECTING ROD
13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)
13471PULLEY, CRANKSHAFT
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521PPULLEY, CRANKSHAFT TIMING
LEADED GASOLINE SPEC
W(VVT)
13566AGUIDE, TIMING BELT
16 parts on this diagram · 2 diagrams in section
