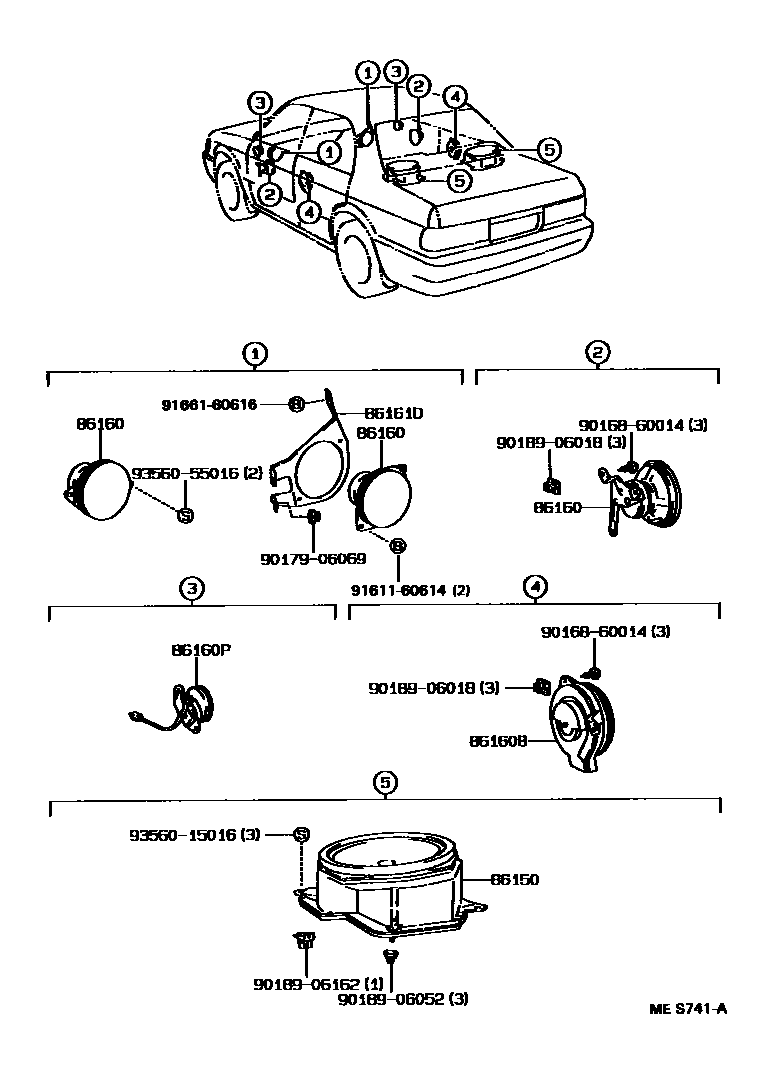

SPEAKER

86150SPEAKER ASSY, W/BOX, NO.1

main86160-30800iGS131,JZS133..Q199110-200104

RH

main86160-30810iGS131,JZS133..Q199110-200104

LH

86160SPEAKER ASSY, FRONT NO.1

main86160-30240iJZS133..D199110-199512

RH

main86160-30240iJZS133..D199110-199308

INSTRUMENT PANEL

main86160-30450iLS130,YS132199110-199308

COWL SIDE

main86160-30450iLS130,YS132199110-199512

LH

main86160-30820iGS131,JZS133..Q199110-200104

RH

main86160-30830iGS131,JZS133..Q199110-200104

LH

main86160-30840iGS131,JZS133..G,J199110-200104

RH

main86160-30850iGS131,JZS133..G,J199110-200104

LH

86160BSPEAKER ASSY, REAR

main86160-30750iGS131,JZS133..Q199110-200104

RH

main86160-30760iGS131,JZS133..Q199110-200104

LH

main86160-30770iGS131,JZS133..G,J199110-200104

RH

main86160-30780iGS131,JZS133..G,J199110-200104

LH

86160PSPEAKER ASSY, FRONT NO.2

main86160-30860iGS131,JZS133..Q199110-200104

RH

main86160-30870iGS131,JZS133..Q199110-200104

LH

86161DBRACKET, SPEAKER MOUNTING, NO.1

main86161-30010iJZS133..D199110-199512

9016860014

main90168-60014

9017906069

main90179-06069

9018906018

main90189-06018

9018906052

main90189-06052

9018906152

main90189-06152

9161160614

main91611-60614

9166160616

main91661-60616

9356015016

main93560-15016

9356055016

main93560-55016

14 parts on this diagram · 1 diagram in section
