ABS & VSC

85999MBRACKET, RELAY

main85999-30410iJZS133..RHD..4FC..Q199110-199308

main85999-30450iJZS133..RHD..Q199308-199512

88263ARELAY, SKID CONTROL

main88263-12070iJZS133..RHD..4FC..Q199110-199308

sub88263-12080

main88263-35070iJZS133..RHD..Q199308-199512

SKID

main89633-50030iJZS133..RHD..Q199308-199512

TRACTION

sub28610-64110

88267BRACKET, SKID CONTROL COMPUTER, NO.1

main88267-30150iJZS133..RHD..Q199308-199512

88268BRACKET, SKID CONTROL COMPUTER, NO.2

main88268-30140iJZS133..RHD..Q199308-199512

88278ACUSHION, SKID CONTROL COMPUTER

main88278-30150iJZS133..RHD..Q199308-199512

89411SENSOR, SPEED

main89542-30140iJZS133..RHD..4FC..Q199110-199512

FRONT RH

sub89542-30141

main89543-30140iJZS133..RHD..4FC..Q199110-199512

FRONT LH

89540COMPUTER ASSY, SKID CONTROL

main89540-30140iJZS133..RHD..4FC..Q199110-199308

main89541-30060iJZS133..RHD..Q199308-199512

89544SENSOR, SKID CONTROL

main89544-30010iJZS133..RHD..4FC..Q199110-199512

89544ARING, O (FOR SKID CONTROL SENSOR)

main90301-11008iJZS133..RHD..4FC..Q199110-199512

89548ROTOR, SKID CONTROL SENSOR

main89548-14010iJZS133..RHD..4FC..Q199110-199512

89548AKEY, WOODRUFF (FOR SKID CONTROL SENSOR ROTOR)

main90280-03005iJZS133..RHD..4FC..Q199110-199512

89638COVER, BRAKE CONTROL COMPUTER

main89638-30010iJZS133..RHD..4FC..Q199110-199512

9011906120

main90119-06120

9011908146

main90119-08146

9017906070

main90179-06070

9046400295

main90464-00295

9094901109

main90949-01109

9094901110

main90949-01110

9165140820

main91651-40820

9326954010

main93269-54010

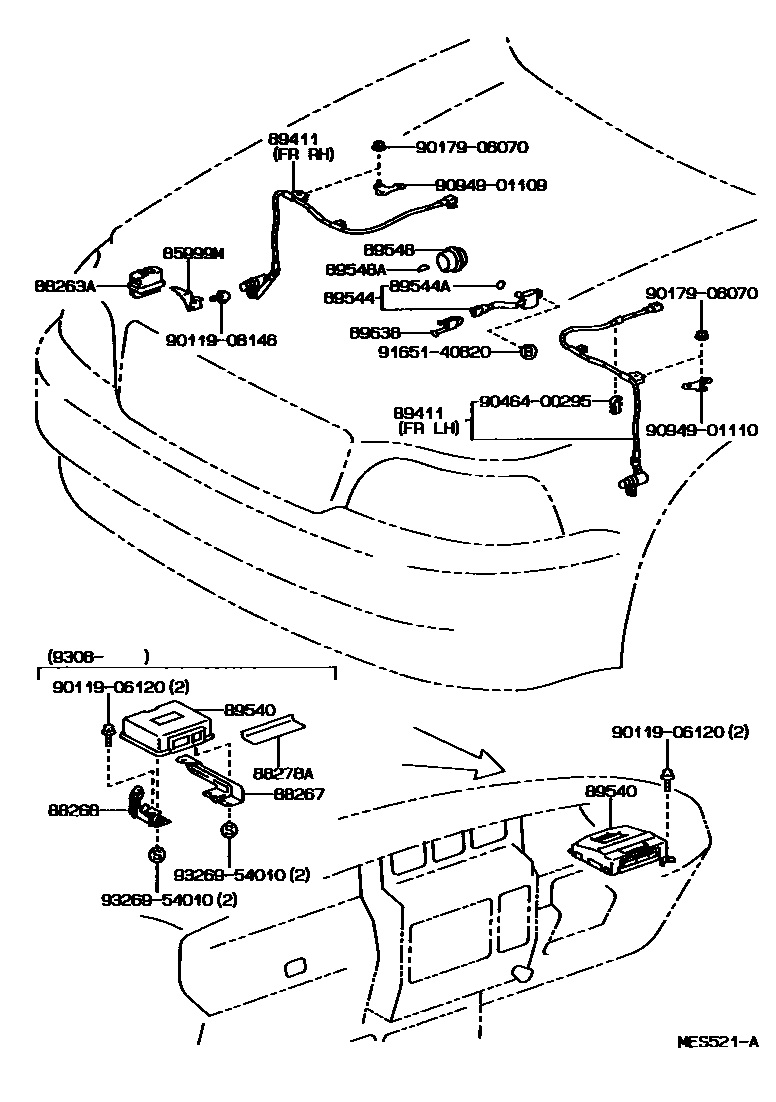

20 parts on this diagram · 1 diagram in section
