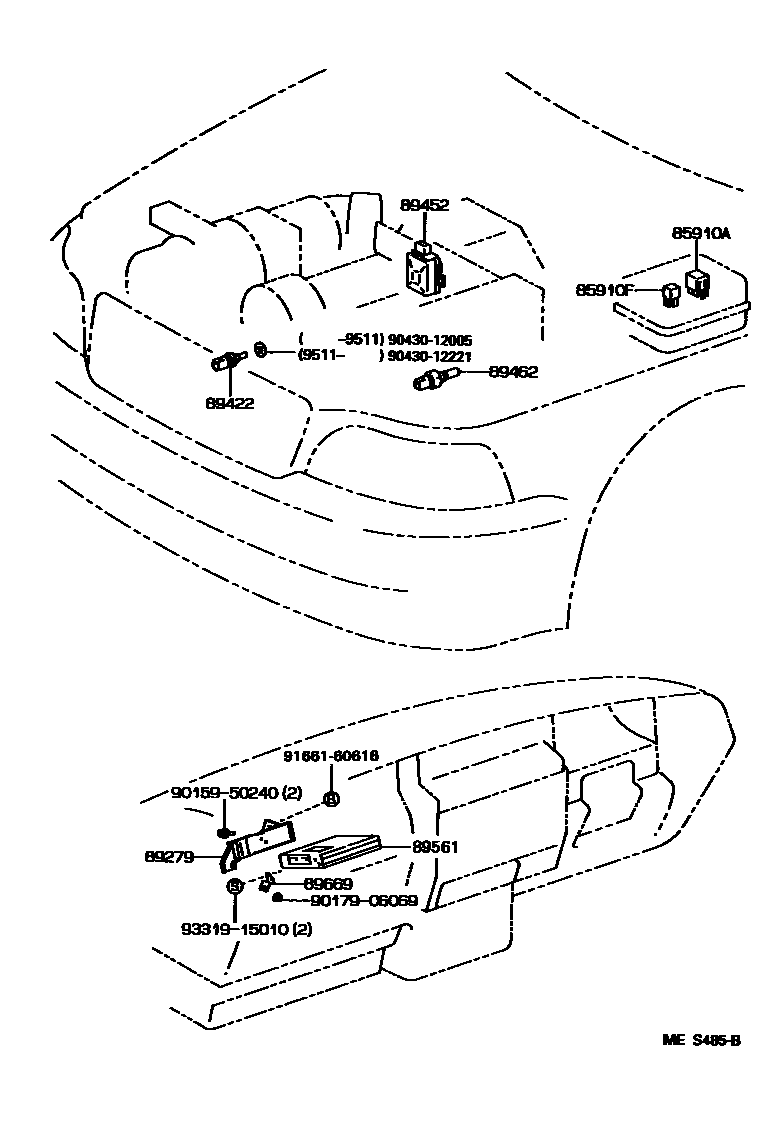

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-30050iGS131199110

85910FRELAY, COMPUTER (FOR EFI)

main90987-02009iGS131,JZS133199110-200104

main90987-02009iGS131;JZS133..LHD..5F199210-199308

W(*TRC)

main90987-02010iJZS133..4FC;JZS133..5F..Q199110-199308

sub90987-02009

89279COVER, ENGINE CONTROL COMPUTER

main89279-30030iGS131..RHD199110-199512

main89279-30040iGS131..LHD199110

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iGS131,JZS133199110-200104

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-22090iJZS133199408-200104

main89452-30110iGS131199110-199904

main89452-33010iJZS133199110-199408

sub89452-22090

sub89452-32060

89462SWITCH, START INJECTOR TIME

main89462-20030iGS131199110

89561COMPUTER, FUEL INJECTION

main89561-30150iGS131199110

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-30020iGS131..RHD199110-199512

main89669-30030iGS131..LHD199110-199904

main89669-30060iJZS133..EECC;JZS133..5F..Q199110-199308

main89669-30060iJZS133..RHD..4FC..GEN..Q199210-199512

SINGAPORE SPEC OR HONG KONG SPEC OR THAILAND SPEC

main89669-30070iJZS133..RHD..5F..G;JZS133..RHD..4FC..GEN199110-200104

main89669-30090iJZS133..LHD199110-199512

9015950240

main90159-50240

9017906069

main90179-06069

9043012005

main90430-12005

9043012221

main90430-12221

9166160616

main91661-60616

9331915010

main93319-15010

14 parts on this diagram · 2 diagrams in section
