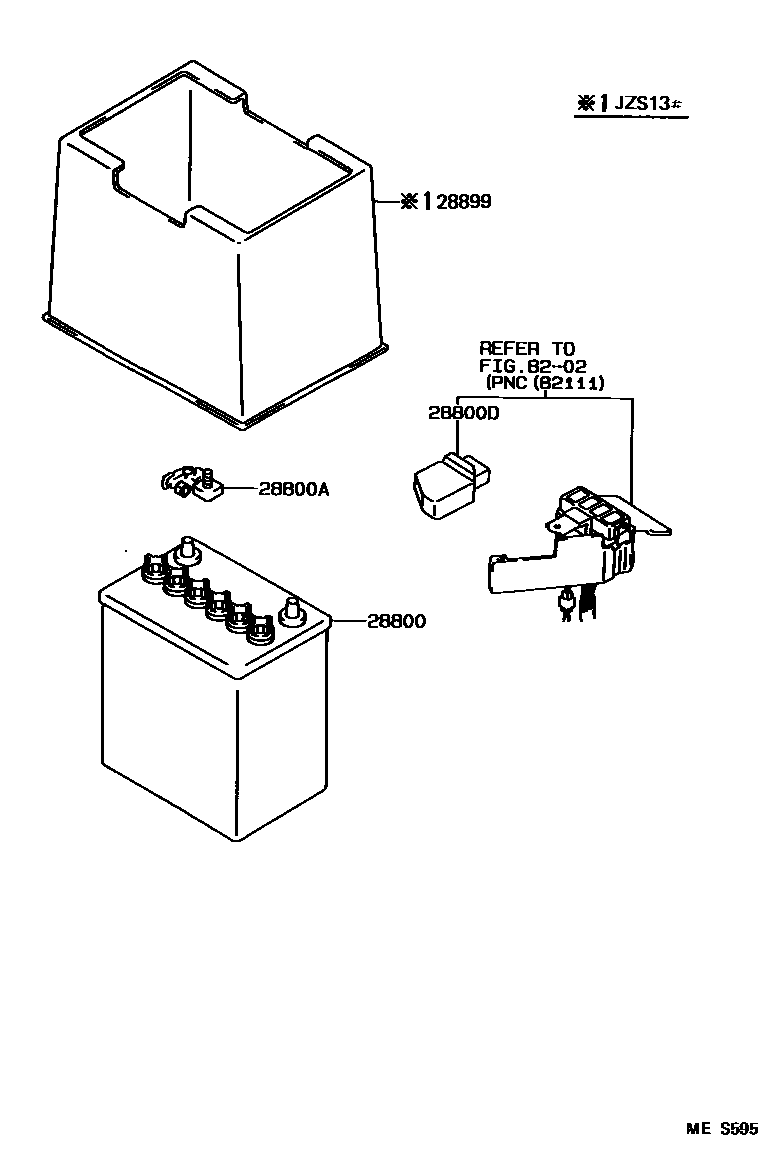

BATTERY & BATTERY CABLE

28800BATTERY

main28800-26040i4Y..YS132199110-199512

34B19L

sub28800-26050

main28800-41110i1GFE..GS131..RHD199110-199512

55D26L

sub28800-73010

main28800-42010i1GFE..GS131..LHD..Q;2JZGE..JZS133..RHD..Q;1GFE,4Y..GS131,YS132..MTM199308-200104

75D31L

sub28800-42020

main28800-42030i2JZGE,4Y..JZS133,YS132..GCC,GEN199110-199308

55D23L

sub28800-64010

main28800-42080i2JZGE..JZS133..GCC,GEN199110-200104

75D26L

sub28800-42090

main28800-42130i1GFE,4Y..GS131,YS132..MTM;2JZGE..JZS133..RHD..GEN..Q199110-199308

75D31L

sub28800-42010

main28800-54030i2L..LS130199110-199512

95D31L

sub28800-64180

main28800-54330i2L..LS130..RHD199110-199512

140E41L

main28800-64010i2JZGE,4Y..JZS133,YS132199308-200104

55D23L

sub28800-42041

main28800-64130i2L..LS130199110-199512

80D26L

sub28800-64132

main28800-64141i2L..LS130199305-199308

80D26L

sub28800-64130

main28800-72010i4Y..YS132199110-199512

34B19L(S)

sub28800-72020

28800ATERMINAL, BATTERY POSITIVE

main90982-05041i4Y..YS132199110-199512

main90982-05042i4Y..YS132199110-199512

BATTERY(55D23L-MF OR 75D31L-MF OR 34B19L)

main90982-05042i1GFE,2JZGE,2L..GS131,JZS133,LS130199110-200104

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-16020i1GFE,2JZGE,4Y..GS131,JZS133,YS132199110-200104

main82821-30140i2L..LS130199110-199512

28899INSULATOR, BATTERY

main28899-42040i2JZGE..JZS133199110-200104

75D26L

main28899-70010i2JZGE..JZS133199110-200104

8202

5 parts on this diagram · 1 diagram in section
