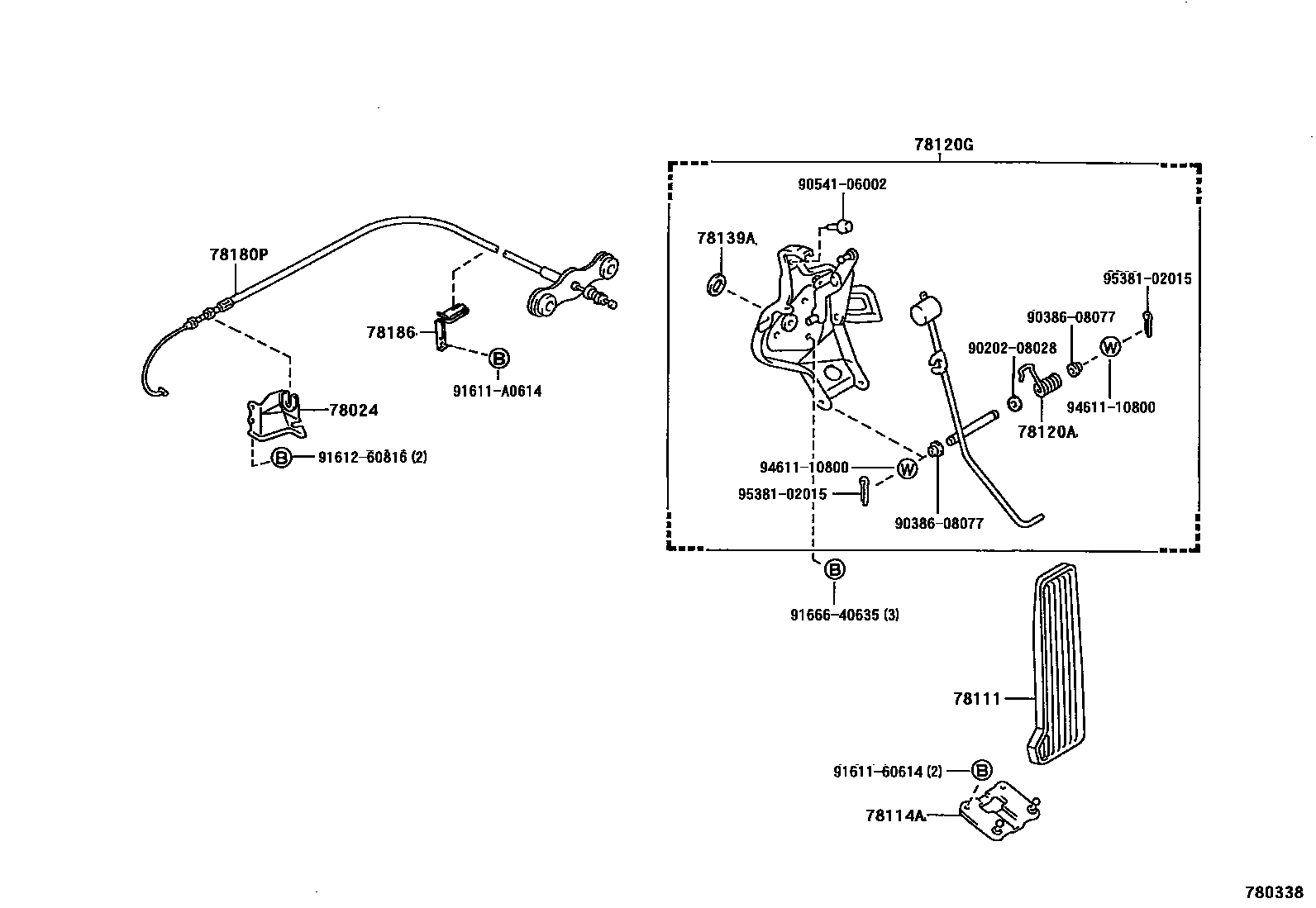

ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1 0006 1

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-30100iGS131199110-199610

sub78024-30101

main78024-30101iGS131199610

main78024-30141iLS130199110-199403

sub78024-30142

main78024-30142iLS130199403-199512

78111PEDAL, ACCELERATOR

main78111-30080iGS131,JZS133,LS130..RHD199110-199512

sub78111-30081

main78111-30090iJZS133..EECC199110-199308

COLD AREA SPEC

main78111-30090iGS131,JZS133,LS130,YS132..LHD199110-200104

78114ABRACKET, ACCELERATOR PEDAL SUPPORT

main78114-30050iGS131,JZS133,LS130..RHD199110-199512

78120ASPRING, COMPRESSION (FOR ACCELERATOR LINK ROD)

main90508-18016iGS131,JZS133..RHD..4FC199110-199512

main90508-23025iGS131,JZS133..LHD..4FC199110-199904

main90508-23026iJZS133..EECC199110-199308

COLD SPEC

main90508-23026iLS130..RHD199110-200104

main90508-29010iGS131,JZS133..RHD..5F199110-200104

main90508-35008iGS131,JZS133,LS130,YS132..LHD..MTM199110-199512

78120GROD ASSY, ACCELERATOR PEDAL

main78120-30531iGS131,JZS133..RHD..5F199110-199512

main78120-30541iJZS133..EECC199110-199308

COLD AREA SPEC

main78120-30551iGS131,JZS133..RHD..4FC199110-199512

main78120-30591iLS130..RHD199110-199512

main78120-30670iGS131,JZS133..LHD..4FC199110-199904

main78120-30680iGS131,JZS133,LS130,YS132..LHD..MTM199110-199512

main78120-3A050iJZS133..Q199512-200104

main78120-3A060iJZS133..G199512-200104

78139ASEAL, ACCELERATOR PEDAL ROD BRACKET, NO.2

main78139-30060iGS131,JZS133,LS130..RHD199110-200104

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-3A340iJZS133..LHD199110-199512

main78180-3A380iGS131..RHD199110-199512

main78180-3A420iLS130..RHD199110-199512

main78180-3A430iLS130..LHD199110-199308

main78180-3A440iGS131..LHD199110-199904

main78180-3A450iYS132199110-199512

main78180-3A460iJZS133..RHD199110-200104

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-30080iGS131,JZS133,LS130,YS132..LHD199110-199904

main78186-30110iGS131,JZS133..RHD199110-200104

9020208028

main90202-08028

9038608077

main90386-08077

9054106002

main90541-06002

9161160614

main91611-60614

91611A0614

main91611-A0614

9161260816

main91612-60816

9166640635

main91666-40635

9461110800

main94611-10800

9538102015

main95381-02015

17 parts on this diagram · 5 diagrams in section
