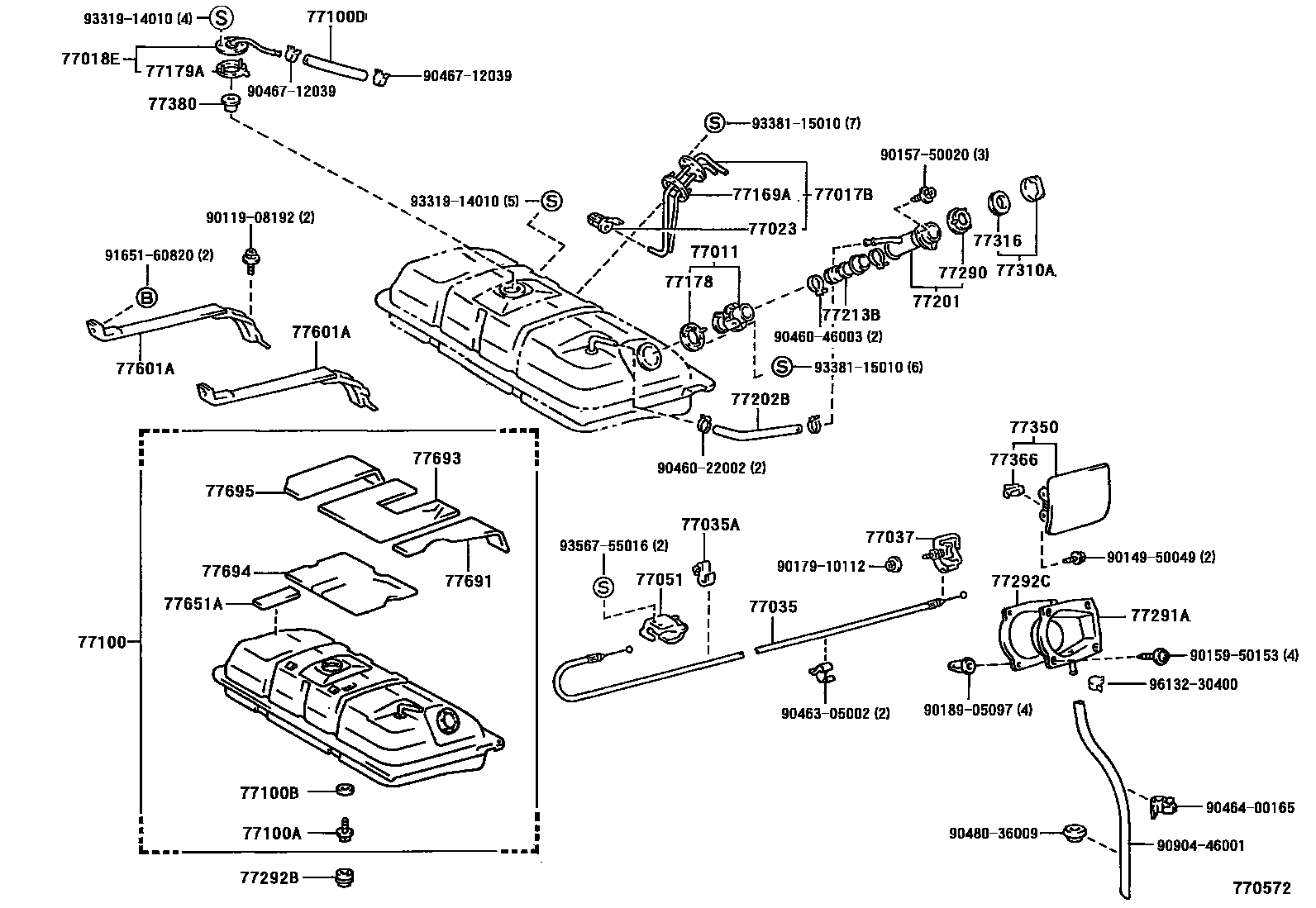

FUEL TANK & TUBE
77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77017BTUBE SUB-ASSY, FUEL TANK VENT
77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT
77023FILTER SUB-ASSY, FUEL SUCTION TUBE
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035ACLAMP (FOR FUEL LID LOCK CONTROL CABLE)
ORANGE
BLACK
77037LOCK SUB-ASSY, FUEL FILLER OPENING LID
77051LEVER SUB-ASSY, FUEL LID OPEN
main77051-30060-J0iGS131..RHD;JZS133..5F..(DLX,ROY);GS131,JZS133..LHD..5F..G;JZS133,LS130,YS132..4F,4FC,4H199110-200104
DK.BLUE,TRIM8#
sub77051-30060
77100TANK ASSY, FUEL
SINGAPORE SPEC
77100APLUG(FOR FUEL TANK)
77100BGASKET(FOR FUEL TANK)
77100DHOSE, FUEL, NO.1(FOR FUEL TANK)
77169AGASKET, FUEL SUCTION TUBE SET
77178GASKET, FUEL TANK FILLER PIPE, LOWER
77179AGASKET, FUEL TANK BREATHER TUBE
77201PIPE SUB-ASSY, FUEL TANK INLET
COLD SPEC
HONG KONG SPEC OR SINGAPORE SPEC
HONG KONG SPEC
SINGAPORE SPEC OR HONG KONG SPEC OR THAILAND SPEC
sub77201-30230
77202BHOSE, FUEL, NO.2 (FOR BREATHER TUBE)
L=320
L=220
77213BHOSE, FUEL TANK TO FILLER PIPE
L=202
L=149
77290SHIELD ASSY, FUEL TANK FILLER PIPE
77291ASHIELD, FUEL TANK FILLER PIPE
77292BSHIELD, FUEL TANK DRAIN PLUG
77292CSHIELD, FUEL TANK FILLER PIPE, NO.2
77316GASKET, FUEL TANK CAP
W/O(KEY)
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77380VALVE ASSY, FUEL CUT OFF
77601ABAND SUB-ASSY, FUEL TANK, NO.1
77651ACUSHION, FUEL TANK, NO.1
77691SHEET, FUEL TANK SILENCER, UPPER NO.1
77693SHEET, FUEL TANK SILENCER, UPPER NO.2
77694SHEET, FUEL TANK SILENCER, LOWER NO.2
77695SHEET, FUEL TANK SILENCER, UPPER NO.3
9011908192
main90119-08192
9014950049
main90149-50049
9015750020
main90157-50020
9015950153
main90159-50153
9017910112
main90179-10112
9018905097
main90189-05097
9046022002
main90460-22002
9046046003
main90460-46003
9046305002
main90463-05002
9046400165
main90464-00165
9046712039
main90467-12039
9048036009
main90480-36009
9090446001
main90904-46001
9165160820
main91651-60820
9331914010
main93319-14010
9338115010
main93381-15010
9356755016
main93567-55016
9613230400
main96132-30400
51 parts on this diagram · 7 diagrams in section
