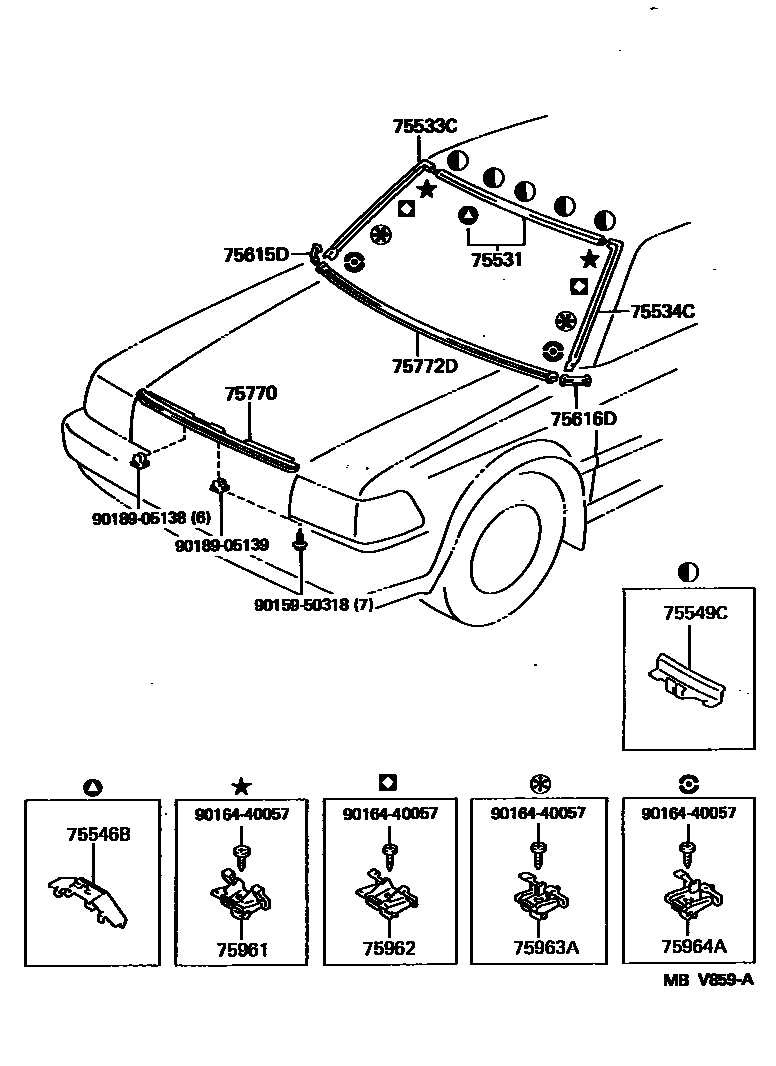

FRONT MOULDING

75531MOULDING, WINDSHIELD, OUTER UPPER

main75531-30180iGS131,JZS133,LS130,YS132199110-200104

main75531-30180iJZS133..EECC199110-199308

COLD AREA SPEC

75533CGARNISH, FRONT PILLAR, OUTER RH

main75533-30210iGS131,JZS133,LS130,YS132199110-200104

main76053-30010iJZS133..EECC199110-199308

COLD AREA SPEC

75534CGARNISH, FRONT PILLAR, OUTER LH

main75534-30190iGS131,JZS133,LS130,YS132199110-200104

main75534-30190iJZS133..EECC199110-199308

COLD AREA SPEC

75546BCLIP, WINDSHIELD OUTSIDE MOULDING, NO.2

main75546-30050iGS131,JZS133,LS130,YS132199110-200104

75549CFASTENER, WINDSHIELD OUTSIDE MOULDING, NO.2

main75549-20090iGS131,JZS133,LS130,YS132199110-200104

75615DMOULDING, FRONT FENDER, REAR RH

main75615-30120iGS131,JZS133,LS130,YS132..ROY,SAL,STD199110-200104

75616DMOULDING, FRONT FENDER, REAR LH

main75616-30120iGS131,JZS133,LS130,YS132..ROY,SAL,STD199110-200104

75770MOULDING ASSY, HOOD, FRONT

main75770-30250iLS130,YS132199110-199308

sub75770-30251

main75770-30251iLS130,YS132199308-199512

main75770-30260iGS131,JZS133199110-199308

sub75770-30261

main75770-30261iGS131,JZS133199308-199512

main75770-30320iGS131,JZS133199512-200104

75772DMOULDING, HOOD, REAR

main75772-30091iGS131,JZS133,LS130,YS132..ROY,SAL,STD199110-200104

75961CLIP, WINDSHIELD OUTSIDE MOULDING, NO.4

main75961-30010iGS131,JZS133,LS130,YS132199110-200104

75962CLIP, WINDSHIELD OUTSIDE MOULDING, NO.5

main75962-30010iGS131,JZS133,LS130,YS132199110-200104

75963ACLIP, FRONT PILLAR OUTER GARNISH, NO.3

main75963-30010iGS131,JZS133,LS130,YS132199110-200104

75964ACLIP, FRONT PILLAR OUTER GARNISH, NO.4

main75964-30010iGS131,JZS133,LS130,YS132199110-200104

9015950318

main90159-50318

9016440057

main90164-40057

9018905138

main90189-05138

9018905139

main90189-05139

17 parts on this diagram · 1 diagram in section
