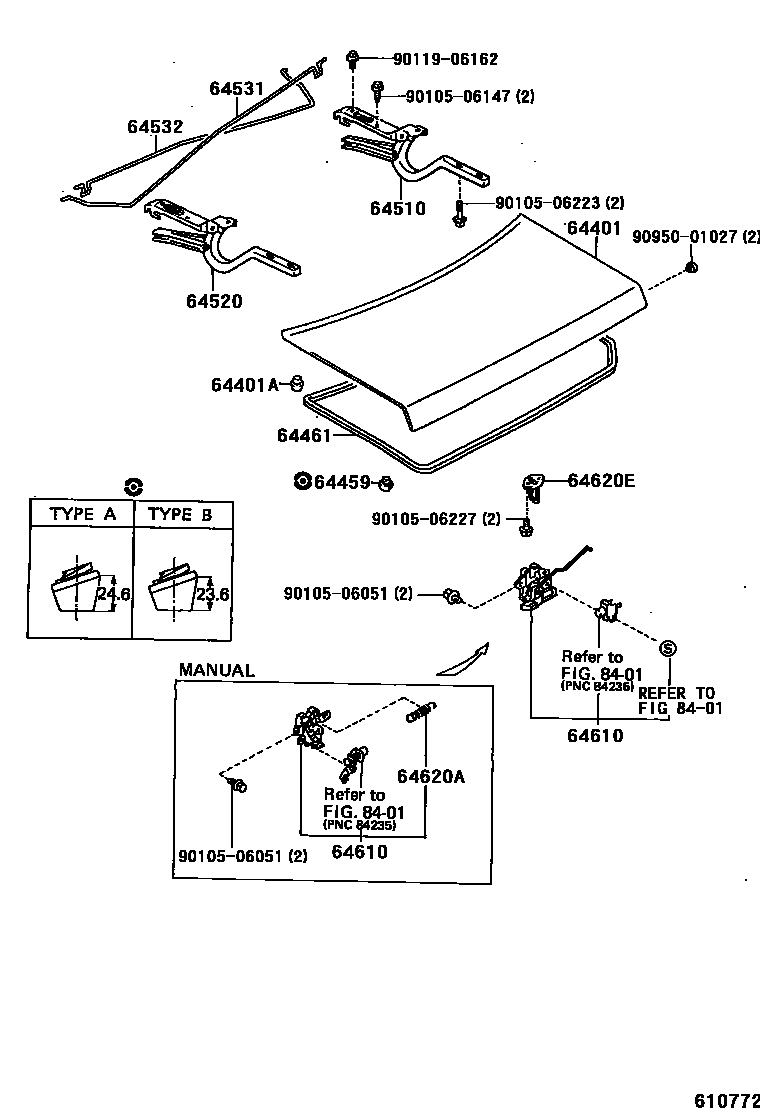

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-30790iGS131,JZS133,LS130,YS132199110-200104

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-08018×2iGS131,JZS133,LS130,YS132199110-199404

main90950-01354×2iGS131,JZS133,LS130,YS132199404-200104

64459CUSHION, LUGGAGE COMPARTMENT DOOR

main64459-30010×2iGS131,JZS133,LS130,YS132199110-200104

TYPE A

main64459-30020×2iGS131,JZS133,LS130,YS132199110-200104

TYPE B

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-30230iGS131,JZS133,LS130,YS132199110-200104

64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-30160iGS131,JZS133,LS130,YS132199110-200104

sub64510-30180

64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-30110iGS131,JZS133,LS130,YS132199110-200104

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-30160iGS131,JZS133,LS130,YS132199110-200104

main64531-30190iJZS133..EECC199110-199308

W(LUGGAGE DOOR TRIM)

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-30160iGS131,JZS133,LS130,YS132199110-200104

main64532-30210iJZS133..EECC199110-199308

W(LUGGAGE DOOR TRIM)

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-30080iLS130..RHD;GS131,JZS133199110-200104

main64610-30090iLS130,YS132..LHD199110-199512

64620ASPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)

main90506-05001iLS130,YS132..LHD199110-199308

64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR

main64620-32050iGS131,JZS133,LS130,YS132199110-200104

8401

9010506051

main90105-06051

9010506147

main90105-06147

9010506223

main90105-06223

9010506227

main90105-06227

9011906162

main90119-06162

9095001027

main90950-01027

18 parts on this diagram · 1 diagram in section
