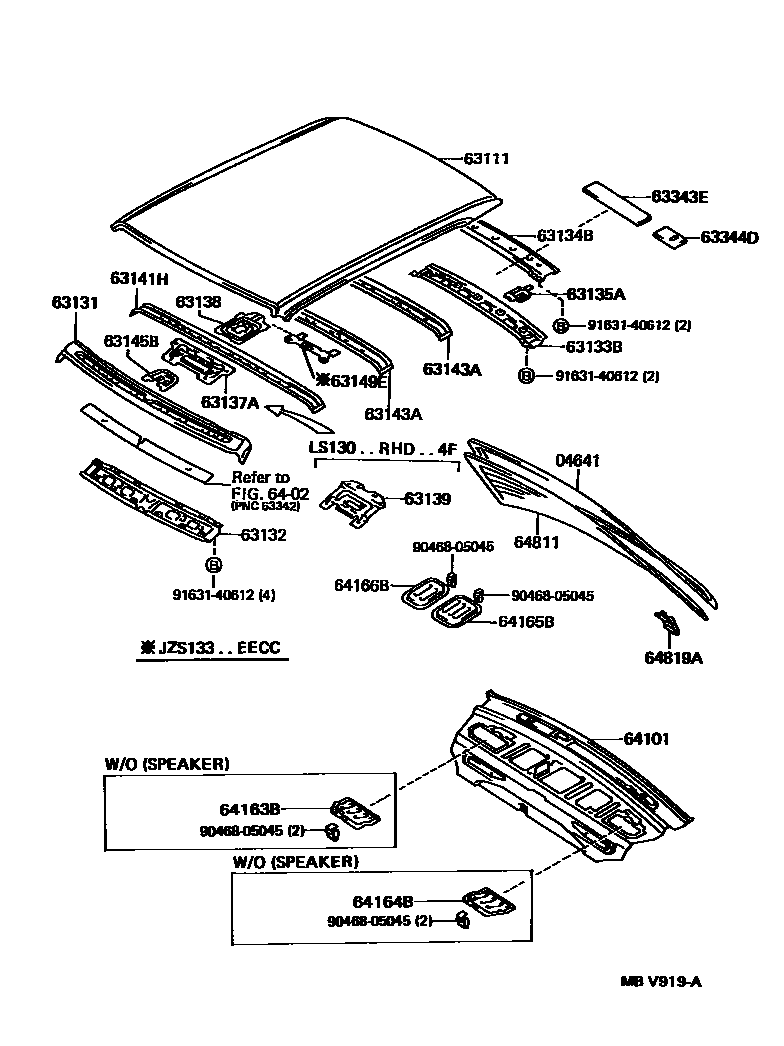

ROOF PANEL & BACK WINDOW GLASS

04641DAM KIT, BACK WINDOW GLASS

main64813-30170iGS131,JZS133,LS130,YS132199110-200104

L=440

main64813-30180iGS131,JZS133,LS130,YS132199110-200104

L=2950

63111PANEL, ROOF

main63111-30280iGS131,JZS133,LS130,YS132199110-200104

63131PANEL, WINDSHIELD HEADER, OUTER

main63131-30080iGS131,JZS133,LS130,YS132199110-199308

63132PANEL, WINDSHIELD HEADER, INNER

main63132-30190iGS131,JZS133,LS130,YS132199110-199308

63133BFRAME, BACK WINDOW

main63133-30190iGS131,JZS133,LS130,YS132199110-199308

63134BPANEL, BACK WINDOW, UPR OUTER

main63134-30060iGS131,JZS133,LS130,YS132199110-199308

63135AFRAME, BACK DOOR OPENING, LOWER

main63135-30010iGS131,JZS133,LS130,YS132199110-199308

RH

main63136-30010iJZS133,LS130,YS132..B,D199308-199512

LH

63137ABRACKET, DOME LAMP, NO.1

main63137-30160iGS131,JZS133..ROY,SAL199110-199308

63138BRACKET, DOME LAMP, NO.2

main63138-30050iJZS133,LS130,YS132..B,D199110-199512

63139BRACKET, DOME LAMP, NO.3

main63139-30060iLS130..RHD..4F199110-199512

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-30120iGS131,JZS133,LS130,YS132199110-199308

63143AREINFORCEMENT, ROOF PANEL

main63143-30120×2iGS131,JZS133,LS130,YS132199110-199308

63145BREINFORCEMENT, WINDSHIELD HEADER PANEL

main63145-30080iGS131,JZS133,LS130,YS132199110-199308

63149EBRACKET, ROOF PANEL REINFORCEMENT, NO.2

main63149-30010iJZS133..EECC199110-199308

63343EPAD, ROOF SILENCER, NO.3

main63343-30140iLS130..4H;LS130..LHD;GS131,JZS133,YS132199110-199308

63344DPAD, ROOF SILENCER, NO.4

main63344-30060×2iLS130..4H;LS130..LHD;GS131,JZS133,YS132199110-199308

6402

64101PANEL SUB-ASSY, UPPER BACK

main64101-30240iJZS133..GCC,GEN;GS131,LS130,YS132..MTM199110-199512

main64101-30250iGS131..Q;JZS133..EECC199110-199512

W(POWER SLIDE REAR SEAT)

64163BCOVER, BACK CORNER, RH

main64163-30010iGS131,JZS133,LS130,YS132..B,D,G,J199110-200104

64164BCOVER, BACK CORNER, LH

main64164-30010iGS131,JZS133,LS130,YS132..B,D,G,J199110-200104

64165BCOVER, UPPER BACK PANEL HOLE, NO.1

main64165-30020iGS131..RHD;GS131..LHD..G;JZS133,LS130,YS132..B,D,G,J199110-200104

64166BCOVER, UPPER BACK PANEL HOLE, NO.2

main64166-30020iGS131..RHD;GS131..LHD..G;JZS133,LS130,YS132..B,D,G,J199110-200104

64811GLASS, BACK WINDOW

main64801-30530iJZS133..EECC199110-199308

*EHTT,T=3.5,BLUE

main64801-30540iJZS133..EECC199110-199308

*EHTT,T=3.5,BRONZE

main64801-30570iJZS133,LS130,YS132..B,D199110-199512

*EHTT,T=3.5,BLUE

main64801-30670iGS131..RHD;JZS133..(ROY,SAL)..(GCC,GEN)199110-199512

*EHTT,T=3.5,BLUE

main64801-30680iJZS133..4FC..(GCC,GEN);GS131,JZS133..LHD..5F..(G,J)199110-199204

*EHTT,T=3.5,BRONZE

main64801-30860iLS130,YS132199110-199308

*TEM,T=3.5

main64801-3A240iGS131,JZS133199512-200104

*EHTT,T=3.5,GREEN

64819ASPACER, BACK WINDOW GLASS, NO.2

main64819-30010×2iGS131,JZS133,LS130,YS132199110-200104

9046805045

main90468-05045

9163140612

main91631-40612

26 parts on this diagram · 1 diagram in section
