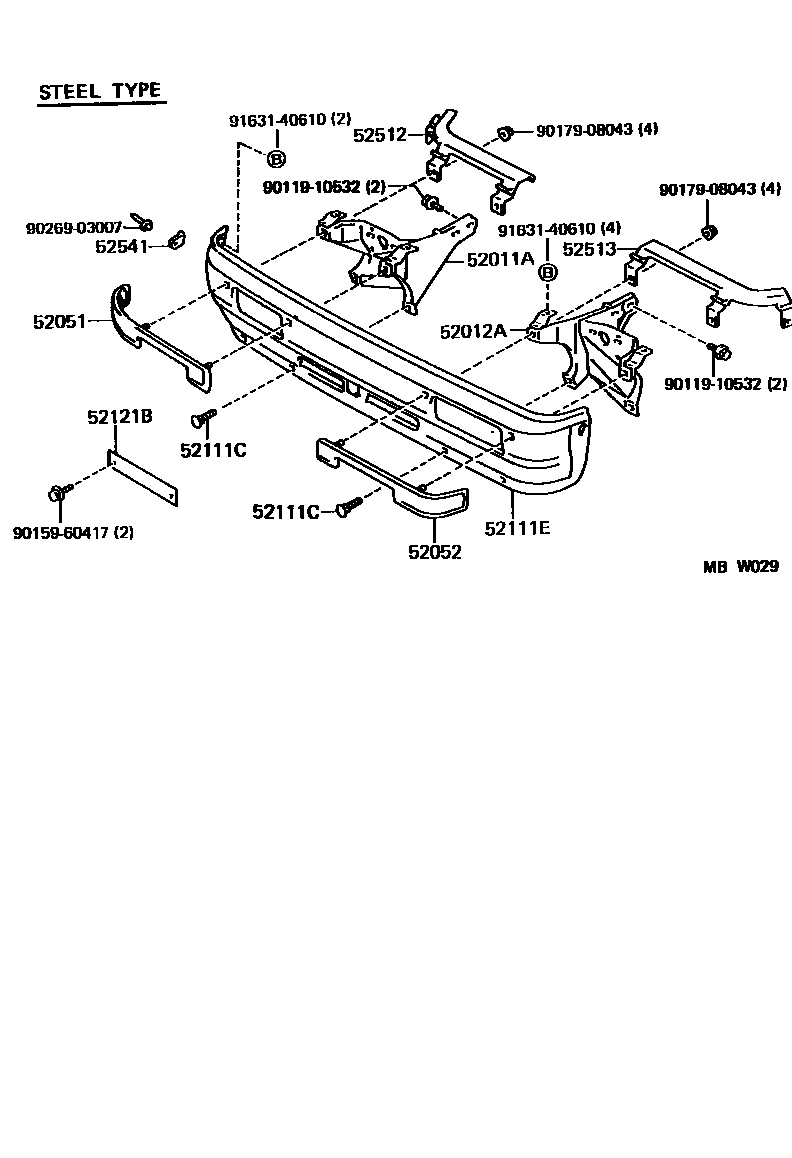

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

52011AARM SUB-ASSY, FRONT BUMPER, RH

main52011-30150iLS130,YS132199110-199512

52012AARM SUB-ASSY, FRONT BUMPER, LH

main52012-30160iLS130,YS132199110-199512

52051PAD SUB-ASSY, FRONT BUMPER, RH

main52051-30080iLS130,YS132199110-199512

52052PAD SUB-ASSY, FRONT BUMPER, LH

main52052-30060iLS130,YS132199110-199512

52111CBOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)

main90112-08031iLS130,YS132199110-199512

52111EBAR, FRONT BUMPER

main52111-30180iLS130,YS132199110-199512

52121BBRACKET, FRONT LICENCE PLATE MOUNTING

main52121-30080iLS130,YS132199110-199512

52512FILLER, FRONT BUMPER, RH

main52512-30030iLS130,YS132199110-199512

52513FILLER, FRONT BUMPER, LH

main52513-30030iLS130,YS132199110-199512

52541PROTECTOR, FRONT BUMPER

main52541-30030iLS130,YS132199110-199512

9011910532

main90119-10532

9015960417

main90159-60417

9017908043

main90179-08043

9026903007

main90269-03007

9163140610

main91631-40610

15 parts on this diagram · 3 diagrams in section
