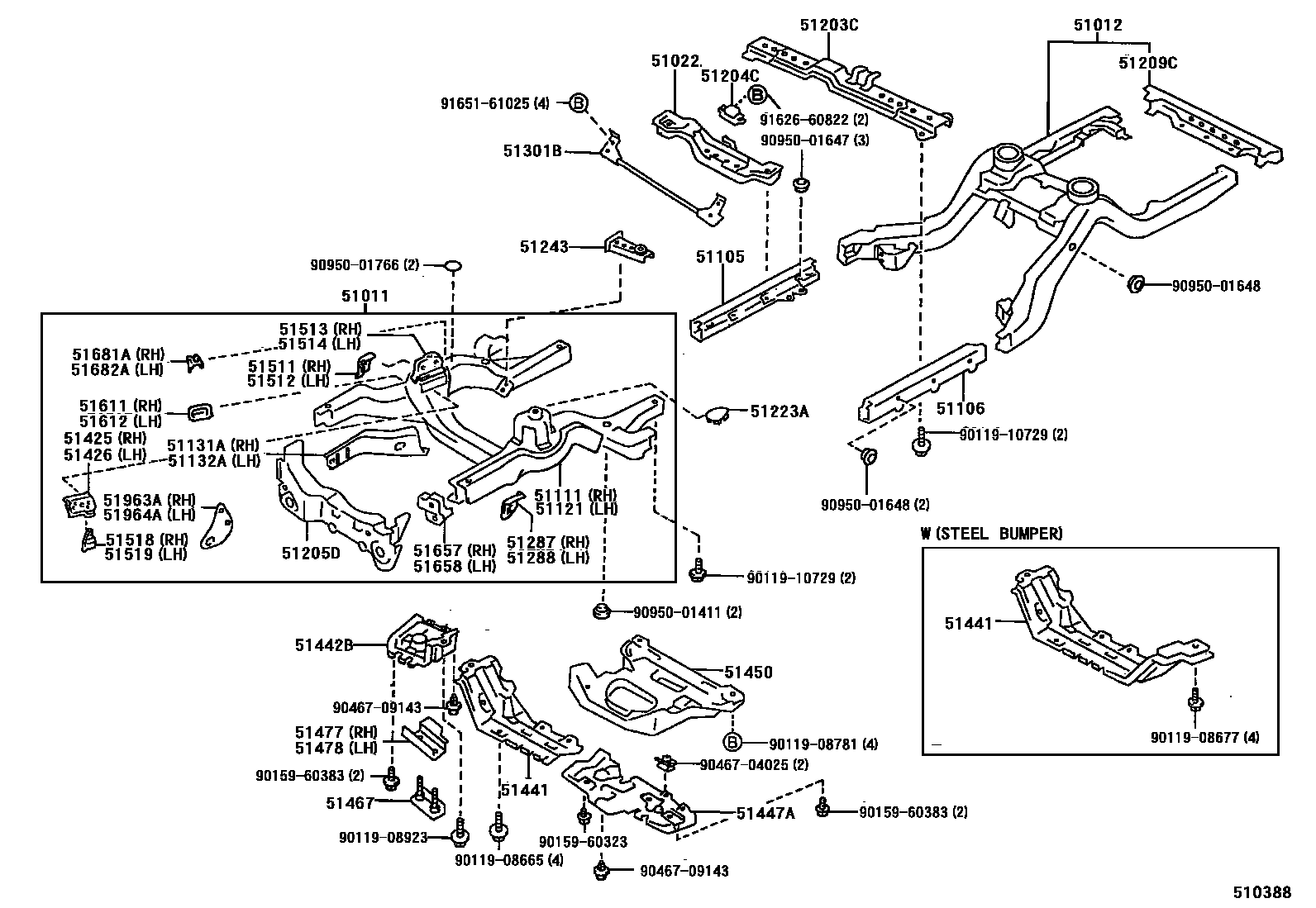

FRAME

0001 1 0002 1

51011RAIL SUB-ASSY, FRONT FRAME

main51011-30440iGS131,JZS133¥127,000199110-200104

main51011-30450iLS130¥127,000199110-199512

main51011-30460iYS132¥127,000199110-199512

51012RAIL SUB-ASSY, REAR FRAME

main51012-30330iLS130,YS132¥119,000199110-199512

main51012-30370iGS131;JZS133..LHD..5F;JZS133..4FC..(GCC,GEN)¥119,000199110-199308

sub51012-30410¥119,000

sub90170-06013¥60

main51012-30380iJZS133..EECC;JZS133..5F..Q¥111,000199110-199308

sub51012-30420¥111,000

sub90170-06013¥60

main51012-30380iJZS133..RHD..4FC..GEN..Q¥111,000199210-199310

SINGAPORE SPEC OR HONG KONG SPEC OR THAILAND SPEC

sub51012-30420¥111,000

sub90170-06013¥60

main51012-30410iGS131,JZS133¥119,000199308-200104

main51012-30420iJZS133..RHD..Q¥111,000199310-199509

SINGAPORE SPEC OR HONG KONG SPEC OR THAILAND SPEC

51022MEMBER SUB-ASSY, ENGINE REAR SUPPORT

main51022-30060iGS131,JZS133..5F¥8,100199110-200104

main51022-30070iGS131,JZS133..4FC¥9,200199110-200104

main51022-30080iLS130..4H¥9,100199110-199512

main51022-30090iLS130,YS132..4F¥8,900199110-199512

51105RAIL SUB-ASSY, CENTER FRAME, RH

main51105-30060iGS131,JZS133,LS130,YS132¥18,100199110-200104

51106RAIL SUB-ASSY, CENTER FRAME, LH

main51106-30060iGS131,JZS133,LS130,YS132¥14,800199110-200104

51111RAIL, FRONT FRAME, NO.1 RH

main51111-30101iGS131,JZS133,LS130,YS132¥9,100199110-200104

51121RAIL, FRONT FRAME, NO.1 LH

main51121-30101iGS131,JZS133,LS130,YS132¥9,200199110-200104

51131ARAIL, FRONT FRAME, NO.5 RH

main51131-30041iGS131,JZS133,LS130,YS132¥7,600199110-200104

51132ARAIL, FRONT FRAME, NO.5 LH

main51132-30041iGS131,JZS133,LS130,YS132¥7,600199110-200104

51203CCROSSMEMBER SUB-ASSY, CENTER BEARING SUPPORT

main51203-30090iLS130,YS132¥11,900199110-199512

main51240-30011iGS131,JZS133¥12,200199110-200104

51204CDAMPER SUB-ASSY, ENGINE REAR SUPPORT MEMBER

main51204-30070iLS130;JZS133..EECC¥7,000199110-199512

51205DSUPPORT SUB-ASSY, STRUT BAR

main51205-30080iGS131,JZS133,LS130,YS132¥14,600199110-200012

sub51205-30900¥14,600

main51205-30900iJZS133¥14,600200012-200104

51209CCROSSMEMBER SUB-ASSY, FRAME, REAR

main51207-30071iJZS133..EECC¥6,100199110-199308

main51207-30071iJZS133..RHD..4FC..GEN..Q¥6,100199210-199509

SINGAPORE OR HONG KONG OR THAILAND SPEC

main51291-30101iGS131,JZS133,LS130,YS132..GCC,GEN¥6,100199110-200104

51223ACOVER, ENGINE MOUNTING HOLE

main51223-30010iLS130,YS132¥300199110-199512

51243MEMBER, ANTI SHAKE

main51243-30030iGS131,JZS133,LS130,YS132¥4,630199110-200104

51287GUSSET, STRUT BAR BRACKET, LOWER RH

main51287-30060iGS131,JZS133,LS130,YS132¥1,870199110-200104

51288GUSSET, STRUT BAR BRACKET, LOWER LH

main51288-30040iGS131,JZS133,LS130,YS132¥1,870199110-200104

51301BROD SUB-ASSY, FRONT FRAME

main51301-30010iGS131,JZS133,LS130¥6,100199110-200104

51425BRACKET SUB-ASSY, ENGINE SUPPORT, FRONT RH

main51401-30100iYS132¥2,960199110-199512

main51425-30140iGS131,JZS133¥2,660199110-200104

main51425-30180iLS130¥2,500199110-199512

51426BRACKET SUB-ASSY, ENGINE SUPPORT, FRONT LH

main51402-30100iYS132¥2,960199110-199512

main51426-30140iGS131,JZS133¥2,660199110-200104

main51426-30180iLS130¥2,500199110-199512

51441COVER, ENGINE UNDER, NO.1

main51441-30090iLS130,YS132¥9,300199110-199512

main51441-30100iLS130,YS132¥7,700199110-199512

W(SMALL URETHAN BUMPER W/LICENCE BRACKET)

main51441-30120iGS131,JZS133¥10,100199110-200104

51442BCOVER, AIR TANK, RH

main51442-30030iLS130,YS132¥2,270199110-199512

main51442-30070iGS131,JZS133¥4,210199110-200104

51447ACOVER, AIR TANK, LH

main51447-30010iLS130,YS132¥6,300199110-199512

main51447-30050iGS131,JZS133¥4,580199110-200104

51450COVER ASSY, ENGINE UNDER, REAR

main51450-30010iLS130¥16,600199110-199512

51467RETAINER, ENGINE UNDER COVER

main51467-30010iLS130,YS132¥720199110-199512

51477PLATE, ENGINE SIDE UNDER COVER, UPPER RH

main51477-30020iLS130,YS132¥930199110-199512

51478PLATE, ENGINE SIDE UNDER COVER, UPPER LH

main51478-30030iLS130,YS132¥930199110-199512

51511GUSSET, UPPER CONTROL ARM SUPPORT, RH

main51511-30030iGS131,JZS133,LS130,YS132¥930199110-200104

51512GUSSET, UPPER CONTROL ARM SUPPORT, LH

main51512-30030iGS131,JZS133,LS130,YS132¥930199110-200104

51513SUPPORT, UPPER CONTROL ARM, RH

main51513-30070iGS131,JZS133,LS130,YS132¥4,300199110-200104

51514SUPPORT, UPPER CONTROL ARM, LH

main51514-30060iGS131,JZS133,LS130,YS132¥4,300199110-200104

51518BRACKET, LOWER ARM, RH

main51518-30040iGS131,JZS133,LS130,YS132¥2,300199110-200104

51519BRACKET, LOWER ARM, LH

main51519-30040iGS131,JZS133,LS130,YS132¥2,300199110-200104

51611STOPPER, FRONT SUSPENSION BOUND, RH

main51611-30050iGS131,JZS133,LS130,YS132¥1,030199110-200104

51612STOPPER, FRONT SUSPENSION BOUND, LH

main51612-30030iGS131,JZS133,LS130,YS132¥1,470199112-200104

51657BRACKET, FRONT BUMPER ARM, RH

main51657-30011iGS131,JZS133,LS130,YS132¥1,820199110-200104

51658BRACKET, FRONT BUMPER ARM, LH

main51658-30011iGS131,JZS133,LS130,YS132¥1,820199110-200104

51681ABRACKET, FLEXIBLE HOSE

main51681-30060iGS131,JZS133,LS130,YS132¥620199110-200104

51682APLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH

main51682-30040iGS131,JZS133,LS130,YS132¥750199110-200104

51963AHOOK, TRANSPORT, FRONT RH

main51963-30040iGS131,JZS133,LS130,YS132¥940199110-200104

51964AHOOK, TRANSPORT, FRONT LH

main51964-30040iGS131,JZS133,LS130,YS132¥940199110-200104

9011908665

main90119-08665¥90

9011908677

main90119-08677¥120

9011908781

main90119-08781¥200

9011908923

main90119-08923¥120

9011910729

main90119-10729¥200

9015960323

main90159-60323¥100

9015960383

main90159-60383¥70

9046704025

main90467-04025¥240

9046709143

main90467-09143¥260

9095001411

main90950-01411¥240

9095001647

main90950-01647¥200

9095001648

main90950-01648¥200

9095001766

main90950-01766¥110

9162660822

main91626-60822¥130

9165161025

main91651-61025¥100

56 parts on this diagram · 2 diagrams in section
