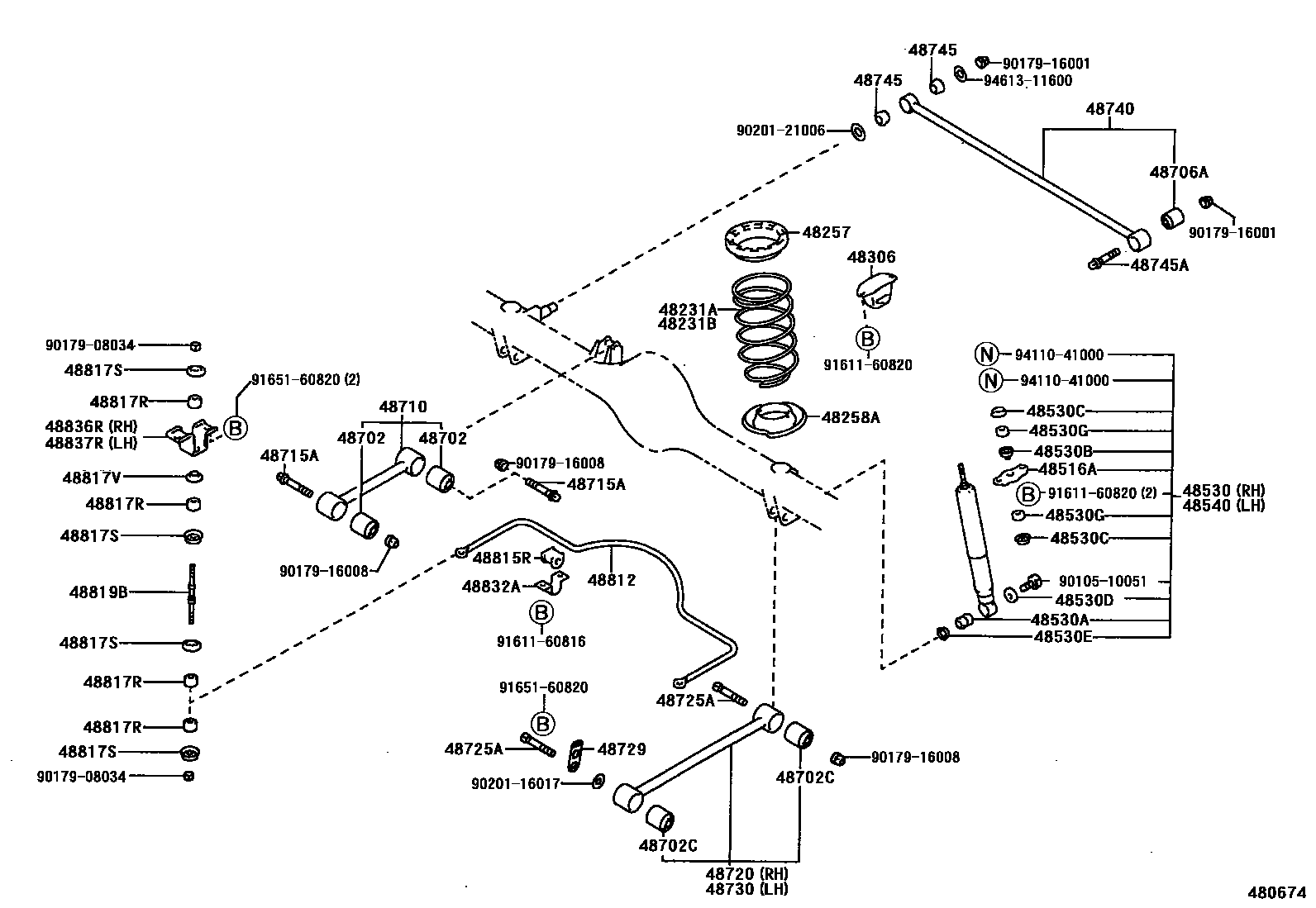

REAR SPRING & SHOCK ABSORBER
48231ASPRING, COIL, REAR RH
CHINA SPEC
HONG KONG SPEC
48231BSPRING, COIL, REAR LH
CHINA SPEC
HONG KONG SPEC
48257INSULATOR, REAR COIL SPRING
48258AINSULATOR, REAR COIL SPRING, LOWER
48306BUMPER SUB-ASSY, REAR SPRING
48516ABRACKET, REAR SHOCK ABSORBER, UPPER
48530ABUSH(FOR REAR SHOCK ABSORBER)
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2
48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3
48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4
48530GCUSHION, REAR SHOCK ABSORBER, NO.1
LWR
UPR
48702BUSH SUB-ASSY, UPPER CONTROL ARM
48702CBUSH SUB-ASSY, LOWER CONTROL ARM
48706ABUSH SUB-ASSY, REAR LATERAL CONTROL ROD
48710ARM ASSY, UPPER CONTROL
48715ABOLT, HEXAGON(FOR UPPER CONTROL ARM)
48720ARM ASSY, LOWER CONTROL, RH
sub48730-30010
48725BUSH, LOWER CONTROL ARM
OUTER
INNER
48725ABOLT(FOR LOWER CONTROL ARM)
FRAME SIDE
HOUSING SIDE
48729PLATE, LOWER CONTROL ARM BOLT LOCK
48730ARM ASSY, LOWER CONTROL, LH
48740ROD ASSY, REAR LATERAL CONTROL
48745BUSH, LATERAL CONTROL ROD
48745ABOLT, HEXAGON(FOR LATERAL CONTROL ROD)
48812BAR, STABILIZER, REAR
HONG KONG SPEC
48815RBUSH, STABILIZER(FOR REAR)
HONG KONG SPEC
48817RCUSHION, STABILIZER(FOR REAR)
48817SRETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)
48817VRETAINER, CUSHION, NO.2(FOR STABILIZER REAR BAR)
48819BBOLT, REAR STABILIZER
48832ABRACKET, REAR STABILIZER BAR, NO.1
48836RBRACKET, REAR STABILIZER END, RH
48837RBRACKET, REAR STABILIZER END, LH
9010510051
main90105-10051
9017908034
main90179-08034
9017916001
main90179-16001
9017916008
main90179-16008
9020116017
main90201-16017
9020121006
main90201-21006
9161160816
main91611-60816
9161160820
main91611-60820
9165160820
main91651-60820
9411041000
main94110-41000
9461311600
main94613-11600
47 parts on this diagram · 3 diagrams in section
