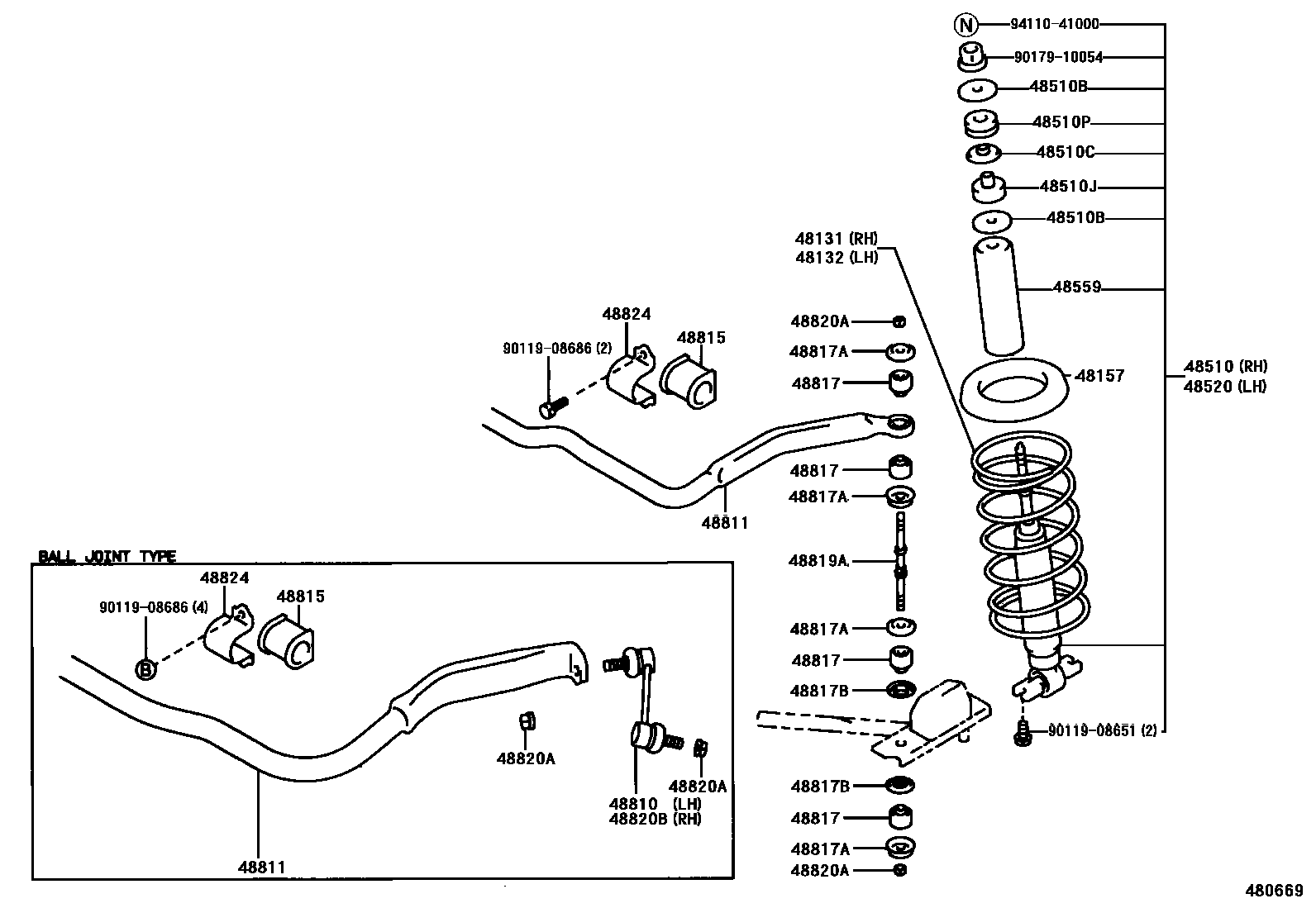

FRONT SPRING & SHOCK ABSORBER
48131SPRING, FRONT COIL, RH
HONG KONG SPEC
L=410
48132SPRING, FRONT COIL, LH
HONG KONG SPEC
L=410
48157INSULATOR, FRONT COIL SPRING, UPPER
48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
LWR
UPR
48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
48510JCUSHION, FRONT SHOCK ABSORBER, NO.1
48510PCUSHION, FRONT SHOCK ABSORBER, NO.2
48559COVER, SHOCK ABSORBER, DUST
48810LINK ASSY, FRONT STABILIZER, LH
sub48820-30020
48811BAR, STABILIZER, FRONT
TAXI FOR SAUDIARABIA SPEC
48815BUSH, FRONT STABILIZER BAR, NO.1
TAXI FOR SAUDIARABIA SPEC
48817CUSHION, FRONT STABILIZER
48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
48819ABOLT, FRONT STABILIZER
48820ANUT(FOR FRONT STABILIZER LINK)
TAXI FOR SAUDIARABIA SPEC
48820BLINK ASSY, FRONT STABILIZER, RH
sub48820-30010
48824BRACKET, STABILIZER, FRONT
9011908651
main90119-08651
9011908686
main90119-08686
9017910054
main90179-10054
9411041000
main94110-41000
24 parts on this diagram · 2 diagrams in section
