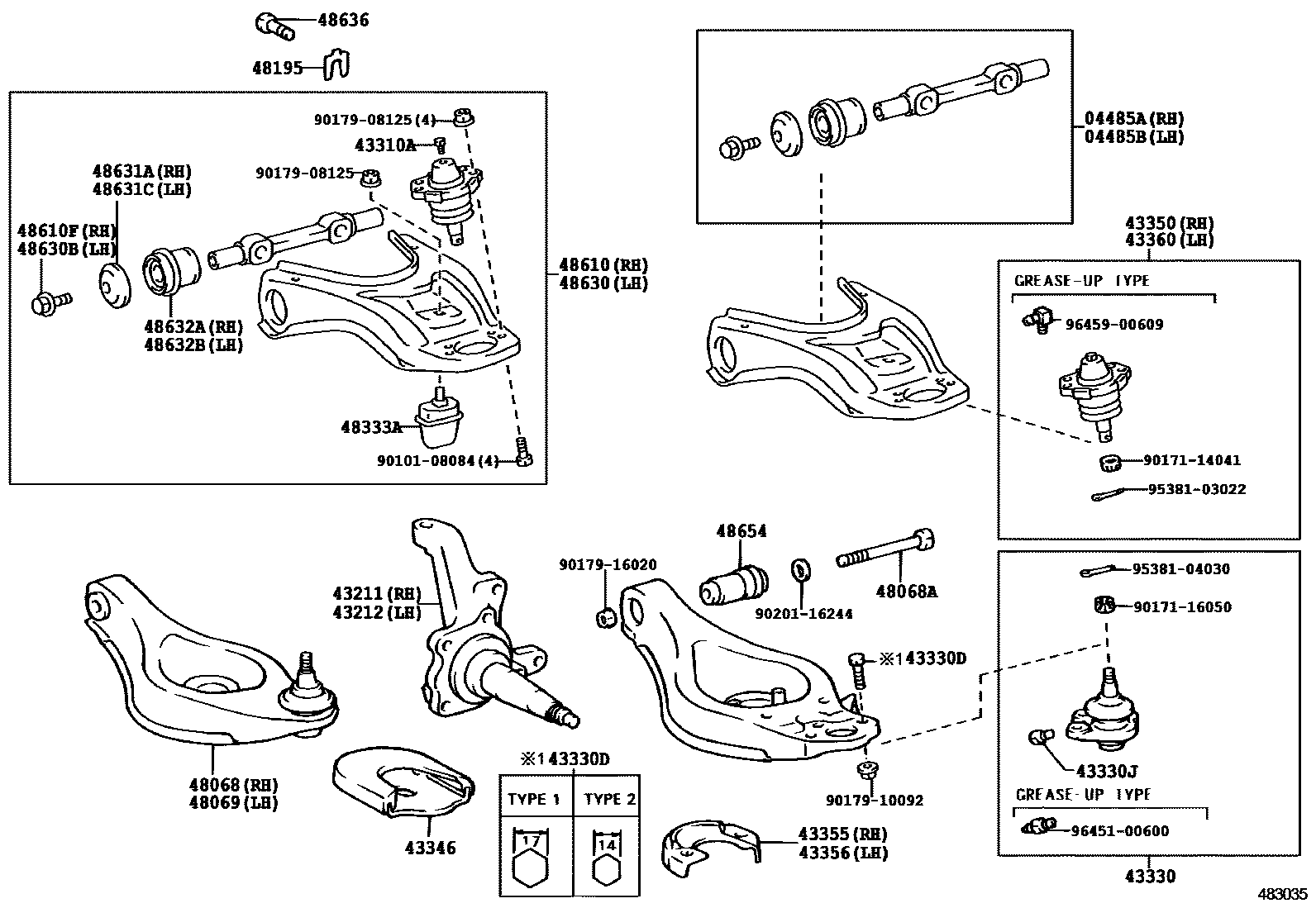

FRONT AXLE ARM & STEERING KNUCKLE

04485ASHAFT KIT, FRONT SUSPENSION UPPER ARM, RH

main04485-30050iLS130,YS132..LHD199110-199308

main04485-30060iGS131,JZS133,LS130,YS132199308-200104

main04485-30060iLS130,YS132..LHD199110-199308

W(POWER STEERING)

04485BSHAFT KIT, FRONT SUSPENSION UPPER ARM, LH

main04485-30050iLS130,YS132..LHD199110-199308

main04485-30060iLS130..RHD;GS131,JZS133199110-199308

W(POWER STEERING)

main04485-30060iGS131,JZS133,LS130,YS132199308-200104

43211KNUCKLE, STEERING, RH

main43211-30120iLS130,YS132..LHD199110-199308

main43211-30140iLS130..RHD;GS131,JZS133199110-199308

W(POWER STEERING)

main43211-30140iJZS133..EECC199110-199308

COLD SPEC

main43211-30140iGS131,JZS133,LS130,YS132199308-200104

main43211-30150iJZS133..RHD..4FC..Q199110-199512

W(*66)

43212KNUCKLE, STEERING, LH

main43212-30060iLS130,YS132..LHD199110-199308

main43212-30090iJZS133..EECC199110-199308

COLD SPEC

main43212-30090iLS130..RHD;GS131,JZS133199110-199308

W(POWER STEERING)

main43212-30090iGS131,JZS133,LS130,YS132199308-200104

main43212-30100iJZS133..RHD..4FC..Q199110-199512

W(*66)

43310APLUG (FOR BALL JOINT)

main90345-06014iJZS133199110-200104

43330JOINT ASSY, LOWER BALL, FRONT

main43330-39225iGS131,JZS133199110-200104

RH

main43330-39225iJZS133..EECC199110-199308

COLD AREA SPEC,RH

main43330-39235iLS130,YS132199110-199512

TAXI SPEC F0R SAUDI ARABIA,RH

main43330-39235iJZS133..D199110-199512

RH

main43340-39205iGS131,JZS133199110-200104

LH

main43340-39205iJZS133..EECC199110-199308

COLD AREA SPEC,LH

main43340-39215iLS130,YS132199110-199512

LH

main43340-39215iLS130,YS132199110-199512

TAXI SPEC F0R SAUDI ARABIA,LH

43330DBOLT (FOR FRONT LOWER BALL JOINT)

main90101-10188iJZS133..EECC199110-199308

W(LWR ARM ICE DEFLECTOR),TYPE 1

main90105-10360iJZS133..EECC199110-199308

W(LWR ARM ICE DEFLECTOR),TYPE 2

main90105-10360iGS131,JZS133,LS130,YS132199110-200104

43330JPLUG (FOR LOWER BALL JOINT)

main90345-06014iJZS133199110-200104

43346PROTECTOR, LOWER BALL JOINT DUST COVER

main43346-30010iJZS133..EECC199110-199308

43350JOINT ASSY, FRONT UPPER BALL, RH

main43350-39055iLS130,YS132199110-199512

TAXI SPEC F0R SAUDI ARABIA

main43350-39065iGS131,JZS133199110-200104

43355DEFLECTOR, LOWER ARM ICE, RH

main43355-30040iJZS133..EECC199110-199308

43356DEFLECTOR, LOWER ARM ICE, LH

main43356-30040iJZS133..EECC199110-199308

43360JOINT ASSY, FRONT UPPER BALL, LH

main43350-39055iJZS133..D199110-199512

TAXI SPEC F0R SAUDI ARABIA

main43350-39065iGS131,JZS133199110-200104

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-30150iGS131,JZS133199110-200104

main48068-30170iLS130..RHD199110-199308

W(POWER STEERING)

main48068-30170iLS130,YS132199308-199512

main48068-30170iJZS133..D199110-199512

TAXI SPEC F0R SAUDI ARABIA

main48068-30180iLS130,YS132..LHD199110-199308

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

main90101-16024iGS131,JZS133,LS130,YS132199110-200104

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-30150iGS131,JZS133199110-200104

main48069-30170iLS130,YS132..LHD199110-199308

W(POWER STEERING)

main48069-30170iJZS133..D199110-199512

TAXI SPEC F0R SAUDI ARABIA

main48069-30170iLS130,YS132199308-199512

main48069-30180iLS130,YS132..LHD199110-199308

48195SHIM, CAMBER ADJUST

main90565-15016iGS131,JZS133,LS130,YS132199110-200104

T=1.6

main90565-15017iGS131,JZS133,LS130,YS132199110-200104

T=1.0

main90565-15018iGS131,JZS133,LS130,YS132199110-200104

T=2.0

48333ASUPPORT, BUMPER, FRONT UPPER SUSPENSION ARM

main48333-30021iLS130,YS132..LHD199110-199308

main48333-30040iJZS133..D199110-199308

W(POWER STEERING)

main48333-30040iJZS133..D199110-199308

TAXI SPEC F0R SAUDI ARABIA

main48333-30040iGS131,JZS133,LS130,YS132199308-200104

48610ARM ASSY, FRONT SUSPENSION UPPER, RH

main48610-30110iGS131,JZS133199110-200104

main48610-30120iLS130..RHD199110-199308

W(POWER STEERING)

main48610-30120iJZS133..D199110-199512

TAXI SPEC F0R SAUDI ARABIA

main48610-30120iLS130,YS132199308-199512

main48610-30140iLS130,YS132..LHD199110-199308

48610FBOLT(FOR FRONT SUSPENSION UPPER ARM RH)

main90105-12017iGS131,JZS133,LS130,YS132199110-200104

48630ARM ASSY, FRONT SUSPENSION, UPPER LH

main48630-30110iGS131,JZS133199110-200104

main48630-30120iLS130..RHD199110-199308

W(POWER STEERING)

main48630-30120iJZS133..D199110-199512

TAXI SPEC F0R SAUDI ARABIA

main48630-30120iLS130,YS132199308-199512

main48630-30140iLS130,YS132..LHD199110-199308

48630BBOLT(FOR FRONT SUSPENSION UPPER ARM LH)

main90105-12017iGS131,JZS133,LS130,YS132199110-200104

48631ARETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM RH)

main90948-02020iGS131,JZS133,LS130,YS132199110-200104

48631CRETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM LH)

main90948-02020iGS131,JZS133,LS130,YS132199110-200104

48632ABUSH, FRONT SUSPENSION UPPER ARM, RH

main48632-30040iLS130,YS132..LHD199110-199308

main48632-30070iLS130,YS132..LHD199110-199308

W(POWER STEERING)

main48632-30070iGS131,JZS133,LS130,YS132199308-200104

48632BBUSH, FRONT SUSPENSION UPPER ARM, LH

main48632-30040iLS130,YS132..LHD199110-199308

main48632-30070iLS130..RHD;GS131,JZS133199110-199308

W(POWER STEERING)

main48632-30070iGS131,JZS133,LS130,YS132199308-200104

48636BOLT, UPPER ARM SET

main90105-14062iGS131,JZS133,LS130,YS132199110-200104

48654BUSH, LOWER ARM

main48654-30030iLS130..RHD;GS131,JZS133199110-199308

W(POWER STEERING)

main48654-30030iGS131,JZS133,LS130,YS132199308-200104

main48654-30040iLS130,YS132..LHD199110-199308

9010108084

main90101-08084

9017114041

main90171-14041

9017116050

main90171-16050

9017908125

main90179-08125

9017910092

main90179-10092

9017916020

main90179-16020

9020116244

main90201-16244

9538103022

main95381-03022

9538104030

main95381-04030

9645100600

main96451-00600

9645900609

main96459-00609

39 parts on this diagram · 1 diagram in section
