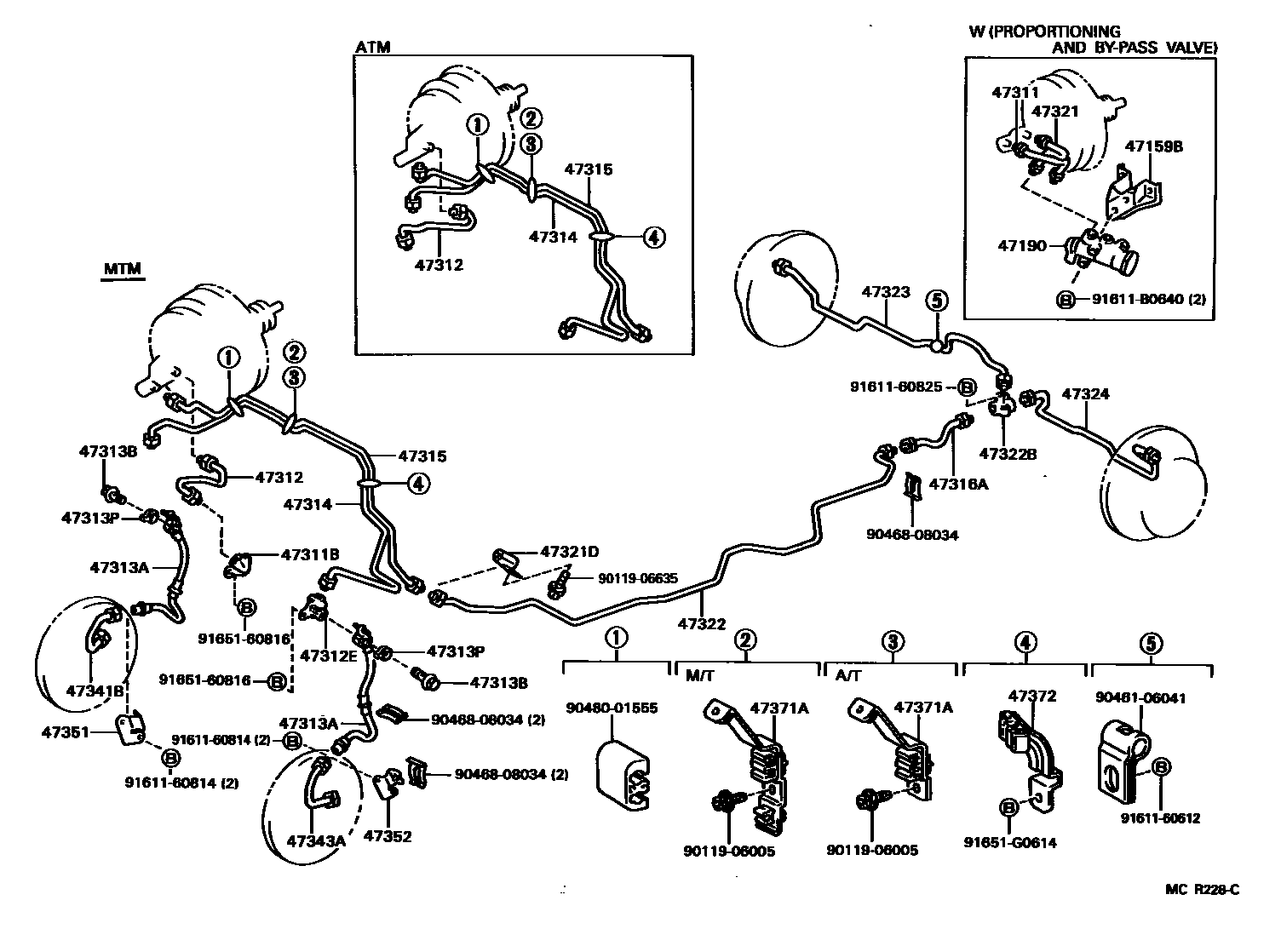

BRAKE TUBE & CLAMP
47159BBRACKET, PROPORTIONING & BY-PASS VALVE
47190VALVE ASSY, PROPORTIONING & BY-PASS
47311TUBE, FRONT BRAKE, NO.1
47311BWAY, NO.1(FOR FRONT BRAKE TUBE)
W(ABS)
W/O(ABS)
47312TUBE, FRONT BRAKE, NO.2
W/O(ABS)
W(ABS)
W(ABS)
W(ABS)
47312EWAY, NO.2(FOR FRONT BRAKE TUBE)
47313TUBE, FRONT BRAKE, NO.3
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
47314TUBE, FRONT BRAKE, NO.4
W/O(ABS)
W(ABS)
W(ABS)
47315TUBE, FRONT BRAKE, NO.5
W(ABS)
W(ABS)
W/O(ABS)
W(ABS)
47316TUBE, FRONT BRAKE, NO.6
W(ABS)
W(ABS & TRACTION CONTROL)
47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
47321TUBE, REAR BRAKE, NO.1
47321DWAY, NO.1(FOR REAR BRAKE TUBE)
47322TUBE, REAR BRAKE, NO.2
47323TUBE, REAR BRAKE, NO.3
47324TUBE, REAR BRAKE, NO.4
47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1
47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1
47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47371ACLAMP, BRAKE TUBE, NO.1
47372CLAMP, BRAKE TUBE, NO.2
9011906005
main90119-06005
9011906635
main90119-06635
9046106041
main90461-06041
9046808034
main90468-08034
9048001555
main90480-01555
9161160612
main91611-60612
9161160814
main91611-60814
9161160825
main91611-60825
91611B0640
main91611-B0640
9165160816
main91651-60816
91651G0614
main91651-G0614
37 parts on this diagram · 7 diagrams in section
