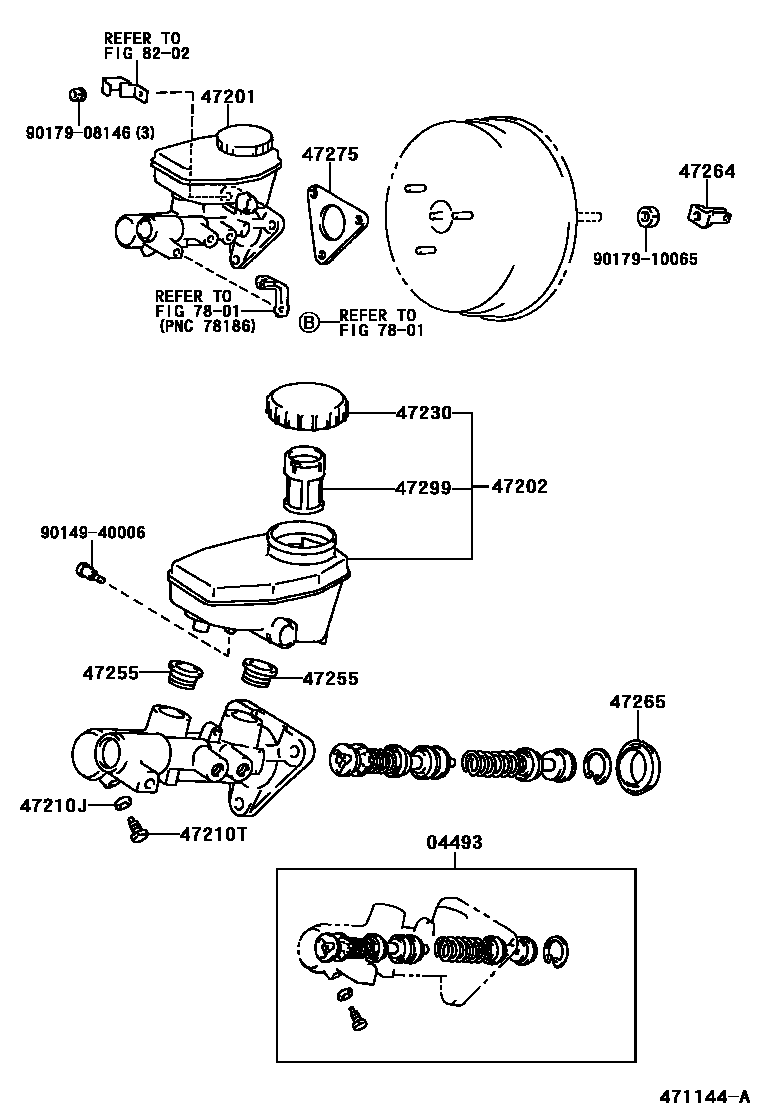

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-24050iJZS133..4FC;JZS133..5F..(D,G);JZS133..5F..GCC..Q199110-199601

sub04493-30240

main04493-30180iLS130..RHD199110-199512

sub04493-22210

main04493-30210iJZS133..5F..GEN..G;JZS133..LHD..4FC..GEN199401-199407

CHINA SPEC

sub04493-30211

main04493-30210iGS131199110-199401

sub04493-30211

main04493-30211iGS131;JZS133..5F..GEN..Q199407-199803

sub04493-30231

main04493-30211iJZS133..5F..GEN..G;JZS133..LHD..4FC..GEN199407-199512

CHINA SPEC

sub04493-30231

main04493-30220iLS130,YS132..LHD199110-199512

main04493-30231iGS131199803-199904

sub04493-30233

main04493-30240iJZS133199601-199803

sub04493-30241

main04493-30241iJZS133199803-200104

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-30390iJZS133..RHD199110-200104

main47201-30410iGS131..RHD199110-199508

main47201-30430iLS130..RHD199110-199512

main47201-30440iJZS133..LHD199110-199512

main47201-30450iGS131..LHD199110-199904

main47201-30450iJZS133..5F..GEN..G;JZS133..LHD..4FC..GEN199401-199512

CHINA SPEC

main47201-30460iLS130,YS132..LHD199110-199512

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47202-30130iJZS133,LS130..RHD199110-200104

main47202-30140iGS131,JZS133,LS130,YS132..LHD199110-199904

47210JGASKET(FOR MASTER CYLINDER)

main90029-43001iGS131199708-200104

main90430-06104iJZS133..RHD199110-199708

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iJZS133..LHD;GS131,LS130,YS132199110-200104

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-24010iGS131,JZS133,LS130,YS132199110-200104

sub47230-47090

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iGS131,JZS133,LS130,YS132199110-200104

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-22010iLS130,YS132199110-199410

main47264-28010iLS130,YS132199410-199512

main47264-50010iGS131,JZS133199110-200104

47265BOOT, MASTER CYLINDER

main47265-20050iJZS133..5F..GEN..G;JZS133..LHD..4FC..GEN199401-199512

CHINA SPEC

main47265-20050iGS131..LHD..Q;JZS133,LS130,YS132..MTM..GEN..(B,Q)199110-199904

main47265-22030iJZS133199110-200104

47275GASKET, BRAKE MASTER CYLINDER

main47275-24010iLS130,YS132199110-199512

main47275-32010iGS131,JZS133199110-200104

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-24010iGS131,JZS133,LS130,YS132199110-200104

7801

8202

9014940006

main90149-40006

9017908146

main90179-08146

9017910065

main90179-10065

16 parts on this diagram · 1 diagram in section
