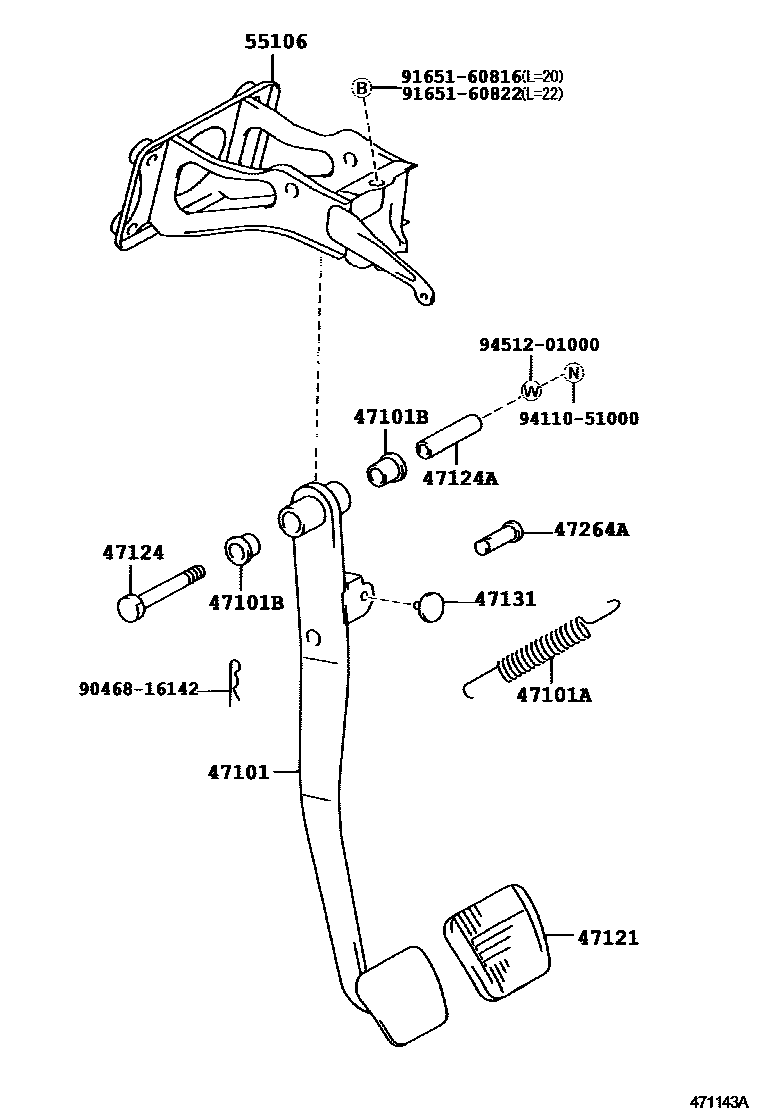

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-30290iGS131,JZS133,YS132..LHD..MTM199312-199512

main47101-30300iGS131,JZS133..LHD..4FC199312-199904

main47101-30320iGS131,JZS133,LS130..RHD..MTM199110-199512

main47101-30330iGS131,JZS133..RHD..4FC199110-199512

main47101-30340iGS131,JZS133,LS130,YS132..LHD..MTM199110-199312

main47101-30350iJZS133..LHD..4FC199110-199312

main47101-30420iJZS133..G199512-200104

main47101-30430iJZS133..Q199512-200104

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-12055iGS131,JZS133,LS130,YS132..LHD199110-199904

main90507-12039iGS131,JZS133,LS130..RHD199110-200104

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iGS131,JZS133,LS130,YS132199110-200104

47121PAD, BRAKE PEDAL

main31321-14020iGS131,JZS133,LS130,YS132..MTM199110-200104

main47121-14010iGS131,JZS133..4FC199110-200104

47124SHAFT, BRAKE PEDAL

main90101-10164iGS131,JZS133,LS130..RHD199110-200104

main90101-10480iGS131,JZS133,LS130,YS132..LHD199110-199904

sub91552-81090

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10105iGS131,JZS133,LS130..RHD199110-200104

main90387-10128iGS131,JZS133,LS130,YS132..LHD199110-199904

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iGS131,JZS133,LS130,YS132199110-200104

47264APIN(FOR PUSH ROD)

main90249-10064iGS131,JZS133,LS130,YS132199110-200104

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-30230iGS131,JZS133,LS130..RHD199110-200104

main55106-30240iGS131,JZS133..LHD..(ROY,SAL)199110-199312

main55106-30250iJZS133,LS130,YS132..LHD..(B,D)199110-199312

sub55106-30240

main55106-30270iGS131,JZS133..LHD..(G,Q)199312-199904

main55106-30280iJZS133,YS132..B,D199312-199512

9046816142

main90468-16142

9165160816

main91651-60816

9165160822

main91651-60822

9411051000

main94110-51000

9451201000

main94512-01000

14 parts on this diagram · 1 diagram in section
