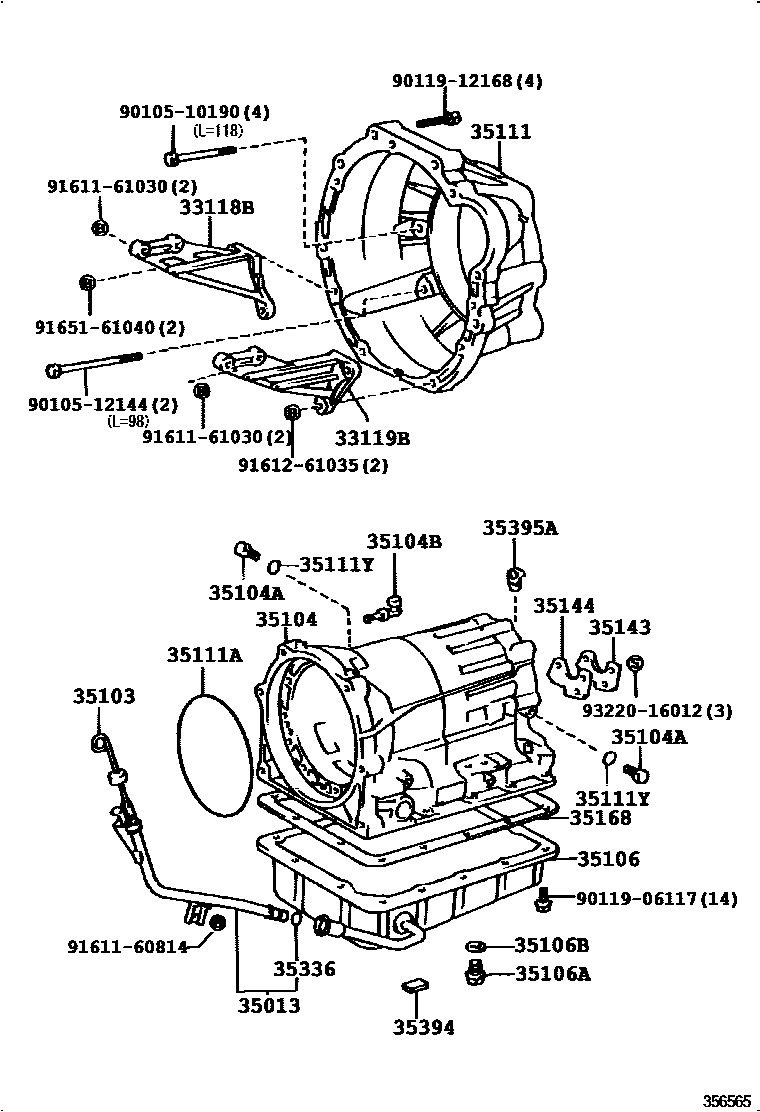

TRANSMISSION CASE & OIL PAN (ATM)

0001 1 0002 1

33118BPLATE, STIFFENER, RH(ATM)

main33118-22051iGS131..Q199110

33119BPLATE, STIFFENER, LH(ATM)

main33119-22042iGS131..Q199110

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-30220iGS131..Q199201-199512

main35013-30310iJZS133..RHD..4FC199110-199602

main35013-30320iJZS133..LHD..4FC199110-199512

main35013-30350iGS131..Q199110-199201

main35013-30360iGS131199512-199904

main35013-30410iJZS133..Q199602-200104

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-30250iGS131..Q199201-199512

main35103-30310iJZS133..RHD..Q199308-199512

HONG KONG OR SINGAPORE OR THAILAND SPEC

main35103-30320iJZS133..LHD..4FC199110-199512

main35103-30340iJZS133..RHD..4FC..GEN199110-199602

main35103-30350iGS131..Q199110-199201

main35103-30460iGS131199512-199904

main35103-30490iJZS133..Q199602-200104

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-26021iGS131..Q199110-199904

main35104-30133iJZS133..4FC..(GCC,GEN)199110-200104

main35104-30170iJZS133..RHD..4FC..GEN..Q199210-199512

HONG KONG SPEC

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001×2iGS131,JZS133..4FC199110-200104

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03098iJZS133..4FC199110-200104

NO.1

main90930-03099iJZS133..4FC199110-200104

NO.2

main90930-03108iGS131..Q199110-199904

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-22060iJZS133..4FC199110-199203

main35106-24020iJZS133..4FC199203-200104

main35106-28030iGS131..Q199411-199904

main35106-30051iGS131..Q199110-199411

main35106-30180iJZS133..RHD..Q199411-199512

SINGAPORE OR HONG KONG OR THAILAND SPEC

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10006iGS131,JZS133..4FC199110-200104

sub90341-10011

main90341-10012iJZS133..RHD..Q199308-199512

SINGAPORE OR HONG KONG OR THAILAND SPEC

sub90341-10011

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iGS131,JZS133..4FC199110-200104

main35178-50010iJZS133..RHD..Q199308-199512

SINGAPORE OR HONG KONG OR THAILAND SPEC

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-22081iJZS133..4FC199110-200104

main35111-24010iGS131..Q199110-199904

35111ARING, O (FOR AUTOMATIC TRANSMISSION HOUSING)

main90301-99054iGS131..Q199110

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196×2iGS131,JZS133..4FC199110-200104

35143COVER, TRANSMISSION CASE, REAR

main35143-22010iGS131..Q199110

35144GASKET, TRANSMISSION CASE REAR COVER

main35144-28010iGS131..Q199110

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-22011iGS131..Q199110

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iGS131,JZS133..4FC199110-200104

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×4iJZS133..4FC199110-199305

35395ASTRAINER, GOVERNOR OIL

main35395-40010iGS131..Q199110

9010510190

main90105-10190

9010512144

main90105-12144

9011906117

main90119-06117

9011912168

main90119-12168

9161160814

main91611-60814

9161161030

main91611-61030

9161261035

main91612-61035

9165161040

main91651-61040

9322016012

main93220-16012

28 parts on this diagram · 2 diagrams in section
