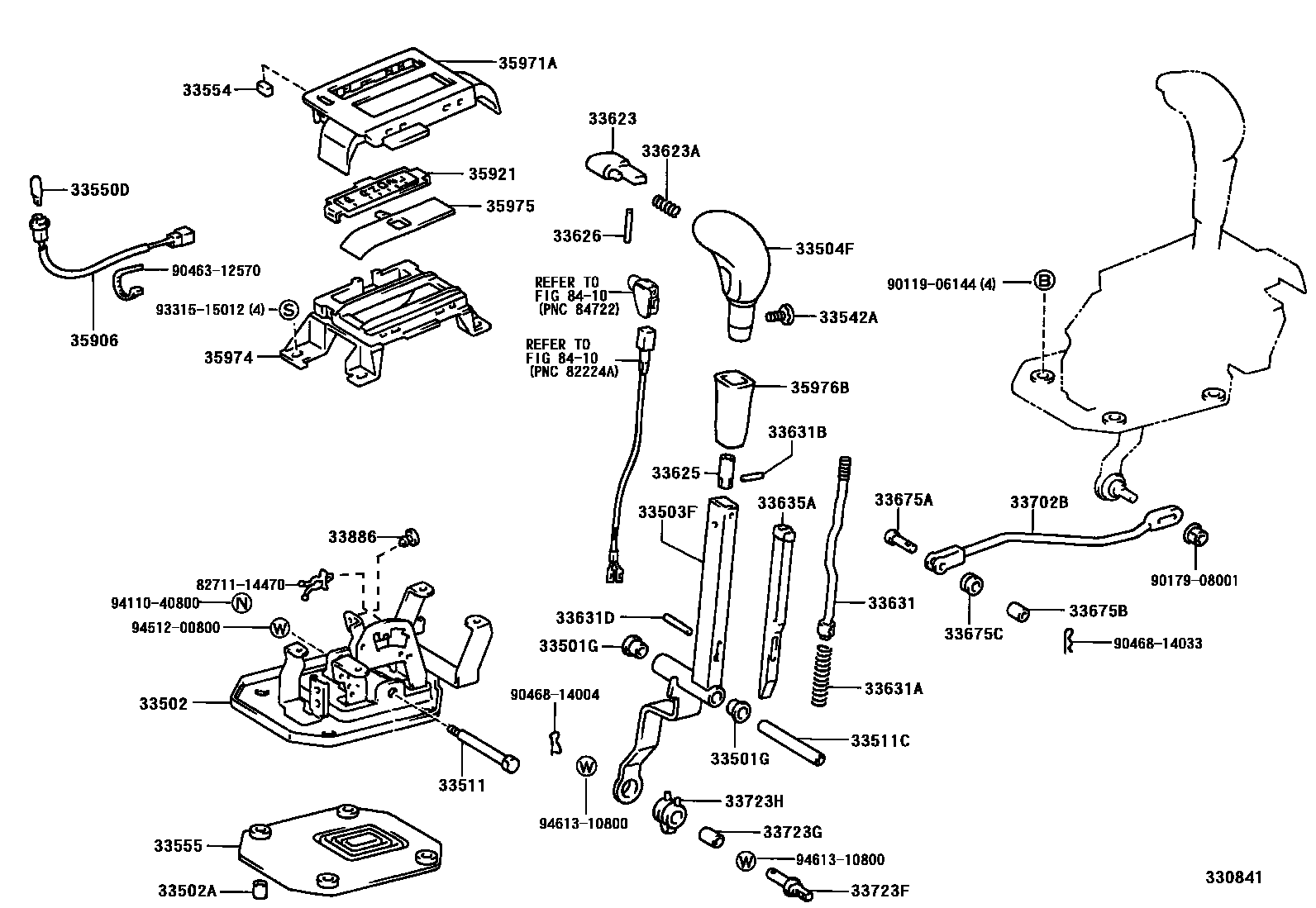

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1

33501GBUSH (FOR FLOOR SHIFT CONTROL SHAFT)

main90385-11003iGS131,JZS133..4FC199110-200104

33502PLATE SUB-ASSY, SHIFT LEVER

main33502-30350iJZS133..EECC199110-199308

main33502-30360iGS131,JZS133..RHD..4FC..GEN199110-200104

sub33502-30350

main33502-30360iJZS133..EECC199110-199205

HONG KONG SPEC

sub33502-30350

main33502-30360iJZS133..EECC199205-199210

HONG KONG SPEC OR SINGAPORE SPEC

sub33502-30350

main33502-30370iGS131,JZS133..LHD..4FC199110-199904

33502ACOLLAR (FOR FLOOR SHIFT SETTING)

main90387-06065iGS131,JZS133..4FC199110-200104

OD=8.8

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33055-30070iGS131,JZS133..RHD..4FC199110-200104

main33055-30080iGS131,JZS133..LHD..4FC199110-199904

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-22101-J0iLS130,YS132..4F199110-199512

DARK BLUE,TRIM8#

sub33504-14040

sub33504-22101

main33504-24010-E2iGS131,JZS133..5F..G199110-200104

QUARTZ,TRIM4#

sub33504-24010

main33504-24010-W3iGS131,JZS133..5F..(D,G)199110-199512

DARK BLUE,TRIM8#

sub33504-24010

main33504-24020-E1iJZS133..5F..ROY199110-199512

QUARTZ,TRIM4#

sub33504-24020

sub33504-22140

main33504-24020-J0iJZS133..5F..ROY199110-199512

DARK BLUE,TRIM8#

sub33504-24020

sub33504-22140

main33542-30230-B0iJZS133..EECC199110-199308

W(TILT & TELESCO STEERING),SHADOW,TRIM1#

sub33542-30230

main33542-30230-E1iGS131,JZS133..RHD..4FC..GEN..Q199110-200104

QUARTZ,TRIM4#

sub33542-30230

main33542-30230-E1iJZS133..EECC199110-199308

W(TILT & TELESCO STEERING),QUARTZ,TRIM4#

sub33542-30230

main33542-30230-J1iGS131,JZS133..RHD..4FC..GEN..Q199110-199512

DK.BLUE,TRIM8#

sub33542-30230

main33542-30230-J1iJZS133..EECC199110-199308

W(TILT & TELESCO STEERING),DK.BLUE,TRIM8#

sub33542-30230

main33542-30240-B0iJZS133..EECC199110-199308

SHAD0W GRAY,TRIM1#

sub33542-30240

main33542-30240-E0iJZS133..EECC;JZS133..RHD..G199110-199308

QUARTZ,TRIM4#

sub33542-30240

main33542-30240-J0iJZS133..EECC;JZS133..RHD..G199110-199512

DARK BLUE,TRIM8#

sub33542-30240

main33542-30250-E0iJZS133..LHD..4FC..ROY199110-199904

QUARTZ,TRIM4#

sub33542-30250

main33542-30250-E2iGS131199512-199602

DK.ROSE,TRIM4#

sub33542-30250

main33542-30250-J0iJZS133..LHD..4FC..ROY199110-199512

DARK BLUE,TRIM8#

sub33542-30250

main33542-30260-E0iJZS133..LHD..4FC..G199110-199512

QUARTZ,TRIM4#

sub33542-30260

main33542-30260-J0iJZS133..LHD..4FC..G199110-199512

DARK BLUE,TRIM8#

sub33542-30260

33511SHAFT, CONTROL (FOR FLOOR SHIFT)

main33511-30390iGS131,JZS133..4FC199110-200104

33511CCOLLAR (FOR CONTROL SHAFT)

main90387-08142iGS131,JZS133..4FC199110-200104

33542ASCREW, W/WASHER(FOR SPRING BACK SHIFT LEVER KNOB)

main90159-50312iGS131,JZS133..4FC199110-200104

33550DBULB, POSITION INDICATOR LAMP

main99132-12034iGS131,JZS133..4FC199110-200104

12V 3.4W

33554CAP, SHIFT LEVER

main33554-30030iGS131,JZS133..RHD..4FC199110-200104

33555BOOT, SHIFT LEVER

main33555-30161iGS131,JZS133..4FC199110-200104

33623BUTTON, SHIFT LEVER KNOB

main33623-30110-B0iJZS133..EECC199110-199308

SHADOW GRAY,TRIM1#

sub33623-30110

main33623-30110-E1iGS131,JZS133..RHD..4FC199110-200104

DARK ROSE,TRIM4#

sub33623-30110

main33623-30110-J0iGS131,JZS133..RHD..4FC199110-199512

DARK BLUE,TRIM8#

sub33623-30110

main33623-30120-E0iGS131,JZS133..LHD..4FC199110-199904

QUARTZ,TRIM4#

sub33623-30120

main33623-30120-J0iJZS133..LHD..4FC199110-199512

DARK BLUE,TRIM8#

sub33623-30120

33623ASPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)

main90501-07009iGS131,JZS133..4FC199110-200104

33625SLEEVE, SHIFT LEVER KNOB

main33625-30030iGS131,JZS133..4FC199110-200104

33626STOPPER, SHIFT LEVER BUTTON

main90256-02004iGS131,JZS133..4FC199110-200104

33631ROD, DETENT

main33631-30130iGS131,JZS133..RHD..4FC199110-200104

main33631-30140iGS131,JZS133..LHD..4FC199110-199904

33631ASPRING, COMPRESSION (FOR DETENT ROD)

main90501-08147iGS131,JZS133..4FC199110-200104

33631BPIN, SLOTTED SPRING (FOR DETENT ROD)

main90256-02003iGS131,JZS133..4FC199110-200104

33631DPIN, GROOVED (FOR DETENT ROD)

main90256-04003iGS131,JZS133..4FC199110-200104

33635AGUIDE, WIRE, NO.1 (FOR SHIFT LEVER)

main33635-30100iGS131,JZS133..RHD..4FC199110-200104

main33635-30110iGS131,JZS133..LHD..4FC199110-199904

33675APIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)

main33726-35010iGS131,JZS133..4FC199110-199308

main90240-08120iGS131,JZS133..4FC199308-200104

33675BBUSH (FOR TRANSMISSION CONTROL ROD)

main90389-08005iGS131,JZS133..4FC199110-200104

33675CGROMMET (FOR TRANSMISSION CONTROL ROD)

main90480-17023iJZS133..4FC199110-200104

main90480-17177iGS131..Q199110-199904

33702BROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)

main33702-30310iJZS133..4FC199110-200104

main33702-30320iGS131..Q199110-199904

33723FSWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)

main33723-22010iGS131,JZS133..4FC199110-199308

main33723-30070iGS131,JZS133..4FC199308-200104

33723GBUSH (FOR FLOOR SHIFT CONTROL SHAFT)

main90389-08005iGS131,JZS133..4FC199110-200104

33723HGROMMET (FOR FLOOR SHIFT CONTROL SHAFT)

main33572-30040iGS131,JZS133..4FC199308-200104

main90480-17177iGS131,JZS133..4FC199110-199308

33886STOPPER, SHIFT LEVER

main33886-30010iGS131,JZS133..4FC199110-200104

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-30050iGS131,JZS133..4FC199110-200104

35921PLATE, CONTROL POSITION INDICATOR

main35921-30350iGS131,JZS133..RHD..4FC199110-200104

main35921-30360iGS131,JZS133..LHD..4FC199110-199904

35971AHOUSING, POSITION INDICATOR, UPPER

main35971-30220iJZS133..EECC199110-199205

HONG KONG SPEC

main35971-30220iJZS133..EECC199205-199210

HONG KONG SPEC OR SINGAPORE SPEC

main35971-30220iGS131,JZS133..RHD..4FC..GEN199110-200104

main35971-30230iGS131,JZS133..LHD..4FC199110-199904

main35971-30240iJZS133..EECC199110-199308

35974HOUSING, POSITION INDICATOR, LOWER

main35974-30060iGS131,JZS133..LHD..4FC199110-199904

main35974-30070iGS131,JZS133..RHD..4FC199110-200104

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-30180iGS131,JZS133..RHD..4FC199110-200104

main35975-30190iGS131,JZS133..LHD..4FC199110-199904

35976BCOVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT)

main35976-30060-B0iJZS133..EECC199110-199308

SHADOW GRAY,TRIM1#

sub35976-30060

main35976-30060-E0iGS131,JZS133..4FC199110-200104

QUARTZ,TRIM4#

sub35976-30060

main35976-30060-J0iJZS133..4FC;GS131..RHD..Q199110-200104

DK.BLUE,TRIM8#

sub35976-30060

8410

8271114470WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14470

9011906144

main90119-06144

9017908001

main90179-08001

9046312570

main90463-12570

9046814004

main90468-14004

9046814033

main90468-14033

9331515012

main93315-15012

9411040800

main94110-40800

9451200800

main94512-00800

9461310800

main94613-10800

45 parts on this diagram · 3 diagrams in section
