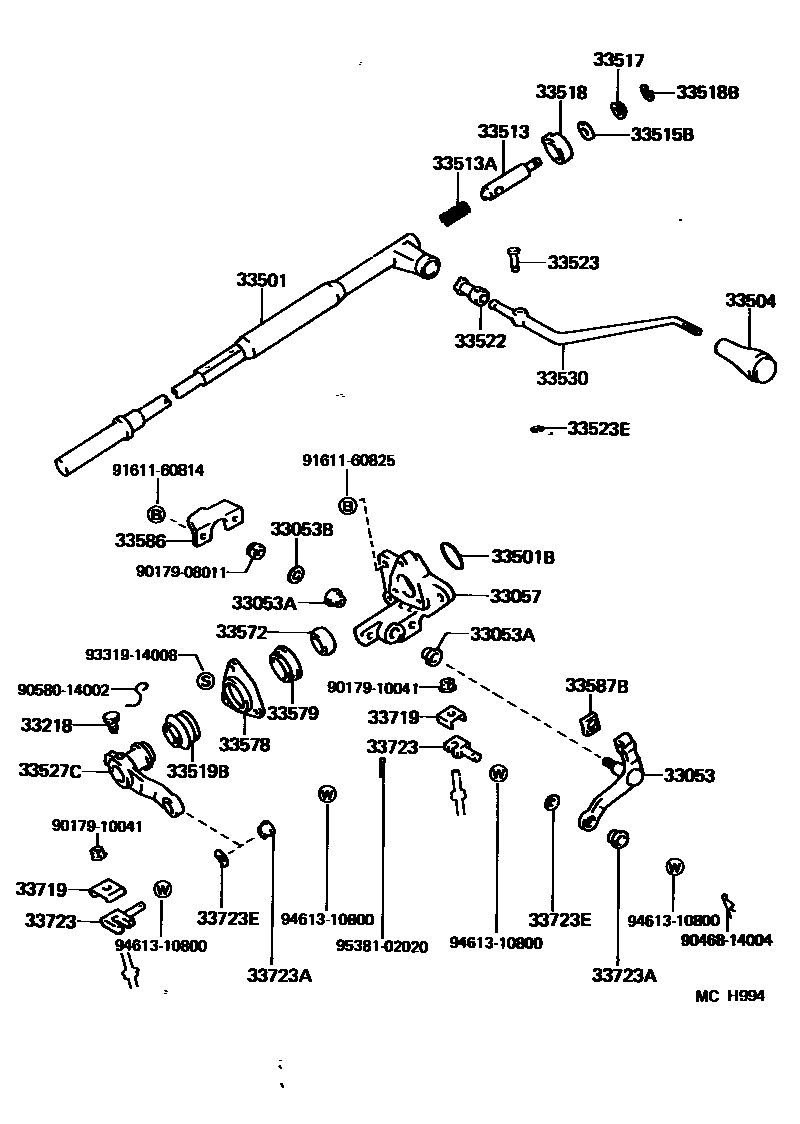

CONTROL SHAFT & CROSSSHAFT
33053LEVER SUB-ASSY, CONTROL SELECT(FOR COLUMN SHIFT)
33053ABUSH(FOR CONTROL SELECT LEVER)
33053BWASHER, PLATE(FOR CONTROL SELECT LEVER)
33057BRACKET SUB-ASSY, CONTROL SHAFT, LOWER(FOR COLUMN SHIFT)
33218BOLT, SHIFT LEVER LOCK
33501SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)
33501BRING, O (FOR COLUMN SHIFT CONTROL SHAFT LOWER)
33504KNOB SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT)
33513SHAFT, CONTROL SHAFT BRACKET, UPPER
33513ASPRING, COMPRESSION (FOR BRACKET UPPER SHAFT)
33515BSEAT, CONTROL UPPER SHAFT (FOR COLUMN SHIFT)
33517RETAINER, CONTROL SHAFT UPPER SPRING
33518BUSH, UPPER CONTROL SHAFT PIECE
33518BRING, E (FOR UPPER CONTROL SHAFT PIECE BUSH)
33519BBOOT, CONTROL SHAFT DUST
33522SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT)
33523PIN, SHIFT LEVER (FOR COLUMN SHIFT)
33523ERING, E (FOR SHIFT LEVER PIN)
33527CLEVER, CONTROL SHIFT (FOR COLUMN SHIFT)
33530LEVER ASSY, SHIFT (FOR COLUMN SHIFT)
33572BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT)
33578SEAT, CONTROL SHAFT LOWER BUSH, NO.1
33579SEAT, CONTROL SHAFT LOWER BUSH, NO.2
33586STOPPER, CONTROL SHIFT LEVER
33587BBUSH, LEVER SELECTING
33719PLATE, SHIFT CONTROL ROD
33723SWIVEL, CONNECTING ROD (FOR COLUMN SHIFT)
33723ABUSH (FOR COLUMN SHIFT CONTROL SHAFT)
33723EWASHER, WAVE (FOR COLUMN SHIFT CONTROL ROD SETTING)
9017908011
main90179-08011
9017910041
main90179-10041
9046814004
main90468-14004
9058014002
main90580-14002
9161160814
main91611-60814
9161160825
main91611-60825
9331914008
main93319-14008
9461310800
main94613-10800
9538102020
main95381-02020
38 parts on this diagram · 2 diagrams in section
