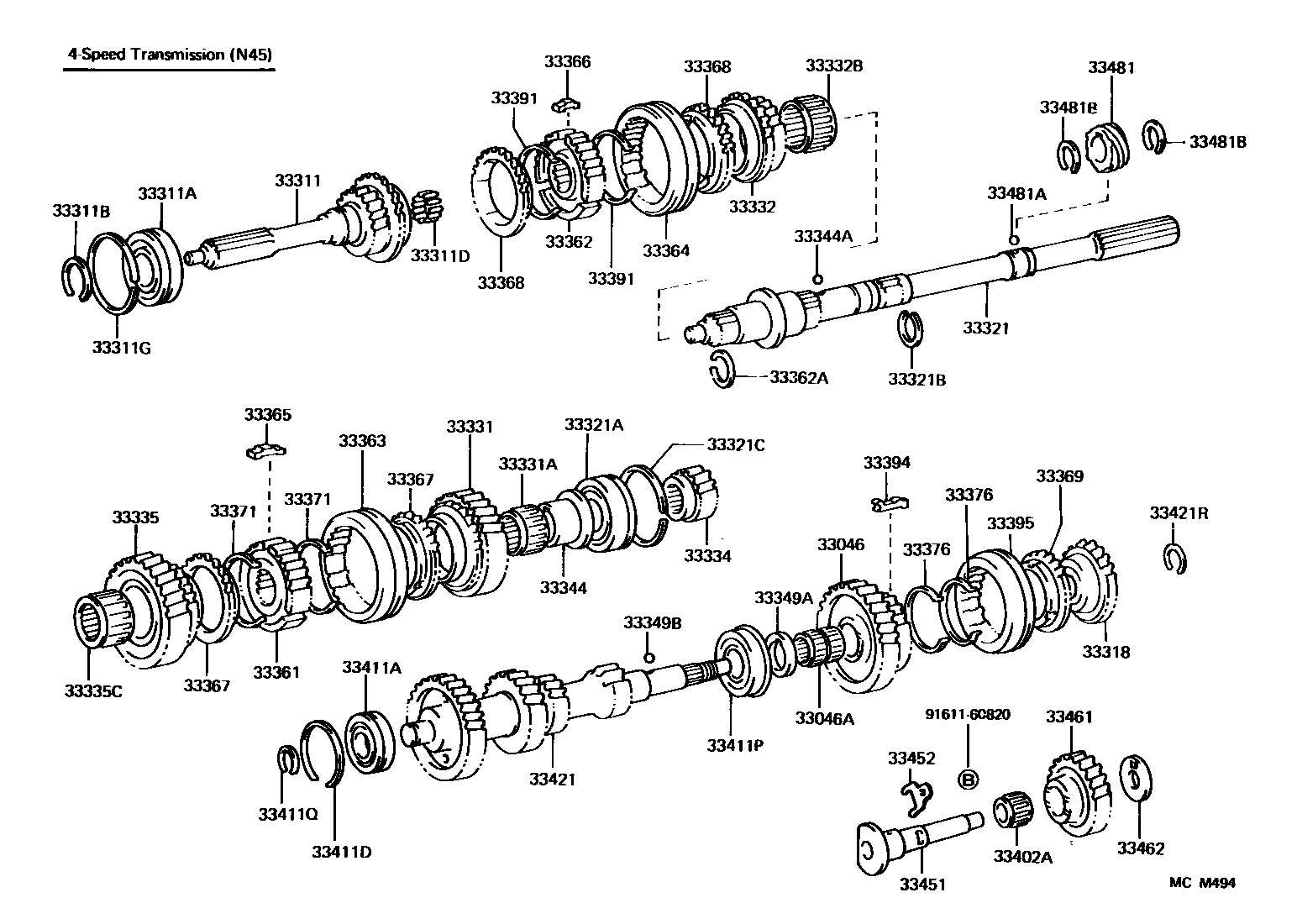

TRANSMISSION GEAR (MTM)
33046GEAR SUB-ASSY, COUNTERSHAFT, 4TH
33046ABEARING(FOR COUNTERSHAFT 4TH GEAR)
33311SHAFT, INPUT
sub33301-30H00
sub33301-30H10
sub33301-30H20
sub33301-30H30
sub33301-30H40
sub33301-30H50
sub33301-30H60
sub33301-30H70
sub33301-30H80
sub33301-30H90
33311ABEARING (FOR INPUT SHAFT FRONT)
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
T=2.05,MARK 0
T=2.10,MARK 1
T=2.15,MARK 2
T=2.20,MARK 3
T=2.25,MARK 4
T=2.30,MARK 5
T=2.30-2.35,MARK 11
T=2.35-2.40,MARK 12
T=2.05,MARK 1
T=2.10,MARK 2
T=2.15,MARK 3
T=2.20,MARK 4
T=2.25,MARK 5
33311GRING, SHAFT SNAP (FOR FRONT BEARING)
33318PIECE, GEAR SPLINE, NO.5
33321SHAFT, OUTPUT
sub33321-35210
sub33362-35060
sub90520-26072
sub90520-26073
sub90520-26074
sub90520-26075
sub90520-26076
sub90520-26077
sub90520-26078
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
T=2.68,MARK 14
T=2.74,MARK 15
T=2.67-2.72,MARK A
T=2.73-2.78,MARK B
T=2.79-2.84,MARK C
T=2.85-2.90,MARK D
T=2.91-2.96,MARK E
T=2.97-3.02,MARK F
T=3.03-3.08,MARK G
T=3.09-3.14,MARK H
T=3.15-3.20,MARK J
T=3.21-3.26,MARK K
T=3.27-3.32,MARK L
T=2.43-2.48,MARK 10
T=2.49-2.54,MARK 11
T=2.55-2.60,MARK 12
T=2.61-2.66,MARK 13
T=2.31-2.36,MARK 8
T=2.37-2.42,MARK 9
T=2.00-2.05,MARK F
T=0.95-1.05,NO MARK
33321CRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
T=1.65,ID=71.1
33331ABEARING (FOR REVERSE GEAR)
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
33334GEAR, 4TH
33335GEAR, 1ST
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33344BUSH, REVERSE GEAR
33344AKEY OR BALL, REVERSE GEAR BEARING
33349AWASHER, 4TH GEAR
33349BBALL (FOR 4TH GEAR WASHER)
33361HUB, TRANSMISSION CLUTCH, NO.1
33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
T=1.85-1.90,MARK D-1
T=1.95-2.00,MARK E-1
T=1.75-1.80,MARK C-1
T=2.05-2.10,MARK F-1
T=1.80-1.85,MARK D
T=1.90-1.95,MARK E
33363SLEEVE, TRANSMISSION HUB, NO.1
33364SLEEVE, TRANSMISSION HUB, NO.2
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33367RING, SYNCHRONIZER, NO.1
1ST GEAR SIDE
REVERSE
33369RING, SYNCHRONIZER, NO.3
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33376SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB)
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33394KEY, SYNCHROMESH SHIFTING, NO.3
33402ABUSH OR BEARING (FOR REVERSE IDLER GEAR)
33411DRING, COUNTER GEAR FRONT BEARING SNAP, NO.1
T=1.07,OD=55.6
33411PBEARING, COUNTERSHAFT CENTER
33411QRING, COUNTER GEAR FRONT BEARING SNAP, NO.2
T=2.10,MARK A
T=2.15,MARK B
T=2.20,MARK C
T=2.25,MARK D
T=2.30,MARK E
T=2.35,MARK F
T=2.10-2.15
T=2.20-2.25
T=2.05-2.10
T=2.15-2.20
T=2.25-2.30
33421RRING, SHAFT SNAP(FOR COUNTER GEAR REAR)
T=2.85
T=2.90
T=2.95
T=3.00
T=3.05
T=3.10
T=3.15
33451SHAFT, REVERSE IDLER GEAR
33462WASHER, REVERSE IDLER THRUST
33481GEAR, SPEEDOMETER DRIVE (MTM)
N=10,MARK 10X34-36,195/65R15
N=10,MARK 10X34-36
N=9,MARK 9X33-35
N=6,MARK 6X18-20
N=10,MARK 10X31-33
33481AKEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM)
33481BRING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)
T=1.50,OD=31.3
9161160820
main91611-60820
54 parts on this diagram · 3 diagrams in section
