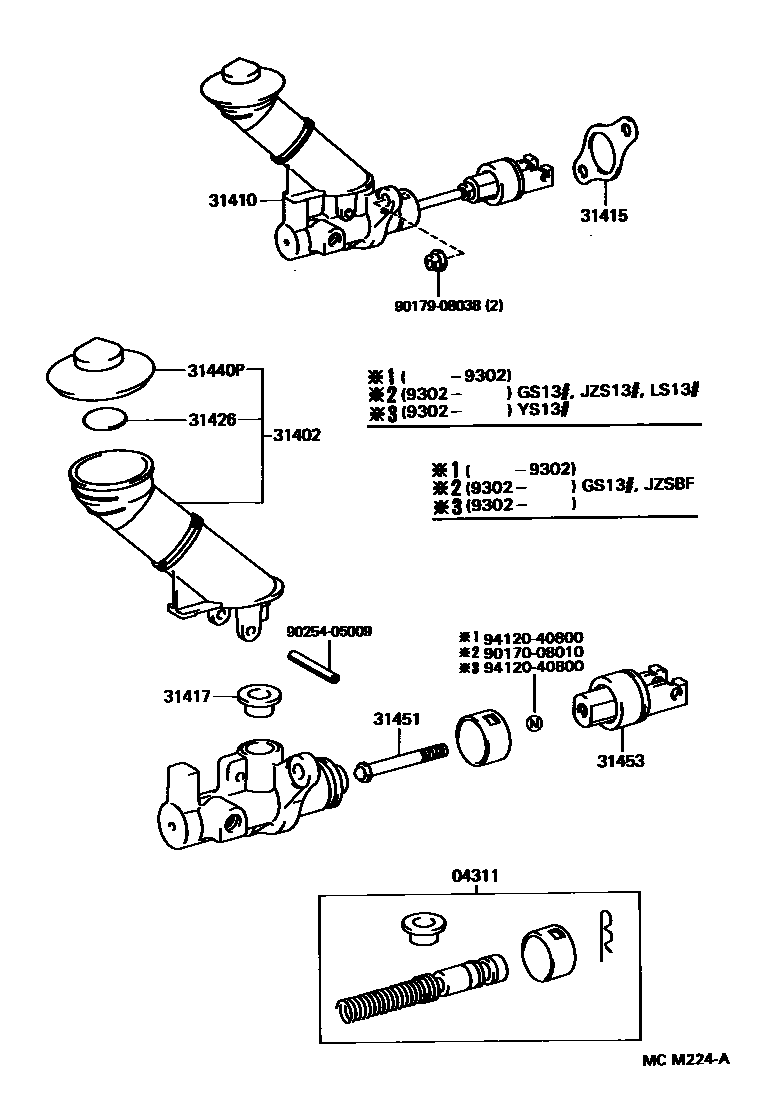

CLUTCH MASTER CYLINDER

0001 1 0002 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-12070iGS131,JZS133,LS130,YS132..MTM199110-199403

sub04311-12100

main04311-12110iJZS133..G199710-200104

main04311-60150iGS131,JZS133,LS130,YS132..MTM199403-199710

sub04311-12110

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-22020iGS131,JZS133,LS130..LHD..MTM199110-199512

main31402-30090iGS131,JZS133,LS130..RHD..MTM199110-200104

main31402-30100iYS132199110-199512

sub31402-22020

31410CYLINDER ASSY, CLUTCH MASTER

main31410-30310iGS131,JZS133,LS130..RHD..MTM199110-199308

sub31410-30380

main31410-30330iYS132199110-199308

sub31410-30400

main31410-30340iGS131,JZS133,LS130..LHD..MTM199110-199308

sub31410-30390

main31410-30380iGS131,JZS133,LS130..RHD..MTM199308-199807

sub31410-30381

main31410-30381iJZS133..G199807-200104

main31410-30390iGS131,JZS133..LHD..5F199308-199512

main31410-30400iYS132199308-199512

sub31410-30390

31415GASKET, CLUTCH MASTER CYLINDER

main31415-10010iGS131,JZS133,LS130,YS132..LHD..MTM199110-199512

31417GROMMET, CLUTCH RESERVOIR

main31417-35010iGS131,JZS133,LS130,YS132..MTM199110-200104

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-22020iGS131,JZS133,LS130,YS132..MTM199110-200104

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iGS131,JZS133,LS130,YS132..MTM199110-200104

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-30170iYS132199110-199512

main31451-35080iGS131,JZS133,LS130..RHD..MTM199110-200104

main31451-60080iGS131,JZS133,LS130..LHD..MTM199110-199512

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-16012iGS131,JZS133,LS130..MTM199110-199302

sub31404-22020

main31404-30060iGS131,JZS133,LS130..MTM199302-199807

sub31404-44020

main31404-44020iJZS133..G199807-200104

main31453-10040iYS132199110-199512

9017008010

main90170-08010

9017908038

main90179-08038

9025405009

main90254-05009

9412040800

main94120-40800

13 parts on this diagram · 2 diagrams in section
