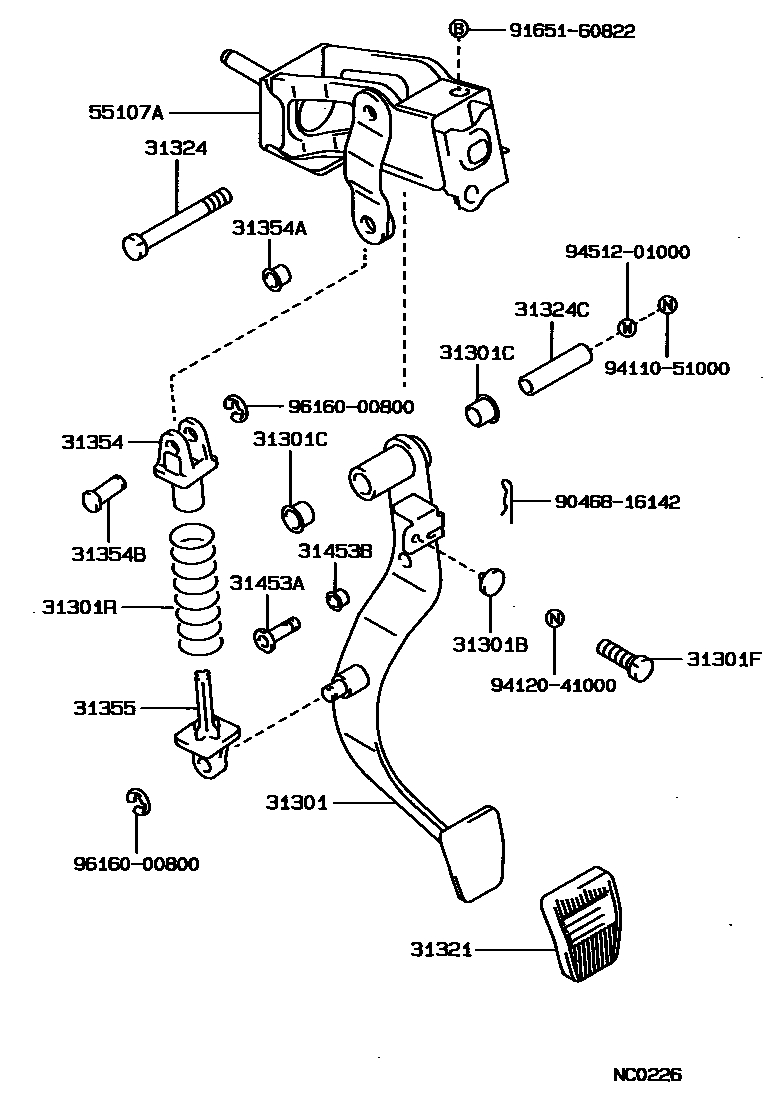

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-30220iGS131,LS130,YS132..LHD199110-199512

main31310-30010iGS131,JZS133,LS130..RHD..MTM199110-200104

main31310-30020iJZS133..LHD..5F199110-199512

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06032iJZS133..5F199110-199512

sub90541-06036

main90541-06036iGS131,YS132..LHD199110-200104

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iGS131,JZS133,LS130,YS132..MTM199110-200104

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iGS131,JZS133,LS130,YS132..MTM199110-200104

31301RSPRING, COMPRESSION(FOR TURNOVER SPRING SEAT)

main90501-35017iGS131,LS130..RHD..MTM199110-199512

main90501-40023iJZS133..5F199110-200104

31321PAD, CLUTCH PEDAL

main31321-14020iGS131,JZS133,LS130,YS132..MTM199110-200104

31324SHAFT, CLUTCH PEDAL

main90101-10039iGS131,JZS133,LS130,YS132..LHD..MTM199110-199512

main90101-10164iGS131,JZS133,LS130..RHD..MTM199110-200104

31324CCOLLAR(FOR CLUTCH PEDAL SHAFT)

main90387-10003iGS131,JZS133,LS130,YS132..LHD..MTM199110-199512

main90387-10105iGS131,JZS133,LS130..RHD..MTM199110-200104

31354SEAT, CLUTCH PEDAL SPRING, UPPER

main31354-30010iJZS133..5F;GS131,LS130..RHD..MTM199110-200104

31354ABUSH(FOR CLUTCH PEDAL SPRING SEAT UPPER)

main90386-10019iJZS133..5F;GS131,LS130..RHD..MTM199110-200104

31354BPIN, W/HOLE(FOR CLUTCH PEDAL SPRING SEAT UPPER)

main90249-10127iJZS133..5F;GS131,LS130..RHD..MTM199110-200104

31355SEAT, CLUTCH PEDAL SPRING, LOWER

main31355-14020iJZS133..5F;GS131,LS130..RHD..MTM199110-200104

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08018iGS131,JZS133,LS130,YS132..MTM199110-200104

L=29.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iGS131,JZS133,LS130,YS132..MTM199110-200104

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-30160iGS131,LS130,YS132..LHD199110-199512

main55107-30180iGS131,JZS133,LS130..RHD..MTM199110-200104

main55107-30210iJZS133..LHD..5F199110-199512

9046816142

main90468-16142

9165160822

main91651-60822

9411051000

main94110-51000

9412041000

main94120-41000

9451201000

main94512-01000

9616000800

main96160-00800

21 parts on this diagram · 4 diagrams in section
