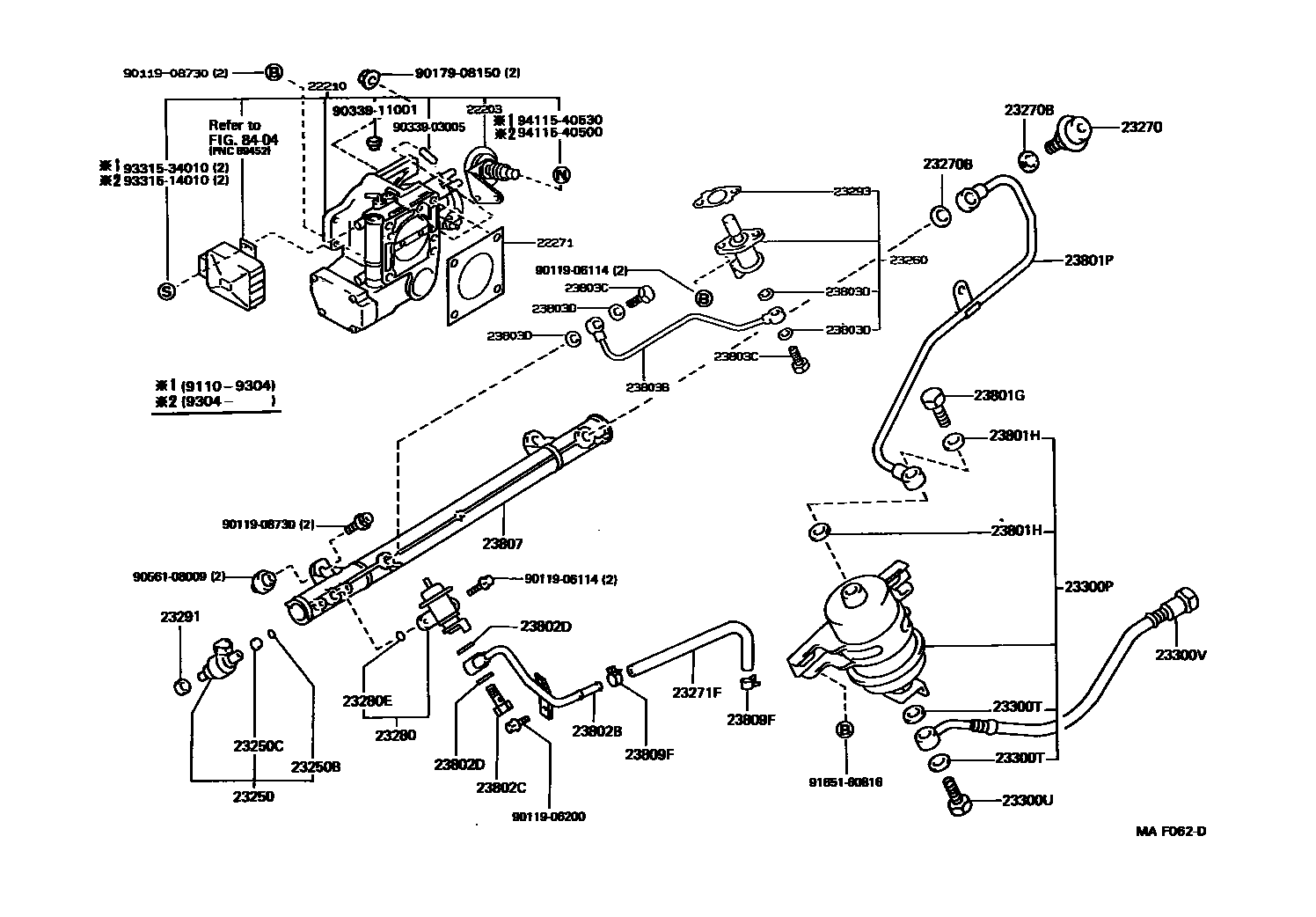

FUEL INJECTION SYSTEM
22203DASH POT SUB-ASSY(FOR THROTTLE BODY)
22271GASKET, THROTTLE BODY
23250BRING, O(FOR FUEL INJECTOR)
23250CGROMMET(FOR FUEL INJECTOR)
23260INJECTOR ASSY, COLD START FUEL
23270BGASKET(FOR PULSATION DAMPER HOSE)
DAMPER SIDE
NO.2
DELIVELY PIPE SIDE
DELIVERY PIPE SIDE
NO.1
DAMPER SIDE
23280REGULATOR ASSY, FUEL PRESSURE
23280ERING, O(FOR FUEL PRESSURE REGULATOR)
23291INSULATOR, INJECTOR VIBRATION
23293GASKET, COLD START INJECTOR
23300PFILTER, FUEL(FOR EFI)
23300TGASKET(FOR FUEL FILTER)
NO.1
NO.2
23300UBOLT, UNION(FOR FUEL FILTER)
23300VHOSE, FUEL(FOR FUEL INLET)
23801GBOLT, UNION(FOR FUEL PIPE)
23801HGASKET(FOR FUEL PIPE)
23802BPIPE SUB-ASSY, FUEL, NO.2
23802CBOLT, UNION(FOR FUEL PIPE NO.2)
23802DGASKET(FOR FUEL PIPE NO.2)
23803BPIPE SUB-ASSY, FUEL, NO.3
23803CGASKET(NOZZLE LEKAGE PIPE NO.3)
23803DBOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
23807PIPE SUB-ASSY, FUEL DELIVERY
sub23807-46011
sub23807-46021
SINGAPORE OR HONG KONG OR THAILAND SPEC
sub23807-46021
sub23807-46021
23809FCLIP(FOR FUEL PIPE SUPPORT)
8404
9011906114
main90119-06114
9011906200
main90119-06200
9011908730
main90119-08730
9017908150
main90179-08150
9033903005
main90339-03005
9033911001
main90339-11001
9056108009
main90561-08009
9165160816
main91651-60816
9331514010
main93315-14010
9331534010
main93315-34010
9411540500
main94115-40500
9411540530
main94115-40530
42 parts on this diagram · 4 diagrams in section
