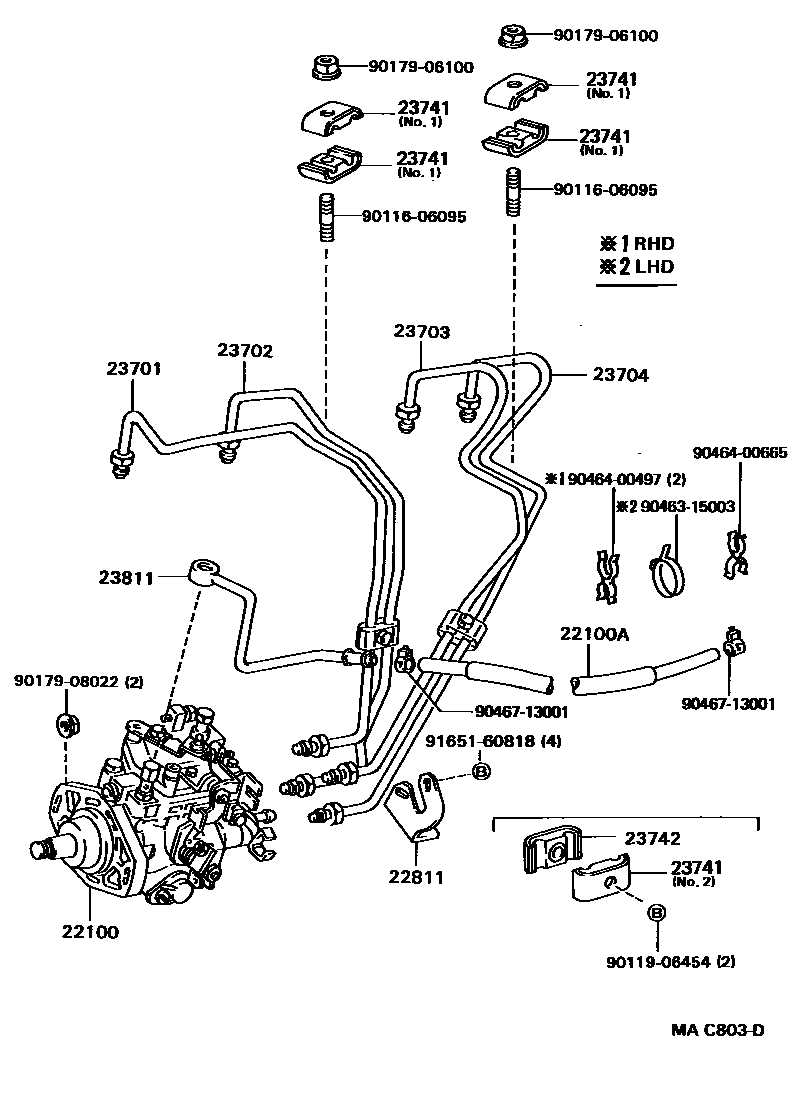

INJECTION PUMP ASSEMBLY

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-54770i2L..LS130..LHD199110-199308

sub22100-54780

main22100-5B350i2L..LS130..RHD199110-199512

main22100-5B490i2L..LS130..4H199505-199512

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main90447-14011i2L..LS130..RHD199110-199512

L=440

main90447-14042i2L..LS130..LHD199110-199308

L=370

22811STAY, INJECTION PUMP, NO.1

main22811-54041i2L..LS130199110-199512

sub22811-54042

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-54140i2L..LS130199110-199512

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-54140i2L..LS130199110-199512

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-54100i2L..LS130199110-199512

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-54100i2L..LS130199110-199512

23741CLAMP, INJECTION PIPE, NO.1

main23741-54010i2L..LS130199110-199512

NO.2

main23741-56010i2L..LS130199110-199512

NO.1

23742CLAMP, INJECTION PIPE, NO.2

main23742-54010i2L..LS130199110-199512

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-54191i2L..LS130199110-199512

9011606095

main90116-06095

9011906454

main90119-06454

9017906100

main90179-06100

9017908022

main90179-08022

9046315003

main90463-15003

9046400497

main90464-00497

9046400665

main90464-00665

9046713001

main90467-13001

9165160818

main91651-60818

19 parts on this diagram · 1 diagram in section
