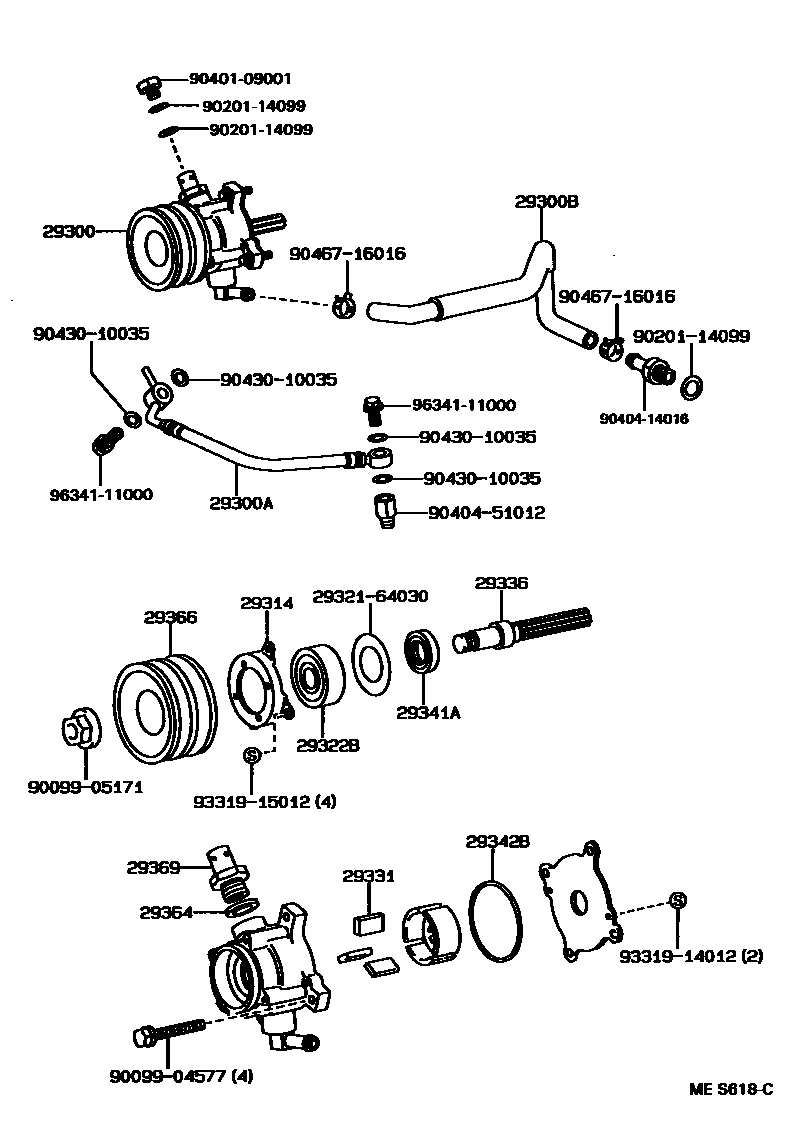

VACUUM PUMP

29300PUMP ASSY, VACUUM

main29300-54100i2L..LS130¥41,300199110-199512

sub29300-54130¥41,500

29300AHOSE, VACUUM PUMP OIL INLET

main90923-02110i2L..LS130¥5,100199110-199301

sub90923-02118¥7,000

main90923-02118i2L..LS130¥7,000199301-199512

29300BHOSE, VACUUM PUMP OIL OUTLET

main29611-54050i2L..LS130¥2,050199110-199512

29314RING, STOP

main29314-64030i2L..LS130199110-199512

29322BBEARING, VACUUM PUMP

main90099-10166i2L..LS130199110-199512

29331BLADE, VACUUM PUMP, A

main29331-64030i2L..LS130199110-199512

29336SHAFT, VACUUM PUMP

main29336-64031i2L..LS130199110-199512

29341ASEAL, OIL

main29341-64030i2L..LS130199110-199512

29342BRING, O

main29342-64030i2L..LS130199110-199512

29364WASHER, VACUUM PUMP

main29364-66010i2L..LS130¥180199110-199512

29366PULLEY, VACUUM PUMP

main29366-54080i2L..LS130199110-199512

29369VALVE SUB-ASSY, CHECK

main29369-64030i2L..LS130199110-199512

2932164030RING, OIL SEAL STOP, VACUUM PUMP

main29321-64030

9009904577

main90099-04577

9009905171

main90099-05171

9020114099

main90201-14099¥230

9040109001

main90401-09001¥180

9040414016

main90404-14016¥240

9040451012

main90404-51012¥180

9043010035

main90430-10035¥190

9046716016

main90467-16016¥240

9331914012

main93319-14012¥70

9331915012

main93319-15012¥70

9634111000

main96341-11000¥160

24 parts on this diagram · 1 diagram in section
