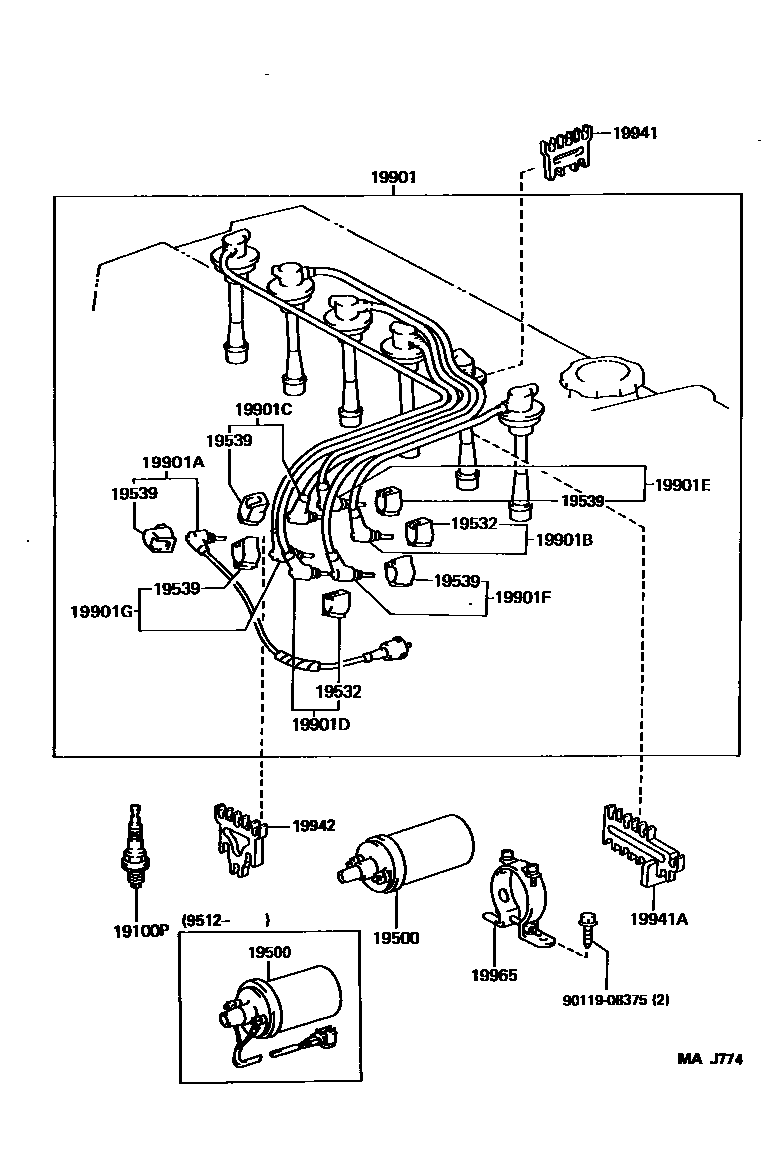

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1 0004 1

19100PPLUG, SPARK

main90919-01059i4Y..YS132199110-199512

W16EX-U

sub90919-01064

main90919-01166i2JZGE..JZS133..GCC,GEN199110-200104

K20R-U

main90919-01168i2JZGE..JZS133..RHD..4FC..GEN..Q199212-199512

PK16R11,HONG KONG OR SINGAPORE OR THAILAND SPEC

sub90919-01217

main90919-01168i2JZGE..JZS133..EECC199110-199308

PK16R11

sub90919-01217

main90919-01169i2JZGE..JZS133..EECC199110-199308

BKR5EP-11

19500COIL ASSY, IGNITION

main19500-70010i1GFE..GS131199512

main90919-02113i1GFE..GS131199110-199512

main90919-02197i2JZGE..JZS133199110-200104

19532HOLDER, RESISTIVE CODE, NO.2

main19532-46010i1GFE..GS131199110-199311

MARK "E"

main19532-46010i2JZGE..JZS133199110-200104

FOR PNC=19901G

main19532-46010i1GFE..GS131199311

MARK"E"

main19532-50010i1GFE..GS131199110-199311

MARK "B"

main19532-50010i1GFE..GS131199311

MARK"B"

19539HOLDER, RESISTIVE CODE, NO.4

main19539-11010i2JZGE..JZS133199110-200104

FOR PNC=19901B

main19539-16010i2JZGE..JZS133199110-199303

FOR PNC=19901D

main19539-46010i2JZGE..JZS133199110-200104

FOR PNC=19901F

main19539-46010i1GFE..GS131199110-199311

MARK "A"

main19539-46010i1GFE..GS131199311

MARK"A"

main19539-50010i1GFE..GS131199308

MARK"C"

main19539-50010i1GFE..GS131199110-199308

MARK "C"

main19539-50010i2JZGE..JZS133199303-200104

FOR PNC=19901D

main19539-62010i2JZGE..JZS133199110-200104

FORPNC=19901C,19901E

main19539-62020i1GFE..GS131199110-199311

MARK "L"

main19539-62020i1GFE..GS131199311

MARK"L"

main19539-71011i4Y..YS132199110-199512

19901CORD SET, COIL & SPARK, W/RESISTIVE

main90919-21533i2JZGE..JZS133..LHD199110-199301

main90919-21544i2JZGE..JZS133..EECC199110-199304

main90919-21545i1GFE..GS131199110

main90919-21564i2JZGE..JZS133..RHD199301-199308

main90919-21565i2JZGE..JZS133..5F..Q;2JZGE..JZS133..LHD..4FC199301-199512

sub90919-29115

main90919-21574i2JZGE..JZS133..RHD;2JZGE..JZS133..LHD..5F..(D,G)199308-200104

sub90919-29135

main90919-22357i4Y..YS132199110-199512

19901ACORD, COIL RESISTIVE

main90919-13413i2JZGE..JZS133..LHD199110-199512

sub90919-13490

main90919-13421i2JZGE..JZS133..RHD199110-200104

main90919-13424i1GFE..GS131199110

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90919-15282i1GFE..GS131199110

main90919-15325i2JZGE..JZS133..EECC199110-200104

main90919-15325i2JZGE..JZS133..EECC;2JZGE..JZS133..5F..Q199212-199304

SINGAPORE OR HONG KONG OR THAILAND SPEC

main90919-15352i4Y..YS132199110-199512

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90919-15283i1GFE..GS131199110

main90919-15326i2JZGE..JZS133..RHD..4FC..GEN..Q199212-199304

SINGAPORE OR HONG KONG OR THAILAND SPEC

main90919-15326i2JZGE..JZS133199110-200104

main90919-15353i4Y..YS132199110-199512

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90919-15284i1GFE..GS131199110

main90919-15327i2JZGE..JZS133..GCC,GEN199110-200104

main90919-15327i2JZGE..JZS133..EECC;2JZGE..JZS133..5F..Q199212-199304

SINGAPORE OR HONG KONG OR THAILAND SPEC

main90919-15354i4Y..YS132199110-199512

19901ECORD, SPARK PLUG RESISTIVE, NO.4

main90919-15285i1GFE..GS131199110

main90919-15328i2JZGE..JZS133199110-200104

main90919-15328i2JZGE..JZS133..EECC;2JZGE..JZS133..5F..Q199212-199304

SINGAPORE OR HONG KONG OR THAILAND SPEC

main90919-15355i4Y..YS132199110-199512

19901FCORD, SPARK PLUG RESISTIVE, NO.5

main90919-12946i2JZGE..JZS133199110-200104

main90919-15286i1GFE..GS131199110

19901GCORD, SPARK PLUG RESISTIVE, NO.6

main90919-15287i1GFE..GS131199110

main90919-15329i2JZGE..JZS133..EECC199110-200104

main90919-15329i2JZGE..JZS133..EECC;2JZGE..JZS133..5F..Q199212-199304

SINGAPORE OR HONG KONG OR THAILAND SPEC

19941CLAMP, RESISTIVE CORD, NO.1

main90929-01031i4Y..YS132199110-199512

main90929-01277i2JZGE..JZS133199110-200104

main90929-01298i1GFE..GS131199110

19941ACLAMP(FOR RESISTIVE CORD)

main90929-01301i1GFE..GS131199110

19942CLAMP, RESISTIVE CORD, NO.2

main90929-01278i2JZGE..JZS133199110-200104

main90929-01300i1GFE..GS131199110

19965BAND, IGNITION COIL, NO.1

main90919-03094i1GFE..GS131199110

main90919-03105i2JZGE..JZS133199110-200104

9011908375

main90119-08375

17 parts on this diagram · 4 diagrams in section
