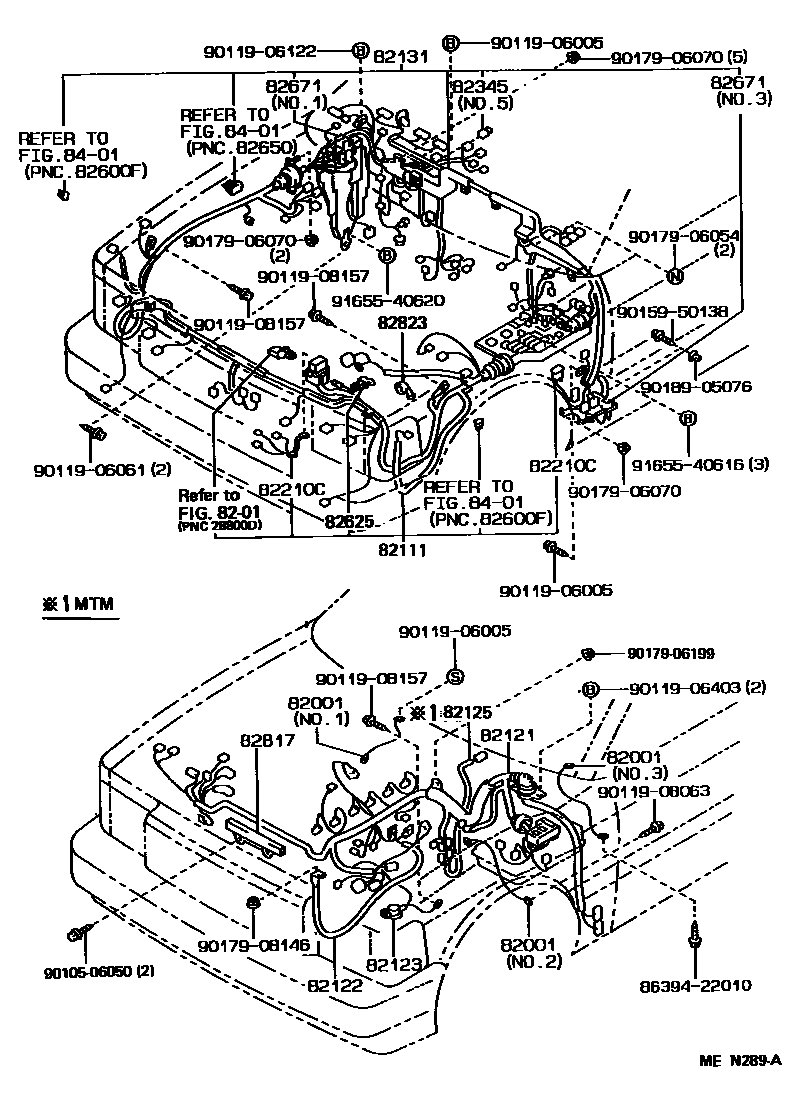

WIRING & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1CLAMP & GROMMET 0010 1CLAMP & GROMMET 0011 1CLAMP & GROMMET 0012 1CLAMP & GROMMET 0013 1CLAMP & GROMMET 0014 1CLAMP & GROMMET 0015 1CLAMP & GROMMET 0016 1DIODE 0017 1REPAIR WIRE

82001CABLE, BOND, NO.1

main90980-07200iYS132;MS135..GCC198810-198811

NO.1

main90980-07219iGS131,MS13#,YS132198709-198908

NO.2

main90980-07238iGS131,MS13#,YS132198709-198908

NO.3

main90980-07292iMS132,133199102

main90980-07308iGS131,MS135198810-199110

NO.1

main90980-07343×2iGS131,MS135,YS132..4F,4FC,4HC,5F199102-199110

NO.2,NO.3

8201

82111WIRE, ENGINE ROOM MAIN

main82111-30770iLS130..LHD198709-198908

main82111-30771iLS130..4F198908-199110

main82111-30780iYS132198709-198711

main82111-30781iYS132198711-198908

main82111-30782iYS132198908-199110

main82111-30790iMS132..LHD..(DLX,SAL,STD)198709-198908

W(FRONT FOG LAMP) OR W(AIR CONDITIONER)

main82111-30791iMS132198908-199110

main82111-30800iMS135..LHD198709-198809

main82111-30801iMS135..LHD198809-198908

main82111-30802iMS135..LHD198908-199110

main82111-30810iMS133198709-198908

main82111-30811iMS133..GCC198908-199110

main82111-30820iMS132..RHD198709-198908

main82111-30860iMS132..LHD..(DLX,SAL,STD)198709-198908

main82111-3A160iLS130..RHD198709-198908

main82111-3A161iLS130..4H198908-199110

main82111-3A170iMS135..RHD198709-198809

main82111-3A171iMS135..RHD198809-198908

main82111-3A172iMS135..RHD198908-199110

main82111-3A250iGS131198812-198908

main82111-3A370iMS133..GEN198908-199110

82121WIRE, ENGINE

main82121-30300iLS130..RHD198709-198908

main82121-30301iLS130..4H198908-199110

main82121-30310iLS130..LHD198709-198908

main82121-30311iLS130..4F198908-199110

main82121-30320iMS132..LHD..4FC198709-198908

main82121-30321iMS132198908-199110

main82121-30330iMS135..LHD198709-198809

main82121-30331iMS135..LHD198809-198908

main82121-30332iMS135..LHD198908-199108

main82121-30333iMS135..LHD199108-199110

main82121-30340iMS133198709-198809

main82121-30341iMS133198809-198908

main82121-30342iMS133..GCC198908-199110

main82121-30350iMS132..RHD198709-198908

main82121-30370iMS132..LHD..MTM198709-198908

main82121-30460iMS135..RHD198709-198809

main82121-30461iMS135..RHD198809-198908

main82121-30462iMS135..RHD198908-199108

main82121-30463iMS135..RHD199108-199110

main82121-30480iGS131198812-198908

main82121-30481iGS131..ROY198908-199110

main82121-30520iMS133..GEN198908-199110

main82121-30530iGS131..SAL198908-199110

82122WIRE, ENGINE, NO.2

main82122-30160iLS130198709-198908

main82122-30161iLS130198908-199110

main82122-30200iGS131198812-199110

main82122-30230iYS132198709-198908

main82122-30231iYS132198908-199110

main82122-30240iMS13#198709-199007

main82122-30241iMS13#199007-199110

82123WIRE, ENGINE, NO.3

main82123-30110iLS130198709-199110

main82123-30120iYS132198709-198711

main82123-30121iYS132198711-199110

main82123-30130iYS132198709-198711

34B19L OR 55D23L OR 75D31L BATTERY

main82123-30131iYS132198711-199110

34B19L OR 55D23L OR 75D31L BATTERY

main82123-30140iMS132,133198709-199110

main82123-30150iMS133198709-198908

55D23L OR 75D31L BATTERY

main82123-30170iGS131198812-199110

82125WIRE, TRANSMISSION

main82125-30100iLS130..4H198912-199110

main82125-30110iGS131..SAL;LS130..RHD..4F198709-199110

main82125-30130iYS132198709-199110

main82125-30150iMS132,133..MTM;GS131..5F..ROY198908-199110

82131WIRE, COWL

main82131-3F030iLS130..LHD198709-198908

main82131-3F031iLS130..4F198908-199110

main82131-3F040iYS132198709-198908

main82131-3F041iYS132198908-199110

main82131-3F051iMS132..SED..5F..SAL..GCC198709-198908

W(AIR CONDITIONER)

main82131-3F052iMS132..DLX,SAL,STD198908-199110

main82131-3F060iMS132..LHD..ROY198709-198908

main82131-3F062iMS132..ROY198908-199110

main82131-3F070iMS135..LHD198709-198908

main82131-3F072iMS135..LHD198908-199110

main82131-3F091iMS132..RHD..(DLX,SAL,STD)198709-198908

main82131-3F110iMS132..SED..5F..SAL..GCC198709-198908

main82131-3F291iMS133198709-198908

main82131-3F292iMS133..GCC198908-199110

main82131-3F430iLS130..RHD198709-198801

main82131-3F431iLS130..RHD198801-198908

main82131-3F432iLS130..4H198908-199008

main82131-3F433iLS130..4H199008-199110

main82131-3F440iMS132..RHD..ROY198709-198908

main82131-3F450iMS135..RHD198709-198908

main82131-3F452iMS135..RHD198908-199110

main82131-3F640iGS131198812-198908

main82131-3F860iMS133..GEN198908-199110

82210CFUSIBLE LINK

main90982-08169iGS131,LS130,MS13#,YS132198709-198908

L=110,1.0Y

main90982-08188iGS131,LS130,MS133,135..RHD198908-199110

30A,TERM.:FEMALE,PNK

main90982-08189iGS131,LS130,MS13#,YS132198709-198908

40A,TERM.:FEMALE,GRN

main90982-08203iMS132,YS132198709-198908

80A,TERM.:MALE,BLK

main90982-08223iGS131,MS13#,YS132198709-198908

30A,TERM.:MALE,PNK

main90982-08227iMS135..RHD;GS131,LS130,MS132,133,YS132198908-199110

50A,TERM.:FEMALE,RED

main90982-08246iGS131,MS133,135198709-198908

100A,TERM.:MALE,BLUE

82345DIODE

main82345-12030iGS131,MS13#198709-199110

COWL,NO.5

main82345-22051iMS135198709-199110

COWL,NO.2

82625TERMINAL, FUSIBLE LINK

main82625-12030iGS131,MS13#,YS132198908-199110

82671BLOCK, JUNCTION

main82671-28010iYS132198803-198908

E/G ROOM WIRE NO.6

main82671-30090iLS130,MS13#,YS132..LHD198709-198908

RH COWL SIDE NO.1

main82671-30100iLS130..LHD;GS131,MS13#,YS132198709-199110

BLOWER MOTOR

main82671-30110iGS131,LS130,MS13#,YS132..HT,SED198709-198908

RH LOWER BACK

main82671-30140iGS131,LS130,MS13#,YS132..HT,SED198908-199110

LH,LOWER BACK

main82671-30160iGS131,LS130,MS13#,YS132198908-199110

RH,CENTER PILLAR

main82671-30170iGS131,LS130,MS13#,YS132198709-198908

LH CENTER PILLAR

main82671-30180iGS131,LS130,MS132,135..RHD198709-198908

LH COWL SIDE NO.3

main82671-30190iMS132..ROY;GS131,LS130,MS133,135,YS132..LHD198908-199110

RH,COWL SIDE NO.3

main82671-30200iGS131,LS130,MS133,135..RHD198908-199110

RH,COWL SIDE NO.4

main82671-30210iGS131,LS130,MS13#,YS132..LHD198908-199110

LH,COWL SIDE NO.4

main82671-30220iMS132..SAL;MS132,135..LHD..(ROY,STD);LS130,MS133,YS132..4F,4FC,5F198709-198801

CONSOLE REAR NO.1

main82671-30270iMS135..SED..GCC;MS132,133..DLX,SAL198908-199110

CONSOLE REAR,NO.3

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-22660iGS131198812-199110

TIMING BELT COVER

main82817-23010iMS132..WG198709-198908

BACK DOOR,NO.2

main82817-30830iGS131,MS135..RHD..4FC198908-199110

FLOOR,RH

main82817-30850iLS130,MS132,YS132..(DLX,STD)..GEN198709-198808

LH,FRONT DOOR

main82817-30891iGS131,MS135..RHD..4FC198908-199110

FLOOR,LH

main82817-3A020iLS130,MS132,YS132..(DLX,STD)..GEN198709-198808

RH,FRONT DOOR

main82817-3A220iGS131,LS130,MS13#,YS132..SED,WG198709-199110

RH,REAR DOOR

main82817-3A230iGS131,LS130,MS13#,YS132..SED,WG198709-199110

LH,REAR DOOR

main82817-3A240iMS133,135..HT198709-199110

RH,REAR DOOR

main82817-3A250iMS133,135..HT198709-199110

LH,REAR DOOR

main82817-3A260iGS131,LS130,MS13#,YS132..HT,SED198709-199110

LH,REAR WHEEL HOUSE

main82817-3A440iGS131,MS132,135..RHD..4FC..ROY198709-198908

CONSOLE BOX BRACKET

main82817-3A450iMS132,133;MS135..LHD;GS131,LS130,YS132..4F,5F198909-199110

CONSOLE BOX BRACKET

main82817-91602iMS132..WG198709-199110

BACK DOOR,NO.1

main82817-91707iMS132..WG198709-199110

FLOOR,LH

82823CAP, TERMINAL, NO.1

main82823-12020iYS132198709-199110

main82823-22050iMS132..DLX198908-199110

main82823-22060iMS132,133198809-198908

main82823-30060iLS130198809-198908

main82823-32020iLS130198709-198809

8401

8639422010

main86394-22010

9010506050

main90105-06050

9011906005

main90119-06005

9011906061

main90119-06061

9011906122

main90119-06122

9011906403

main90119-06403

9011908063

main90119-08063

9011908157

main90119-08157

9015950138

main90159-50138

9017906054

main90179-06054

9017906070

main90179-06070

9017906199

main90179-06199

9017908146

main90179-08146

9018905076

main90189-05076

9165540616

main91655-40616

9165540620

main91655-40620

31 parts on this diagram · 17 diagrams in section
