BATTERY & BATTERY CABLE

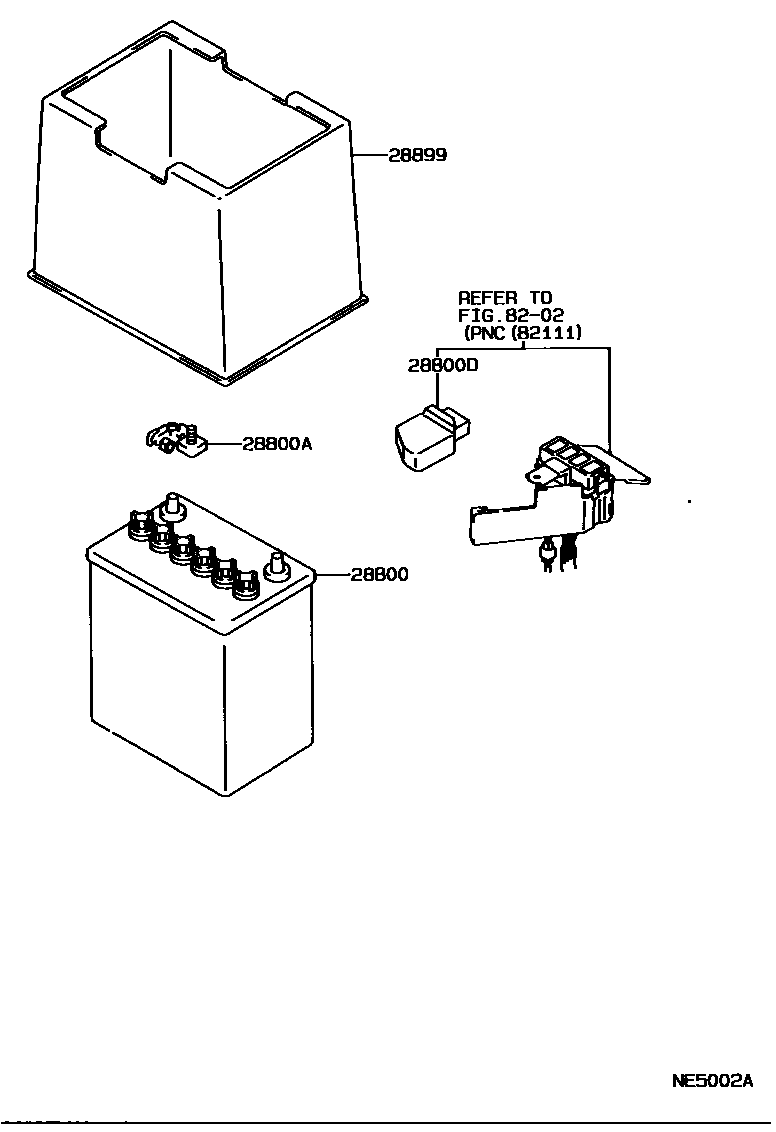

Parts diagram
28800BATTERY
main28800-26040i198709-199110
34B19L
sub28800-26050
main28800-41110i198812-199110
55D26L
sub28800-73010
main28800-42030i198709-199110
55D23L
sub28800-64010
main28800-42080i198910-199101
75D26L
sub28800-42090
main28800-42080i199101-199110
75D26L,GS
sub28800-42090
main28800-42090i199101-199110
75D26L,YUASA
sub28800-67102
main28800-42120i199101-199110
75D26L,MATSUSHITA
sub28800-42122
main28800-42130i198908-199110
75D31L
sub28800-42010
main28800-42130i199101-199110
75D31L,GS
sub28800-42010
main28800-43011i198709-199101
46B24L
sub28800-62040
main28800-45050i198908-199101
75D31L,GS
sub28800-42130
main28800-45050i198709-198908
75D31L
sub28800-42130
main28800-54030i198709-199110
95D31L
sub28800-64180
main28800-54170i198709-199101
75D26L
sub28800-42080
main28800-54200i198709-198908
80D26L
sub28800-64130
main28800-54200i198908-199101
80D26L,GS
sub28800-64130
main28800-62040i198908-199110
46B24L
main28800-64130i199101-199110
80D26L,YUASA
sub28800-64132
main28800-64130i198908-199110
80D26L
sub28800-64132
main28800-72010i198709-199110
34B19L(S)
sub28800-72020
28800ATERMINAL, BATTERY POSITIVE
main90982-05041i198709-199110
main90982-05042i198709-199110
34B19L OR 55D23L OR 75D31L BATTERY
main90982-05042i198709-199110
55D23L OR 75D31L BATTERY
main90982-05042i198709-199110
28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)
main82821-16020i198709-199110
main82821-30140i198902-199110
28899INSULATOR, BATTERY
main28899-42040i198709-199110
75D26L BATTERY
main28899-70010i198709-199110
8202

5 parts on this diagram · 1 diagram in section
