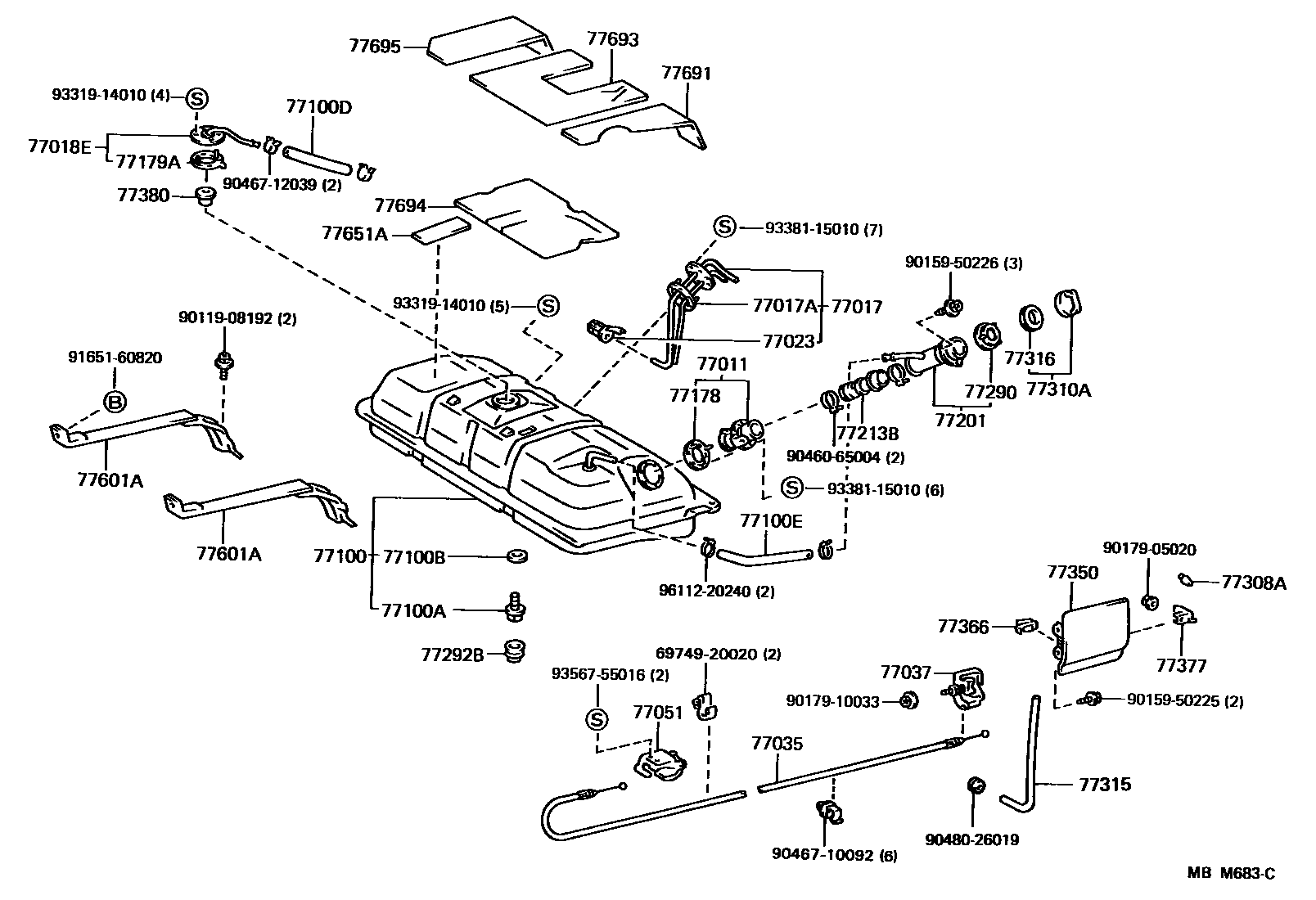

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0013 1 0014 1 0015 1 0016 1 0017 1

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-30020iMS133,135198709-198811

main77011-30021iGS131,MS133,135198811-199110

main77011-30030iLS130,MS132,YS132..SED198709-199110

77017TUBE SUB-ASSY, FUEL AND EVAPORATION VENT

main77017-30110iLS130,MS132,YS132..SED198709-199110

77017AGASKET, FUEL TANK VENT

main77169-14010iLS130,MS132,YS132..SED198709-199110

main83361-20030iMS132..WG198709-199110

77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT

main77018-30050iGS131,LS130,MS13#,YS132..HT,SED198709-199110

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-12031iLS130,MS132,YS132..SED198709-199110

main77023-22040iMS132..WG198709-199110

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-30120iLS130,MS132,135..RHD198709-199008

sub77035-30130

main77035-30130iGS131,LS130,MS133,135..RHD198812-199110

main77035-30150iGS131,LS130,MS13#,YS132..LHD..(HT,SED)198709-199110

main77035-91704iMS132..WG198709-199110

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-14010iLS130,MS13#,YS132..HT,SED198709-198711

sub77037-90K00

main77037-90K00iGS131,LS130,MS13#,YS132..HT,SED198711-199110

main77037-91701iMS132..WG198709-199110

77051LEVER SUB-ASSY, FUEL LID OPEN

main77051-30060-02iGS131,LS130,MS13#,YS132198709-199110

MAROON,TRIM3#

sub77051-30060

main77051-30060-04iMS132,135;GS131,LS130,MS133,YS132..SAL,SALEX,STD198709-199110

BLUE,TRIM8#

sub77051-30060

main77051-30060-06iMS132,135..ROY,SAL;GS131,MS133..SAL,SALEX198709-199110

SABLE,TRIM4#

sub77051-30060

77100TANK ASSY, FUEL

main77001-30934iMS133,135198709-198811

sub77001-30936

main77001-30935iLS130,MS132,YS132..SED198709-199110

main77001-30936iGS131,MS133,135198811-199110

main77001-39235iMS132..WG198709-199110

77100APLUG(FOR FUEL TANK)

main90105-12116iGS131,LS130,MS13#,YS132..HT,SED198709-199110

main90341-20004iMS132..WG198709-199110

77100BGASKET(FOR FUEL TANK)

main90430-12245iGS131,LS130,MS13#,YS132..HT,SED198709-199110

main90430-20007iMS132..WG198709-199110

77100DHOSE, FUEL, NO.1(FOR FUEL TANK)

main95333-06020iGS131,LS130,MS13#,YS132..HT,SED198709-199110

L=200

sub95337-06020

main95333-08080iMS132..WG198709-199110

sub95333-08100

77100EHOSE, FUEL, NO.2(FOR FUEL TANK)

main90445-14114iMS132..WG198709-199110

L=800

main90445-22016iLS130,MS132,YS132..SED198709-199110

L=220

sub90445-22024

main90445-22913iGS131,MS133,135198709-199110

L=300

sub90445-22024

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-10010iGS131,LS130,MS13#,YS132..HT,SED198709-199110

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-16010iGS131,LS130,MS13#,YS132..HT,SED198709-199110

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-30170iLS130,MS13#,YS132..HT,SED198709-198811

sub77201-30171

main77201-30171iGS131,LS130,MS13#,YS132..HT,SED198811-199110

main77201-30190iLS130..RHD198709-198811

SINGAPORE SPEC

sub77201-30191

main77201-30191iLS130..4H198811-198908

SINGAPORE SPEC

main77201-91708iMS132..WG198709-198908

main77201-91709iMS132..WG198908-199110

77213BHOSE, FUEL TANK TO FILLER PIPE

main77019-91701iMS132..WG198908-199110

main77213-30060iMS133,135198709-198808

sub77213-30090

sub90460-65004

main77213-30061iGS131,MS133,135198811-199110

sub77213-30100

main77213-30080iLS130,MS132,YS132..SED198709-199110

L=222.8

main77213-30100iGS131,MS133,135199102-199110

main77213-91704iMS132..WG198709-198908

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77291-22030iMS132..WG198709-199110

main77291-30030iGS131,LS130,MS13#,YS132..HT,SED198709-199110

77292BSHIELD, FUEL TANK DRAIN PLUG

main77292-30020iGS131,LS130,MS13#,YS132..HT,SED198709-199110

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90541-08003iMS132..WG198709-199110

main90541-08016iGS131,LS130,MS13#,YS132..HT,SED198709-199110

sub90541-08014

77310ACAP ASSY, FUEL TANK

main77310-16011iGS131,MS13#,YS132198709-199110

sub77310-12140

main77310-30060iLS130..RHD..4F198709-198908

SINGAPORE SPEC

main77310-32011iLS130198709-199110

77315HOSE, FUEL FILLER OPENING

main90446-09011iLS130,MS13#,YS132..HT,SED198709-198710

L=590

77316GASKET, FUEL TANK CAP

main77316-16010iGS131,LS130,MS13#,YS132198709-199110

77350LID ASSY, FUEL FILLER OPENING

main77350-30130iGS131,LS130,MS132,135,YS132..SED198709-198905

sub77350-30131

main77350-30131iGS131,LS130,MS13#,YS132..SED198905-199110

main77350-30150iMS133,135..HT198709-199110

main77350-91704iMS132..WG198709-199110

sub77350-31010

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-24010iGS131,LS130,MS13#,YS132198709-199110

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-20030iGS131,LS130,MS13#,YS132198709-199110

77380VALVE ASSY, FUEL CUT OFF

main77380-14020iGS131,LS130,MS13#,YS132..HT,SED198709-199110

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-30110iGS131,MS133,135198709-198908

sub77601-30140

main77601-30120iLS130,MS132,YS132..SED198709-199110

main77601-30140iGS131,MS133,135198908-199110

main77602-91703iMS132..WG198709-199110

77651ACUSHION, FUEL TANK, NO.1

main77651-30070iGS131,MS133,135198709-199110

77691SHEET, FUEL TANK SILENCER, UPPER NO.1

main77691-30030iLS130,MS132,YS132..SED198709-199110

77693SHEET, FUEL TANK SILENCER, UPPER NO.2

main77693-30030iLS130,MS132,YS132..SED198709-199110

77694SHEET, FUEL TANK SILENCER, LOWER NO.2

main77694-30020iLS130,MS132,YS132..SED198709-199110

77695SHEET, FUEL TANK SILENCER, UPPER NO.3

main77695-30030iLS130,MS132,YS132..SED198709-199110

6974920020CLAMP, FRONT DOOR LOCK LINK

main69749-20020

9011908192

main90119-08192

9015950225

main90159-50225

9015950226

main90159-50226

9017905020

main90179-05020

9017910033

main90179-10033

9046065004

main90460-65004

9046710092

main90467-10092

9046712039

main90467-12039

9048026019

main90480-26019

9165160820

main91651-60820

9331914010

main93319-14010

9338115010

main93381-15010

9356755016

main93567-55016

9611220240

main96112-20240

48 parts on this diagram · 16 diagrams in section
