FRONT MOULDING

0001 1 0002 1 0003 1

75397CCLIP, OUTSIDE MOULDING, NO.3

main75397-30040iGS131,LS130,MS13#,YS132..SED,WG198709-199110

75498CSEAL, OUTSIDE MOULDING, NO.2

main75498-30020iGS131,LS130,MS13#,YS132..SED,WG198709-199110

75531MOULDING, WINDSHIELD, OUTER UPPER

main75531-30180iGS131,LS130,MS13#,YS132..SED,WG198709-199110

main75531-30190iMS133,135..HT198709-199110

75533CGARNISH, FRONT PILLAR, OUTER RH

main75533-30210iGS131,LS130,MS13#,YS132..SED,WG198709-199110

main75533-30220iMS133,135..GCC198709-198908

main75533-30221iMS133,135..HT198908-199110

75534CGARNISH, FRONT PILLAR, OUTER LH

main75534-30190iGS131,LS130,MS13#,YS132..SED,WG198709-199110

main75534-30200iMS133,135..GCC198709-198908

main75534-30201iMS133,135..HT198908-199110

75546BCLIP, WINDSHIELD OUTSIDE MOULDING, NO.2

main75546-30050iGS131,LS130,MS13#,YS132198709-199110

75549CFASTENER, WINDSHIELD OUTSIDE MOULDING, NO.2

main75549-20090iGS131,LS130,MS13#,YS132198709-199110

75615DMOULDING, FRONT FENDER, REAR RH

main75615-30090iGS131,LS130,MS13#,YS132198709-198908

sub75615-30H01

main75615-30091iGS131,LS130,MS13#,YS132..SED,WG198908-198912

sub75615-30120

main75615-30120iGS131,LS130,MS13#,YS132198908-199110

75616DMOULDING, FRONT FENDER, REAR LH

main75616-30090iGS131,LS130,MS13#,YS132198709-198908

sub75615-30H01

main75616-30091iGS131,LS130,MS13#,YS132..SED,WG198908-198912

sub75616-30120

main75616-30120iMS133,135..HT198908-199110

main75616-30140iMS133,135..HT198912-199110

sub75616-30120

75770MOULDING ASSY, HOOD, FRONT

main75770-30150iGS131,MS132,135..ROY..GEN198709-198908

main75770-30160iMS135..RHD..4FC198712-198908

W/O(FRONT FOG LAMP)

main75770-30160iMS135..RHD..4FC198709-198712

SINGAPORE SPEC

main75770-30160iLS130,MS132,YS132..DLX,SAL,STD198709-198908

main75770-30190iMS133,135..GCC198709-198908

main75770-30200iMS133..5F..GEN198908-199110

THAILAND SPEC

main75770-30200iGS131,MS132,135..SED..ROY198908-199110

main75770-30210iGS131,LS130,MS132,133,YS132..DLX,SAL,STD198908-199110

W/O(FRONT FOG LAMP)

main75770-30230iMS133,135..HT198908-199102

sub75770-30231

main75770-30231iMS133,135..HT199102-199110

75772DMOULDING, HOOD, REAR

main75772-30090iMS133..SALEX198709-198910

sub75772-30091

main75772-30091iGS131,LS130,MS13#,YS132198908-199110

75774ESPACER, HOOD MOULDING

main75774-30010iMS133,135..GCC198709-198908

main75774-30020iGS131,MS132,135..ROY..GEN198709-198908

main75774-30030iMS135..RHD..4FC198709-198712

SINGAPORE SPEC

main75774-30030iLS130,MS132,YS132..DLX,SAL,STD198709-198908

main75774-30030iMS135..RHD..4FC198712-198908

W/O(FRONT FOG LAMP)

main75774-30040iMS133..SAL..GEN198908-199110

THAILAND SPEC

main75774-30040iGS131,MS132,135..SED..ROY198908-199110

main75774-30050iMS135..RHD..4FC198908-199110

W/O(FRONT FOG LAMP)

75786BRETAINER, HOOD FRONT MOULDING

main75786-30070iGS131,MS132,135..ROY..GEN198709-198908

main75786-30080iLS130,MS132,YS132..DLX,SAL,STD198709-198908

main75786-30080iMS135..RHD..4FC198712-198908

W/O(FRONT FOG LAMP)

main75786-30080iMS135..RHD..4FC198709-198712

SINGAPORE SPEC

main75786-30090iMS133..SAL..GEN198908-199110

THAILAND SPEC

main75786-30090iGS131,MS132,135..SED..ROY198908-199110

main75786-30100iMS135..RHD..4FC198908-199110

W/O(FRONT FOG LAMP)

75961CLIP, WINDSHIELD OUTSIDE MOULDING, NO.4

main75961-30010iGS131,LS130,MS13#,YS132..SED,WG198709-199110

75962CLIP, WINDSHIELD OUTSIDE MOULDING, NO.5

main75962-30010iGS131,LS130,MS13#,YS132..SED,WG198709-199110

75963ACLIP, FRONT PILLAR OUTER GARNISH, NO.3

main75963-30010iGS131,LS130,MS13#,YS132..SED,WG198709-199110

75964ACLIP, FRONT PILLAR OUTER GARNISH, NO.4

main75964-30010iGS131,LS130,MS13#,YS132..SED,WG198709-199110

9015950280

main90159-50280

9016440057

main90164-40057

9018905074

main90189-05074

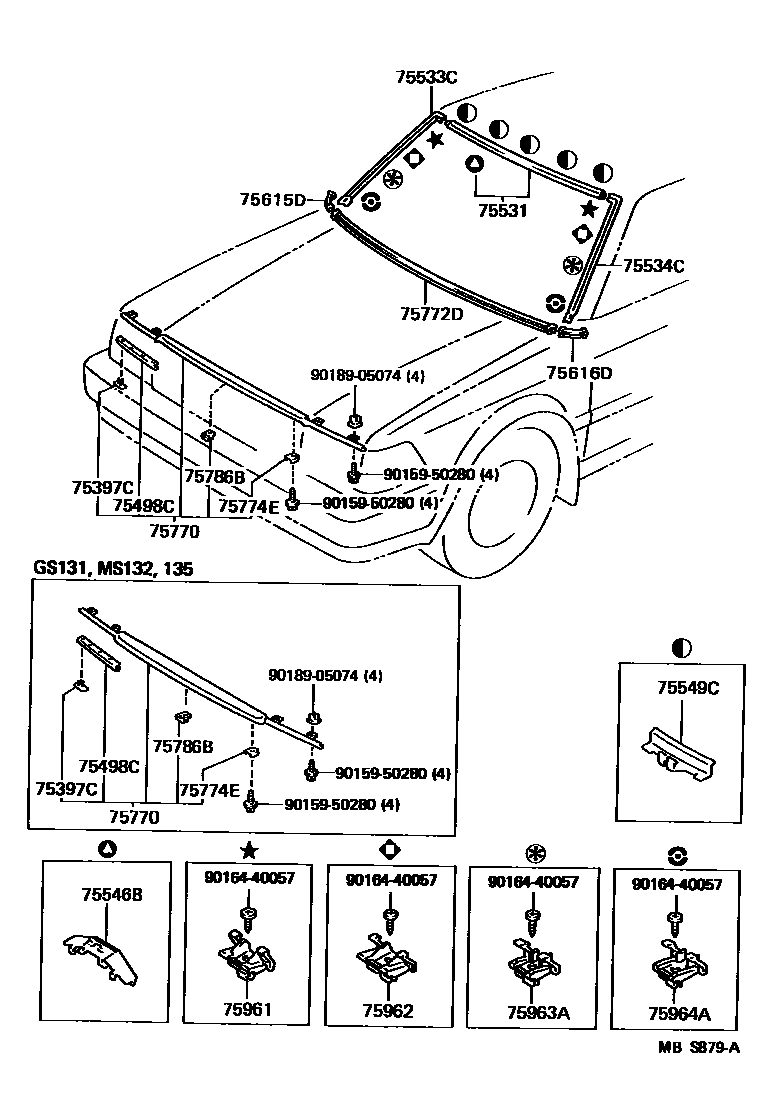

20 parts on this diagram · 3 diagrams in section
